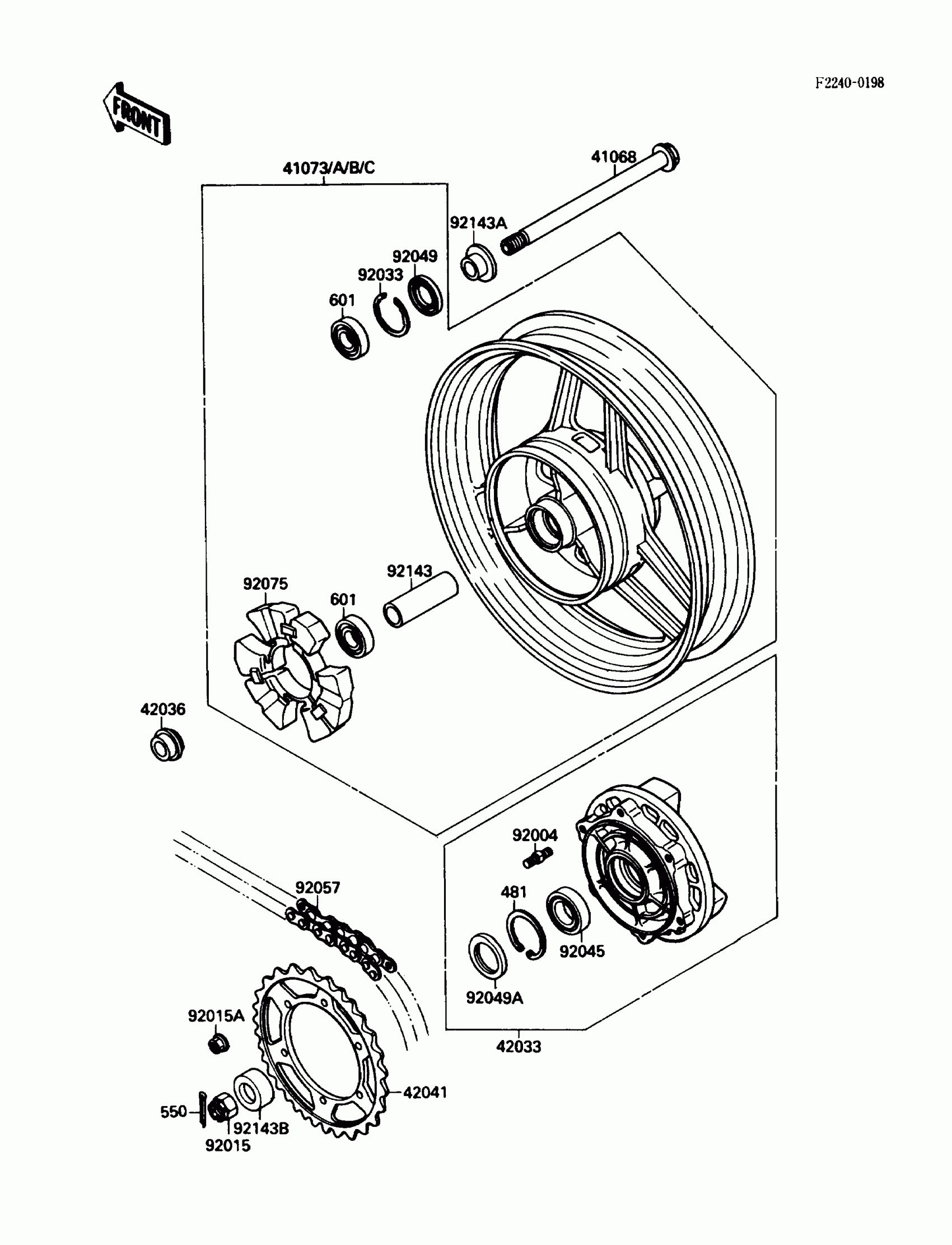

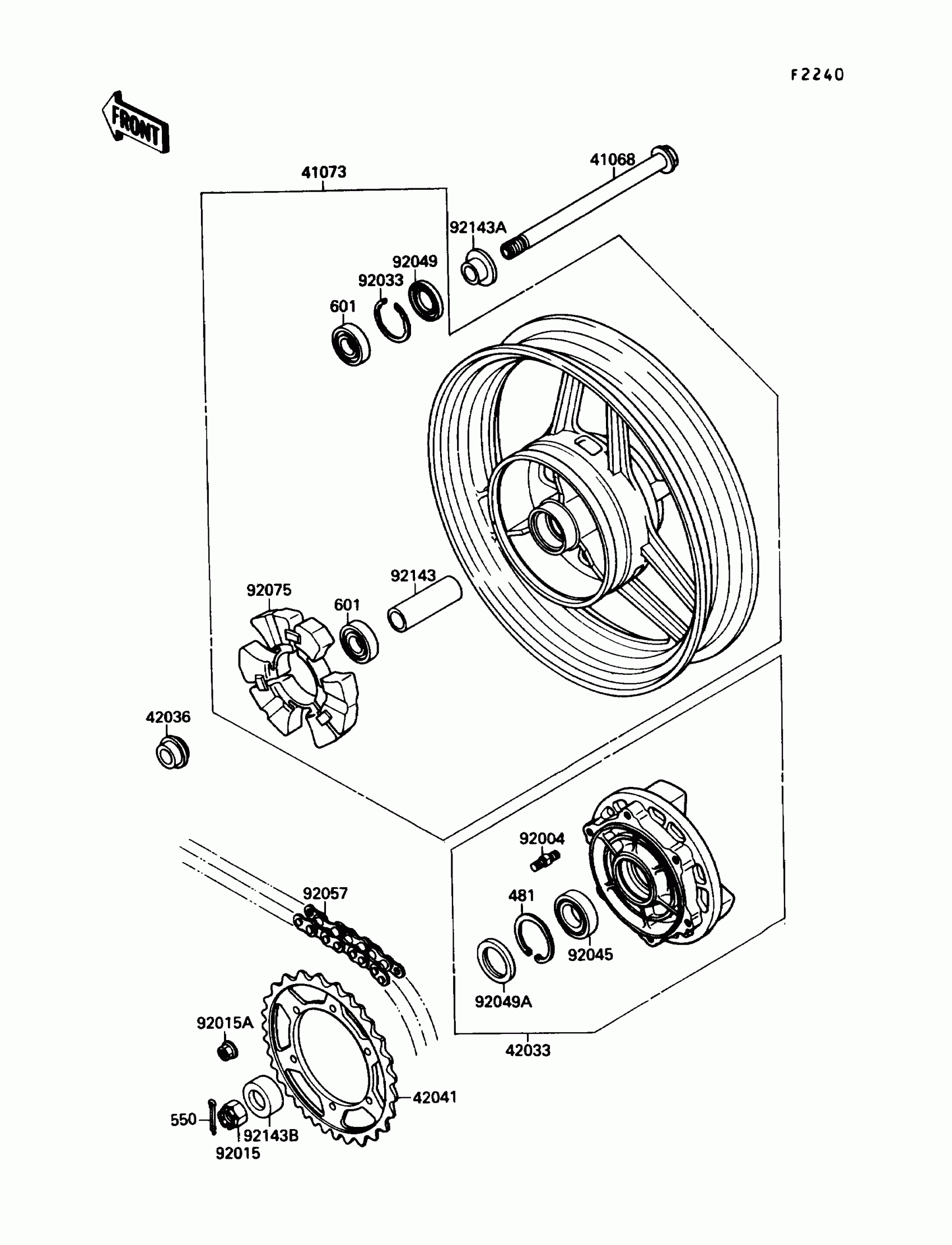

Kawasaki Ninja® 750R Rear Wheel/Chain Diagram

Description

Price

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

41068

AXLE,RR

41068-1234

$120.36

41073

WHEEL-ASSY,RR,F.RED

41073-1345-CW

$764.36

41073B

WHEEL-ASSY,RR,SILVER NO.1

41073-1345-T7

$697.21

42033

COUPLING-ASSY,RR HUB

42033-1122

$228.68

42036

SLEEVE,L=29

42036-1197

$26.07

42041

SPROCKET-HUB,47T

42041-1278

Unavailable

92004

STUD,10X19

92004-1151

$6.80

92015

NUT,CASTLE,18MM

42045-018

$7.01

92015A

NUT,FLANGED,10MM

92015-1502

$7.83

92033

RING-SNAP,47MM

92033-1042

$3.22

92045

BEARING-BALL,#7006

92045-1196

Unavailable

92049

SEAL-OIL,BJN28475

92049-1056

$9.95

92049A

SEAL-OIL,PJN40556

92049-1263

$16.81

92057

CHAIN,DRIVE,EK50MV-OX110L

92057-1221

$544.00

92075

DAMPER,REAR HUB SHOCK

92075-1908

Unavailable

92143

COLLAR,20.2X29X116

92143-1034

$43.35

92143A

COLLAR,L=23

92143-1042

$38.46

92143B

COLLAR,REAR AXLE,L=14

92143-1094

$33.68
