1987 Kawasaki Ninja® 750R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1987 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

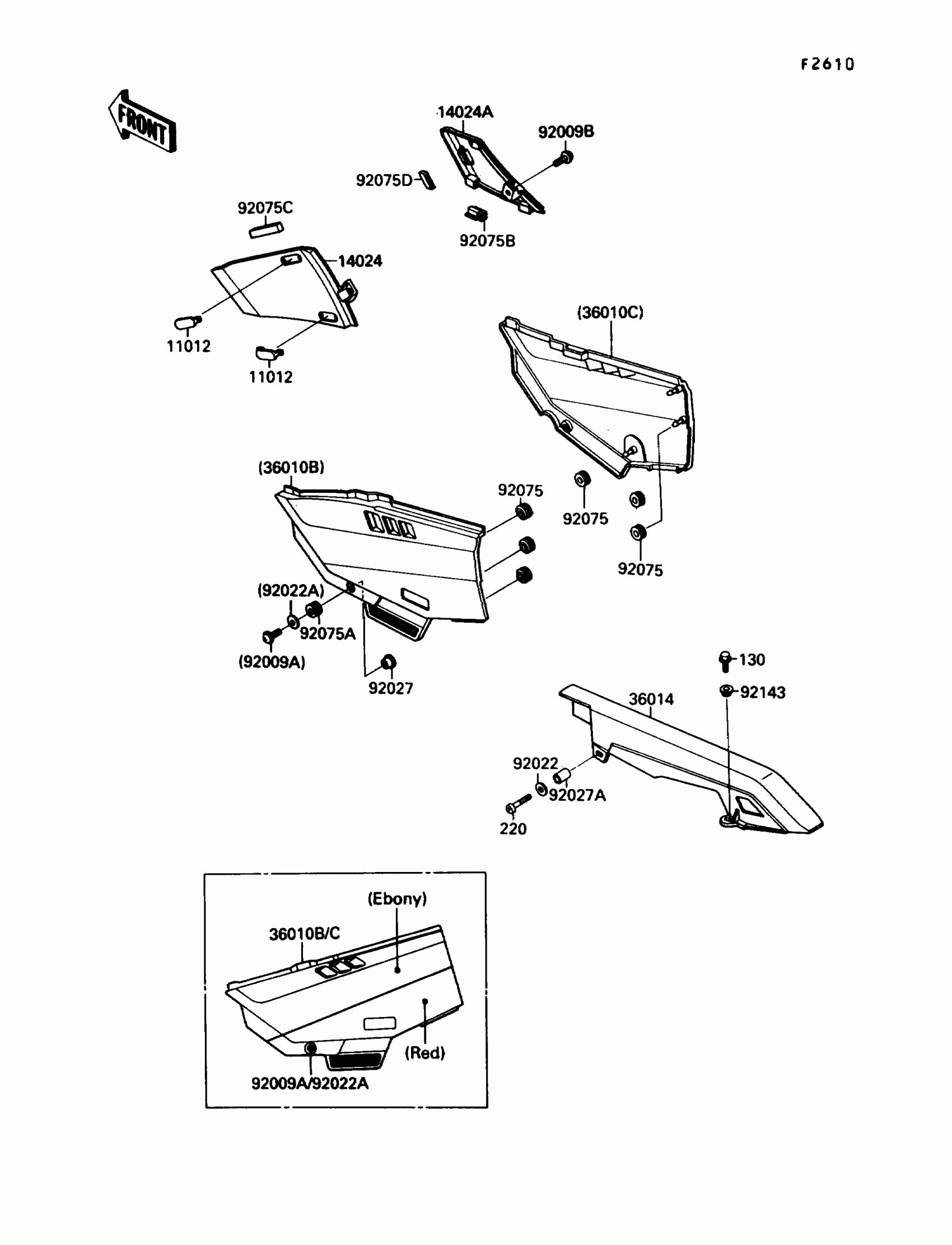

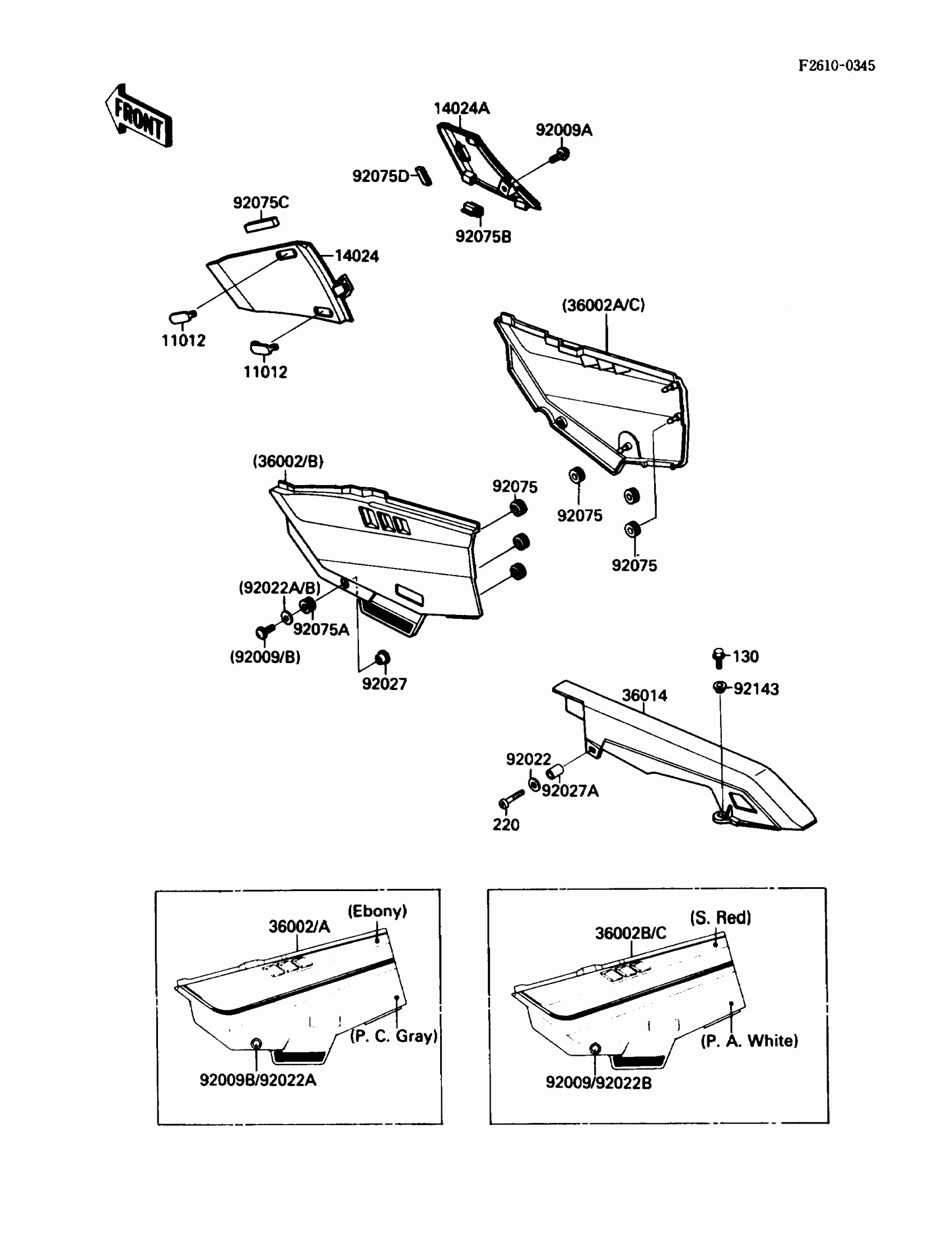

1987 Kawasaki Ninja® 750R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

220

SCREW-PAN-CROS,6X35,B

220C0635

1
Out of stock

11012

CAP,KNEEGRIP COVER,GOLD

11012-1551-BM

1
Out of stock

14024

COVER,KNEEGRIP,LH,M.BLACK

14024-1344-1A

1
Out of stock

14024A

COVER,KNEEGRIP,RH,M.BLACK

14024-1345-1A

1
Out of stock

36002

COVER-SIDE,LH,EBONY/P.C.GRAY

36002-5302-T4

1
Out of stock

36002A

COVER-SIDE,RH,EBONY/P.C.GRAY

36002-5303-T4

1
Out of stock

36002B

COVER-SIDE,LH,P.A.WHITE/S.RED

36002-5304-W2

1
Out of stock

36002C

COVER-SIDE,RH,P.A.WHITE/S.RED

36002-5305-W2

1
Out of stock

36014

CASE-CHAIN

36014-1142

1
Out of stock

92009

SCREW,6X18

92009-1111

1
Out of stock

92009A

SCREW,6X14

92009-1288

1
Out of stock

92009B

SCREW,6X18,BLACK

92009-1306

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92027

COLLAR,L=9.1,WHITE

92027-1795

1
Out of stock

92027A

COLLAR,6.8X10X20

92027-1856

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

92075B

DAMPER,KNEEGRIP COVER,LWR

92075-1874

1
Out of stock

92075C

DAMPER

92075-1914

1
Out of stock

92075D

DAMPER,KNEEGRIP COVER,FR

92075-1923

1
Out of stock

92143

COLLAR,L=6.6

92143-1088

1
Out of stock

92022A

WASHER,6.5X20X1.6,BLACK

92022-1619

1
Out of stock

92022B

WASHER,6.5X20X1.6,WHITE

92022-193

1
Out of stock
