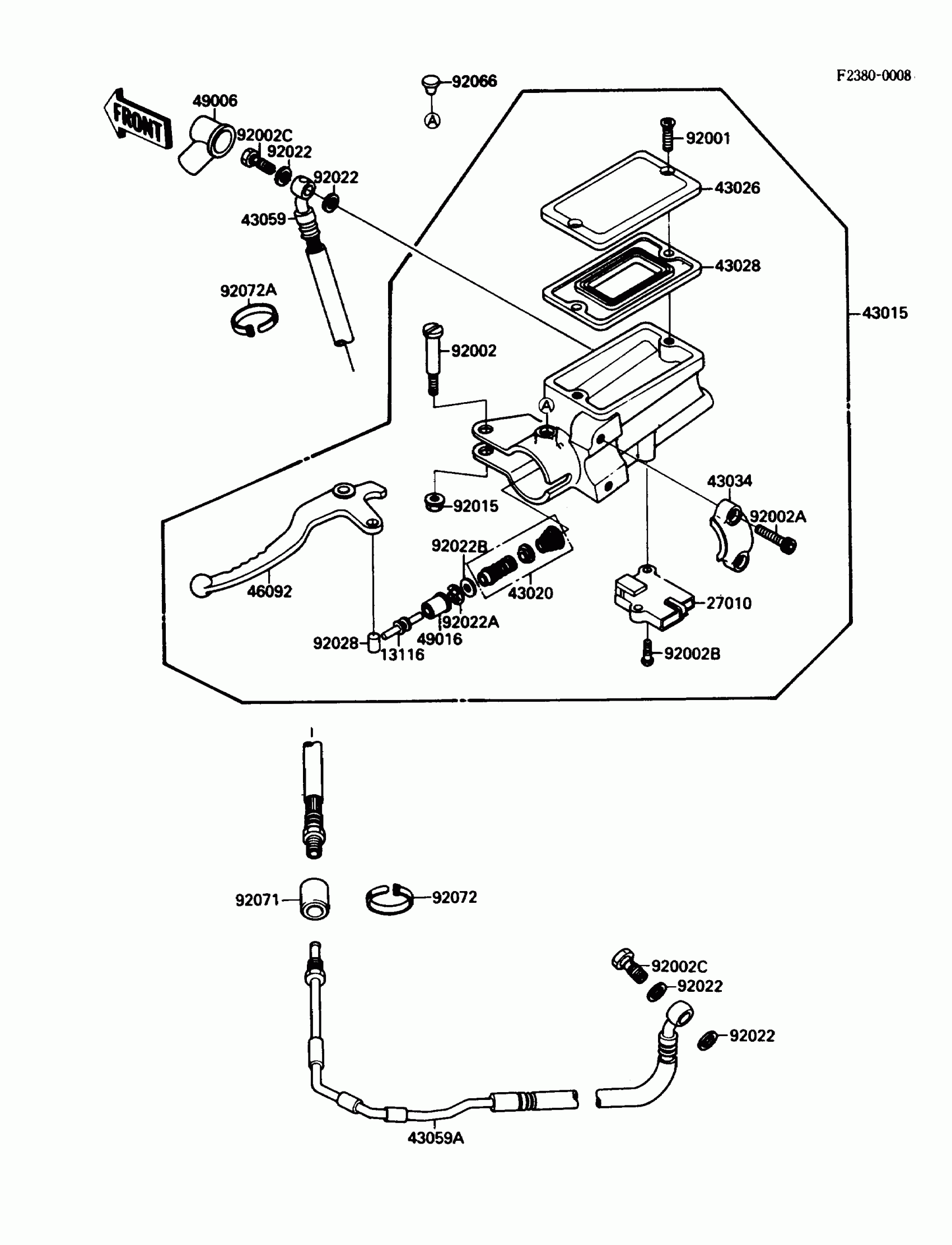

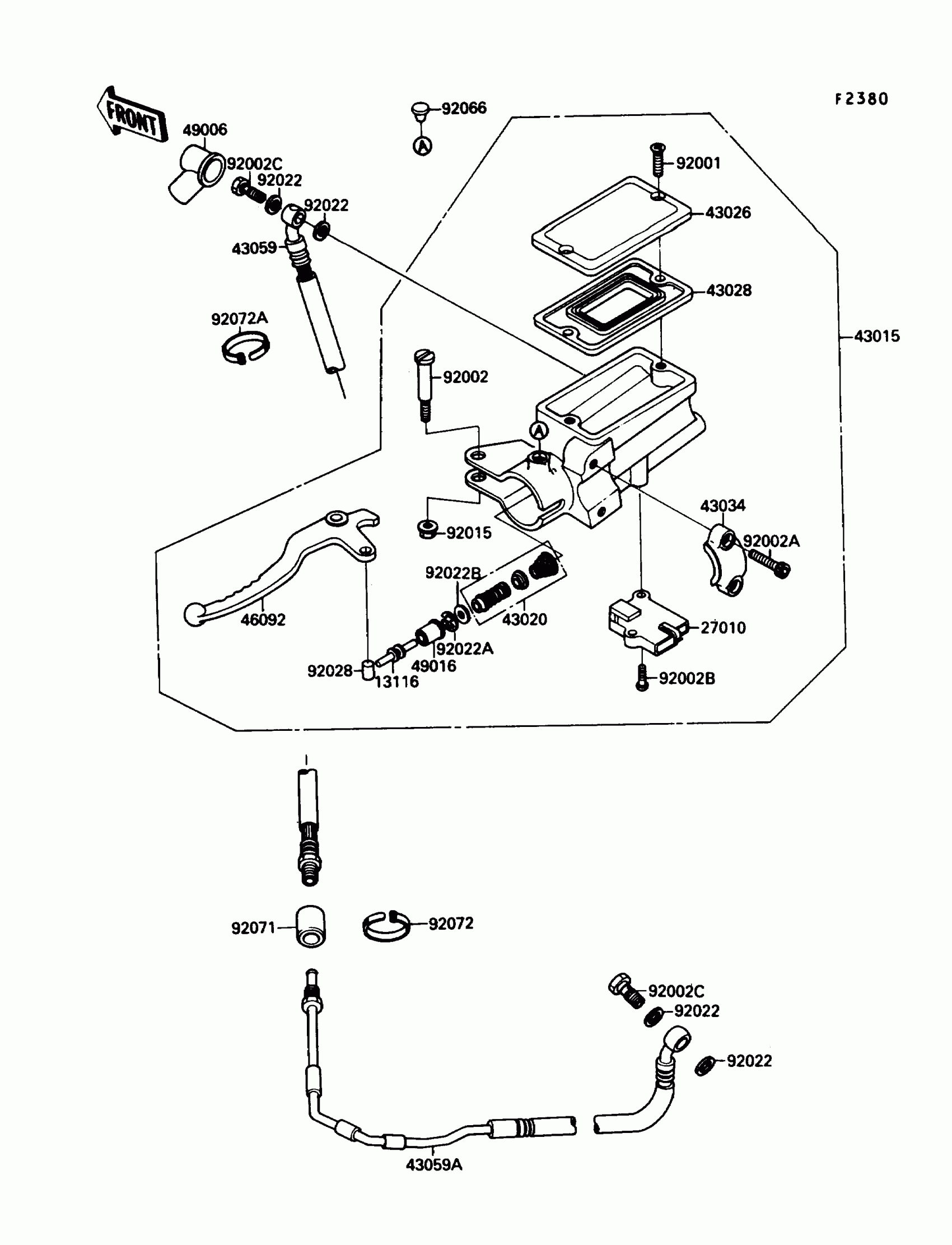

Kawasaki Ninja® 750R Clutch Master Cylinder Diagram

#

Description
Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$33.39

27010

SWITCH,CLUTCH

27010-1171

$32.18

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1307

$429.97

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$58.51

43026

CAP-BRAKE,FR

43026-1052

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1054

$36.55

43059

HOSE-BRAKE,CLUTCH

43059-1332

Unavailable

43059A

HOSE-BRAKE,CLUTCH

43059-1377

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1130

$24.39

49006

BOOT,DUST

49006-1040

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

SCREW,5MM,BLACK

92001-1727

$3.14

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002B

SCREW,4X16

92002-1325

$7.83

92002C

BOLT,OIL,L=23

92002-1888

$4.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

CIRCLIP

92022-1605

$3.81

92022B

WASHER,PISTON

92022-1606

$3.57

92028

BUSHING,MASTER CYLINDER

92028-1310

$11.20

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92071

GROMMET

92071-1143

$5.66

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=365

92072-1197

$7.71
