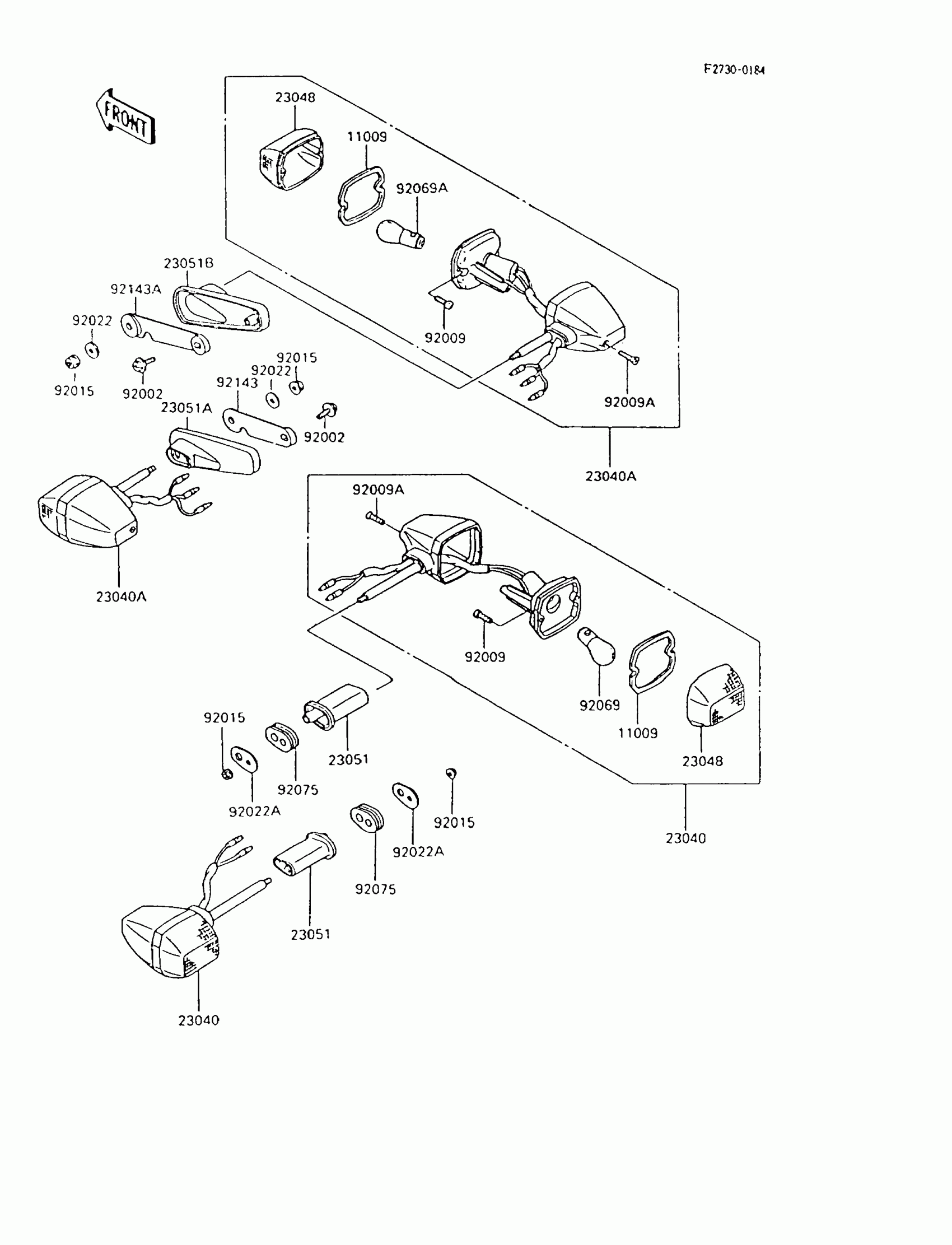

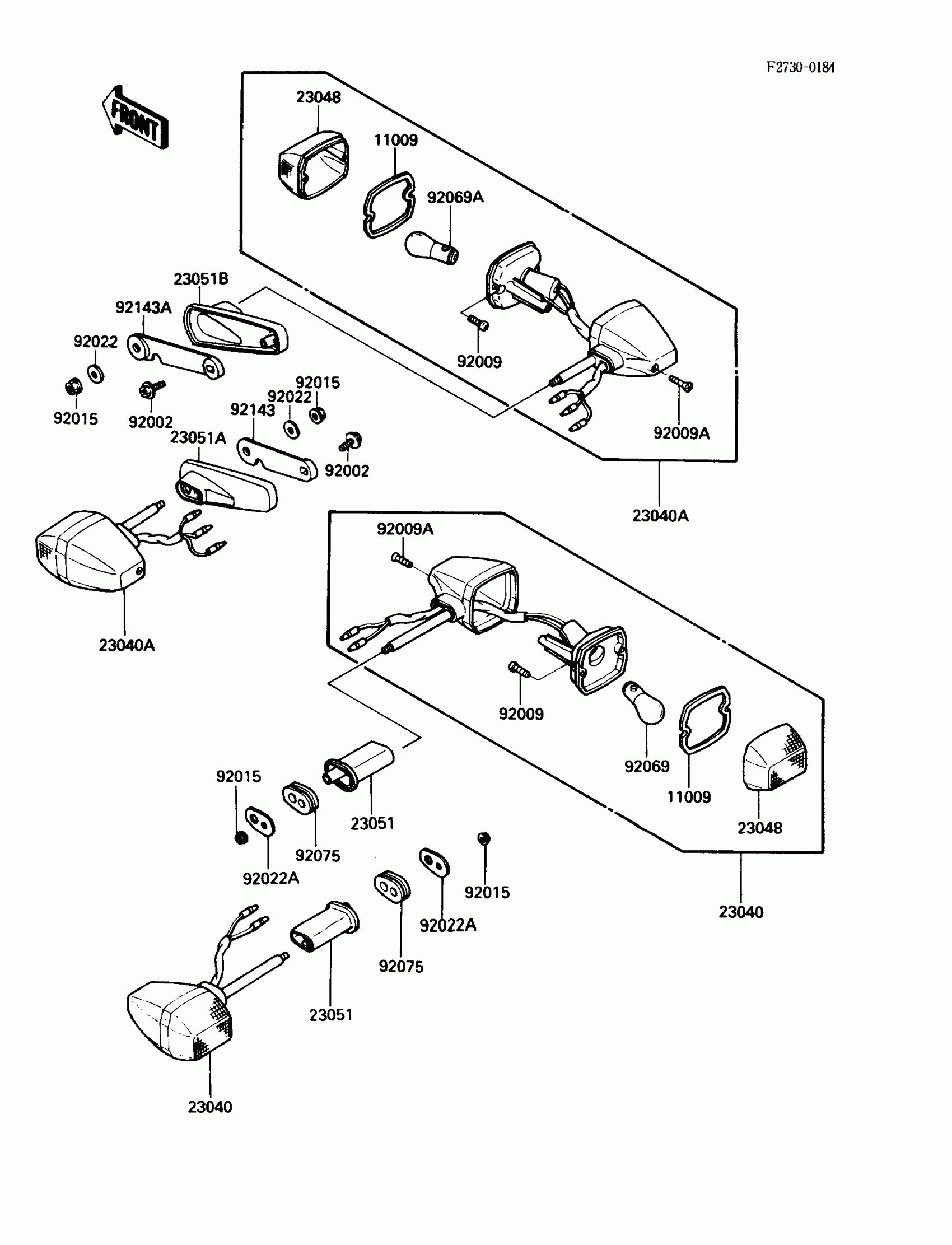

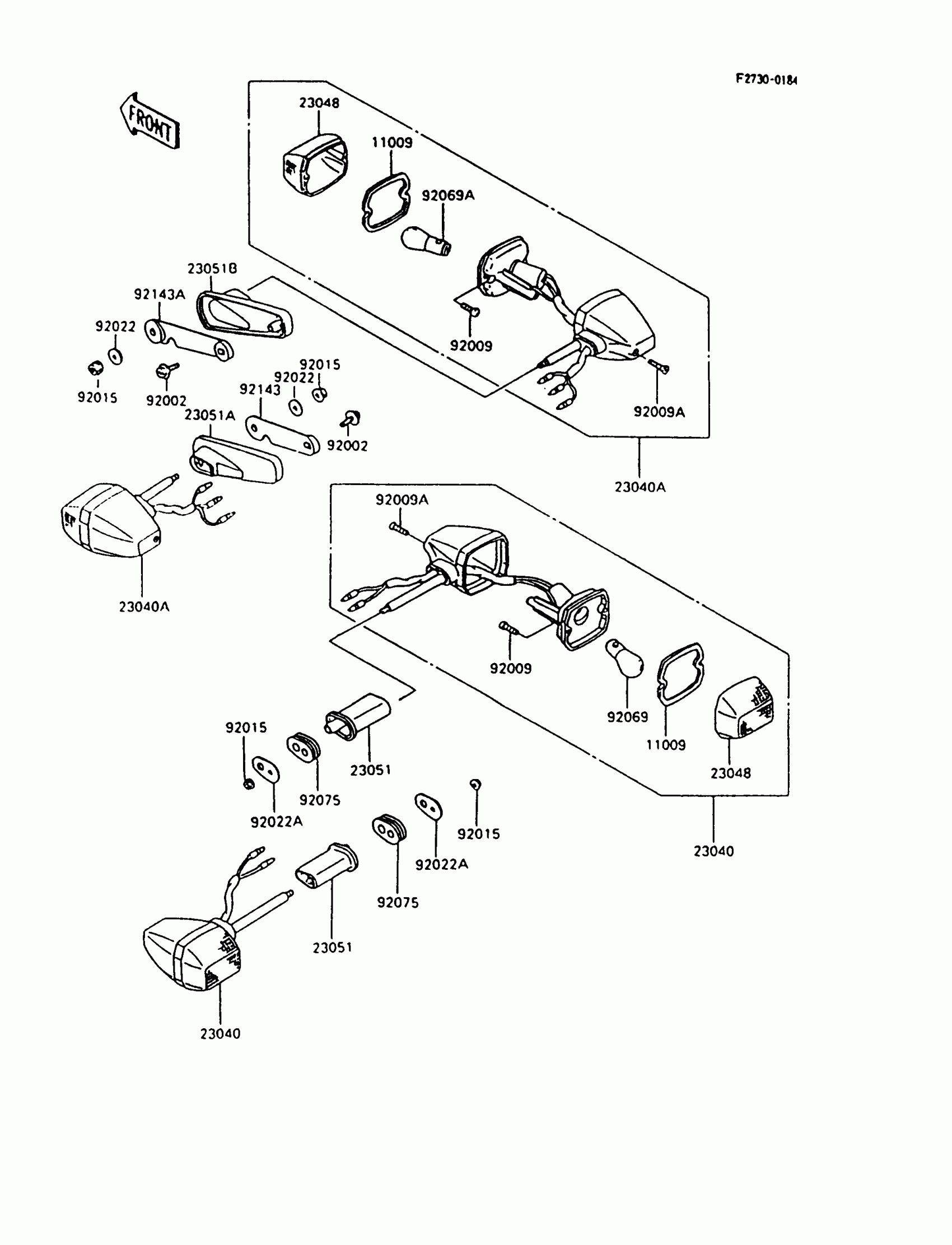

Kawasaki Ninja® 600R Turn Signals Diagram

Description

Price

11009

GASKET,SIGNAL LAMP

11009-1402

$4.18

23040

LAMP-SIGNAL,RR

23040-1108

$61.35

23040A

LAMP-SIGNAL,FR

23040-1157

Unavailable

23048

LENS-SIGNAL LAMP

23048-1054

$7.96

23051

BRACKET-SIGNAL LAMP

23051-1165

$22.73

23051A

BRACKET-SIGNAL LAMP,FR,LH

23051-1185

Unavailable

23051B

BRACKET-SIGNAL LAMP,FR,RH

23051-1186

Unavailable

92002

BOLT,TAPPING,5X16

92002-1921

Unavailable

92009

SCREW,TAPPING,3X16

92009-1115

$1.30

92009A

SCREW,TAPPING,4X20

92009-1304

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92022A

WASHER,SIGNAL LAMP

92022-1672

$4.24

92069

BULB,12V 32CP(23W)

92069-055

$3.95

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

92075

DAMPER,SIGNAL LAMP

92075-1698

$7.30

92143

COLLAR,SIGNAL LAMP,FR,LH

92143-1099

Unavailable

92143A

COLLAR,SIGNAL LAMP,FR,RH

92143-1102

Unavailable
