1989 Kawasaki Ninja® 600R Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

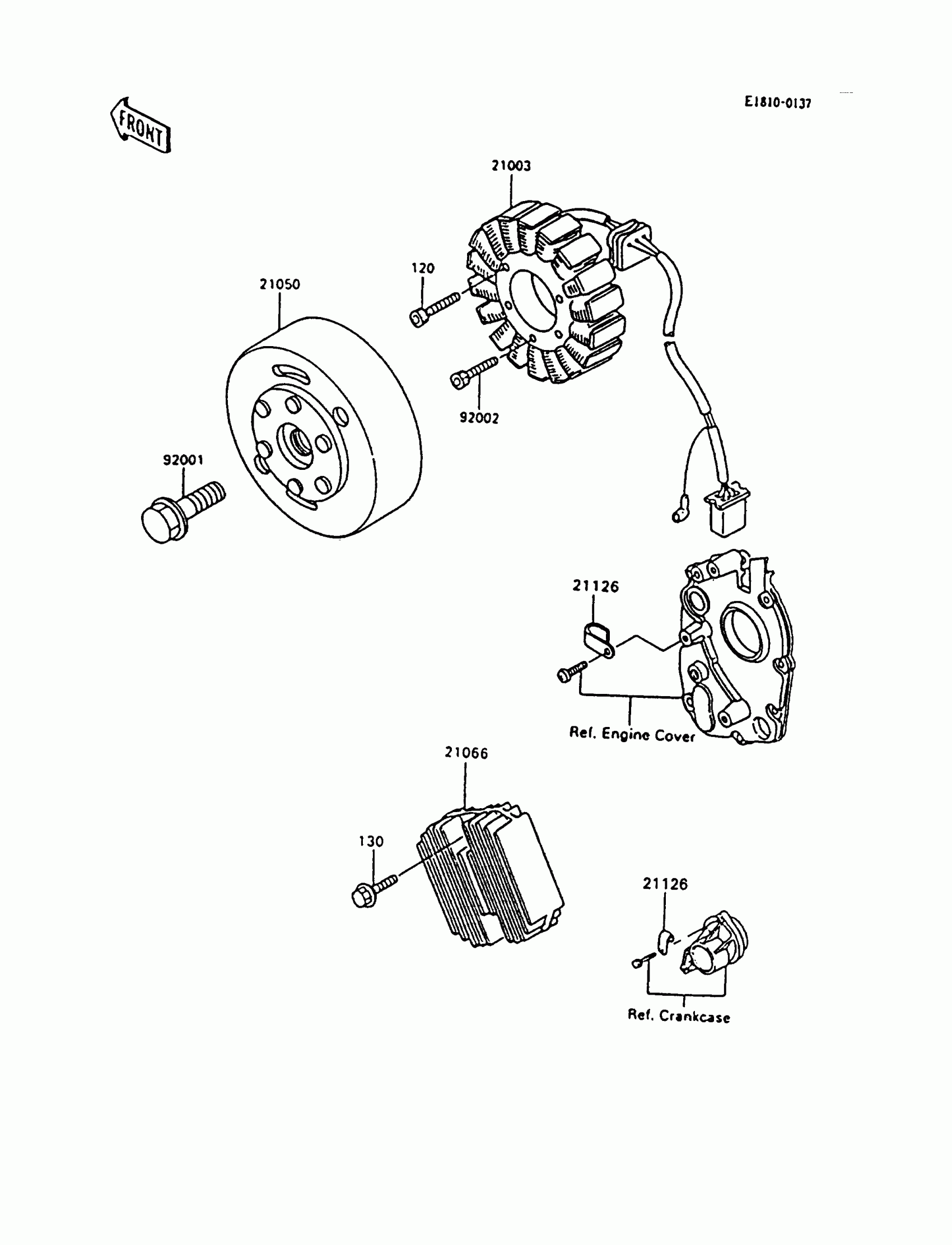

1989 Kawasaki Ninja® 600R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1124

1
Out of stock

21050

FLYWHEEL

21050-1111

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-1055

1

$245.39

In stock

92001

BOLT,FLANGED,12X40

92001-1146

1

$9.58

In stock

92002

BOLT,6X28

92002-1537

1
Out of stock

92037

1

$3.75

In stock

120

BOLT-SOCKET,6X28

120P0628

1
Out of stock

180

BOLT-UPSET-WS

180B0620

1
Out of stock
