Partiron

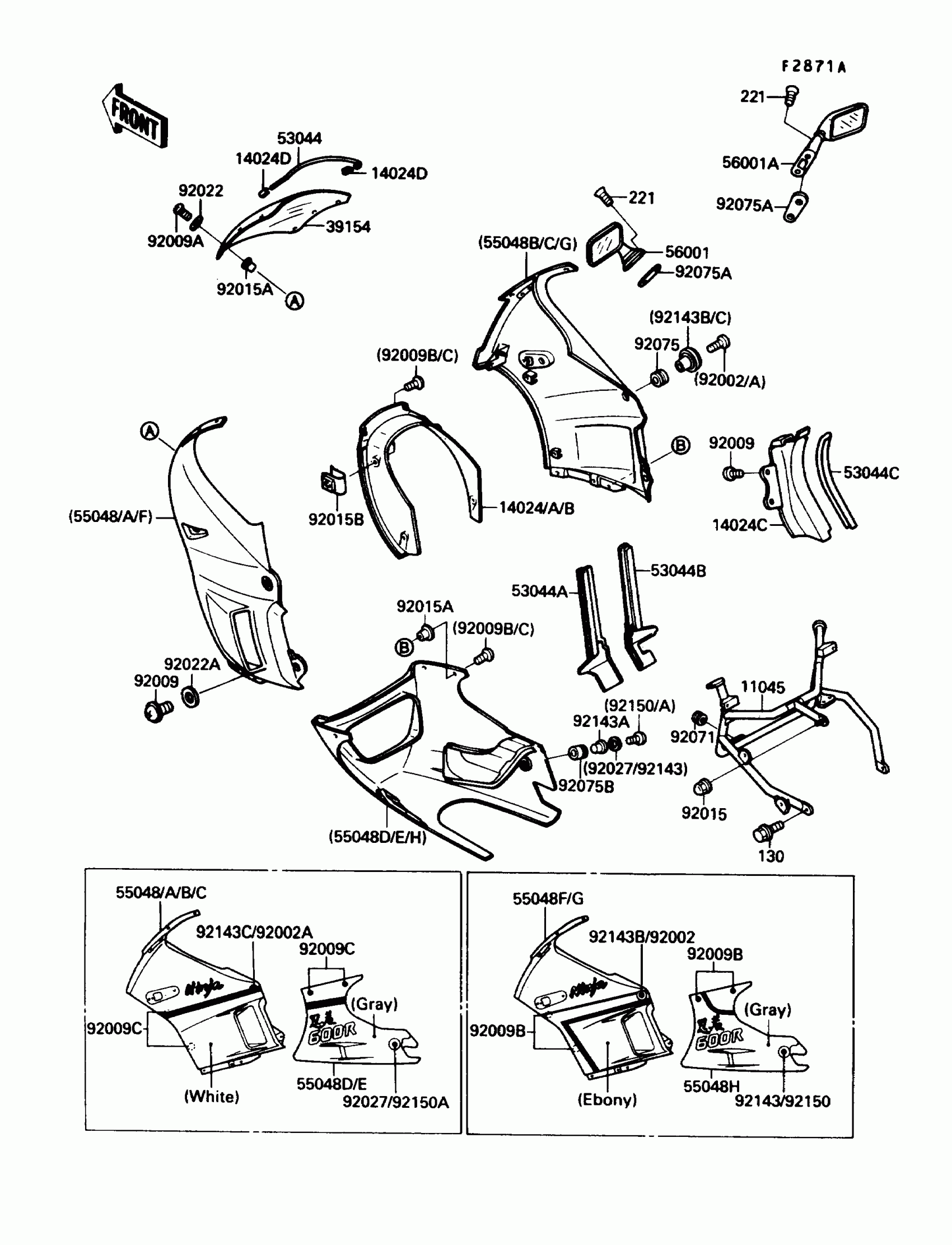

Kawasaki Ninja® 600R Cowling (ZX600-C2) Diagram

#

Description
Price

11045

BRACKET,COWLING

11045-1538

Unavailable

14024

COVER,HEAD LAMP,P.A.WHITE

14024-1408-GK

Unavailable

14024A

COVER,HEAD LAMP,EBONY

14024-1408-H8

Unavailable

14024B

COVER,HEAD LAMP,P.A.WHITE

14024-1408-R1

Unavailable

14024C

COVER,COWLING,INNER,RH

14024-1538

Unavailable

14024D

COVER,TRIM END

14025-1756

$6.05

39154

WINDSHIELD

39154-1107

Unavailable

53044

TRIM,WINDSHIELD

53044-1130

Unavailable

53044A

TRIM,COWLING,LH

53044-1193

Unavailable

53044B

TRIM,COWLING,RH

53044-1194

Unavailable

53044C

TRIM

53044-1198

$15.05

55048

COWLING.,UPP,LH,P.A.WHITE

55048-5024-GK

Unavailable

55048A

COWLING.,UPP,LH,P.A.WHITE

55048-5024-R1

$631.23

55048B

COWLING.,UPP,RH,P.A.WHITE

55048-5025-GK

Unavailable

55048C

COWLING.,UPP,RH,P.A.WHITE

55048-5025-R1

$424.31

55048D

COWLING.,LWR,WHITE/GRAY

55048-5026-DA

$553.94

55048E

COWLING.,LWR,WHITE/GRAY

55048-5026-GJ

$268.42

55048F

COWLING.,UPP,LH,EBONY

55048-5027-H8

$630.56

55048G

COWLING.,UPP,RH,EBONY

55048-5028-H8

$630.56

55048H

COWLING.,LWR,EBONY/GRAY

55048-5029-T4

$520.14

56001

MIRROR-ASSY,LH

56001-1317

Unavailable

56001A

MIRROR-ASSY,RH

56001-1318

$95.72

92002

BOLT,SOCKET,6X18,BLACK

92002-1514

$4.93

92002A

BOLT,SOCKET,6X18,WHITE

92002-1889

$5.59

92009

SCREW,6X14

92009-1288

$3.12

92009A

SCREW,5X16,BLACK

92009-1301

$2.51

92009B

SCREW,5X20,BLACK

92009-1453

$3.16

92009C

SCREW,5X20,WHITE

92009-1491

$4.51

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92015A

NUT,WELL,5MM

92015-1640

$5.81

92015B

NUT,5MM

92015-1710

$4.93

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92022A

WASHER,6.5X16X1.0

92022-1654

$2.92

92027

COLLAR,L=6.5,WHITE

92027-1886

Unavailable

92071

GROMMET

92071-056

$3.39

92075

DAMPER

92075-1634

$3.72

92075A

DAMPER,MIRROR

92075-1929

$6.73

92075B

DAMPER

92075-1936

$4.81

92143

COLLAR,L=6.5,BLACK

92143-1086

Unavailable

92143A

COLLAR,L=19.6

92143-1100

$6.20

92143B

COLLAR,BLACK

92143-1226

$9.51

92143C

COLLAR,WHITE

92143-1273

$13.83

92150

BOLT,SOCKET,6X30,BLACK

92002-1945

$4.37

92150A

BOLT,SOCKET,6X30,WHITE

92002-1998

Unavailable

130

BOLT-FLANGED,8X12,BLACK

130C0812

Unavailable

221

SCREW-CSK-CROSS

221C0630

Unavailable
