1989 Kawasaki Ninja® 600R Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

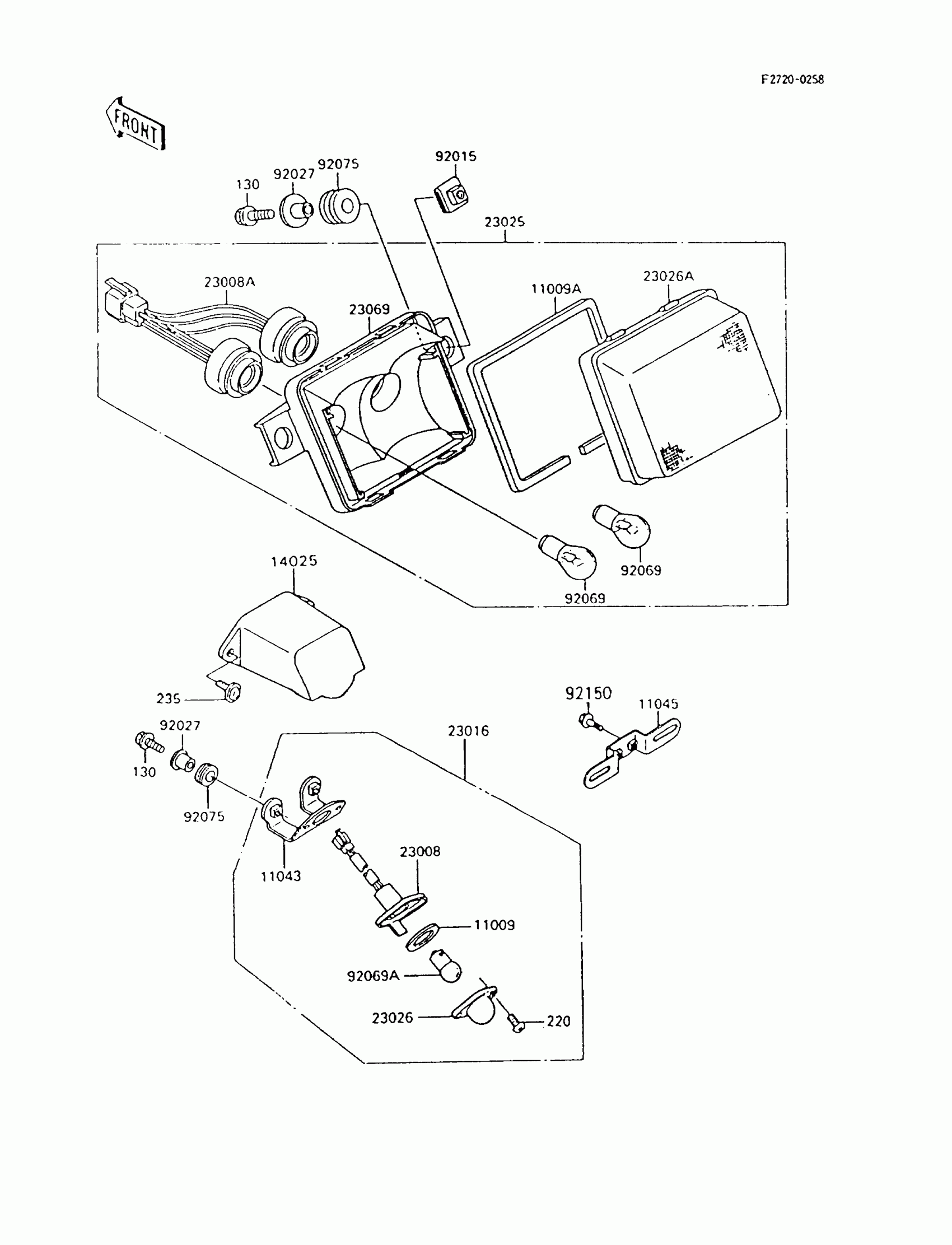

1989 Kawasaki Ninja® 600R Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.14

In stock

11009A

GASKET,TAIL LAMP LENS

11009-1662

1
Out of stock

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

1
Out of stock

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

14024

1

$18.66

In stock

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

1
Out of stock

23008A

SOCKET-ASSY,TAIL LAMP

23008-1264

1
Out of stock

23016

1

$77.63

In stock

23025

LAMP-TAIL

23025-1166

1
Out of stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

23026A

LENS,TAIL LAMP

23026-1088

1
Out of stock

23069

BODY-TAIL LAMP

23069-1078

1
Out of stock

92002

BOLT,6X14

92002-1351

1

$3.43

In stock

92015

NUT,6MM

92015-1094

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

130

BOLT-FLANGED,6X25

130D0625

1
Out of stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock

235

SCREW-PAN-WP-CROS,6X16

235C0616

1
Out of stock
