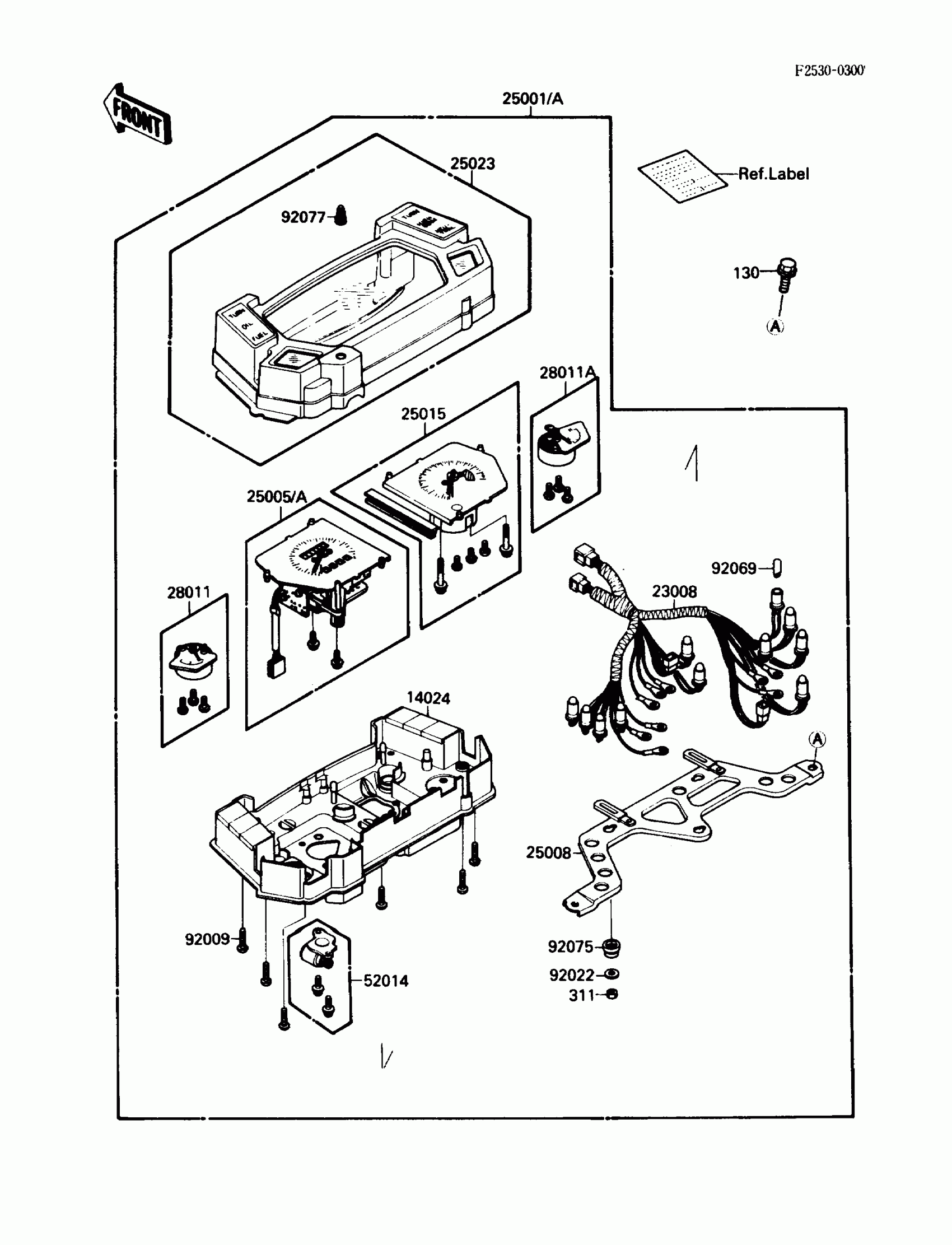

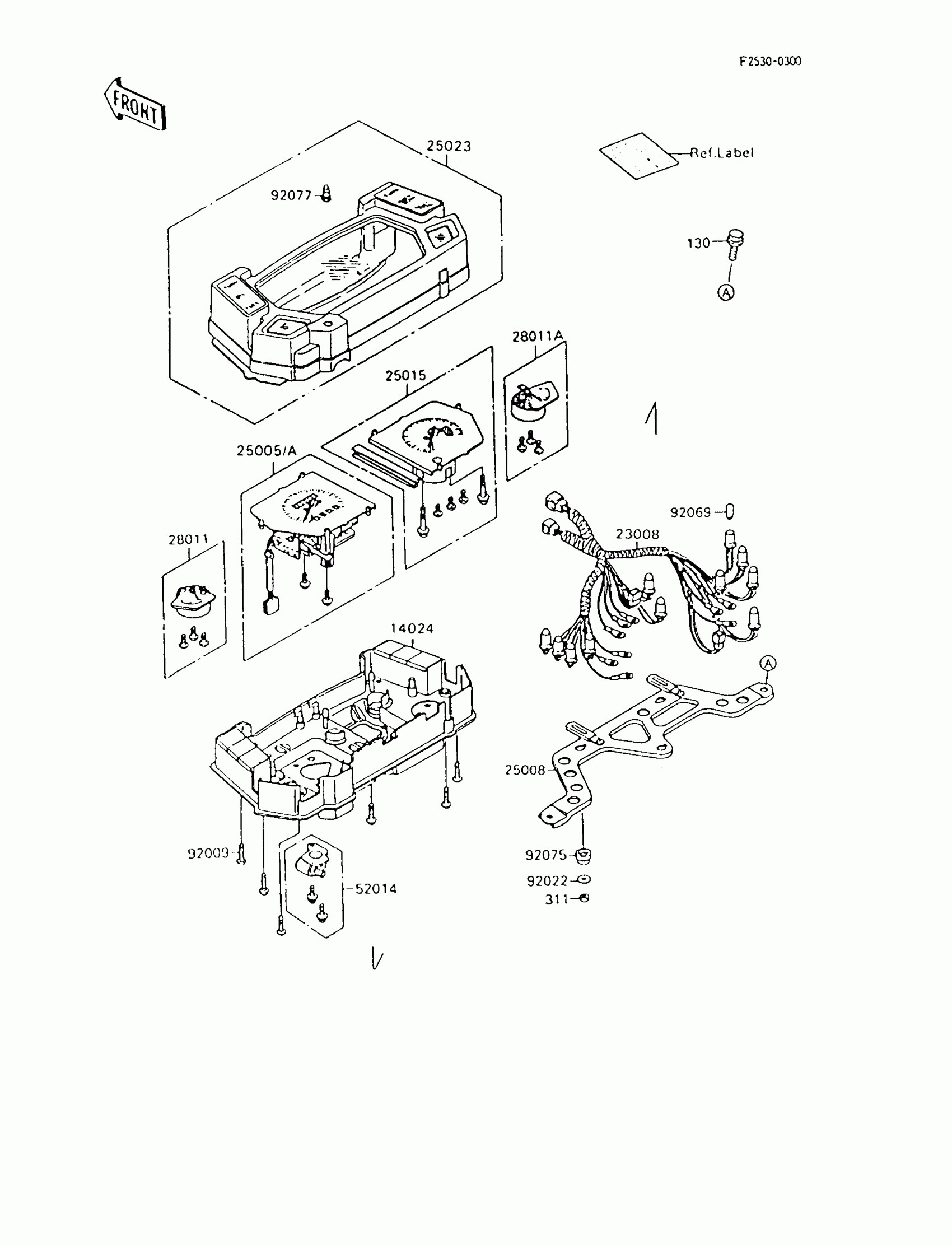

1989 Kawasaki Ninja® 600R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 600R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER HOUSING

14024-1438

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1335

1

$128.94

In stock

25001

METER-ASSY,MPH

25001-1685

1

$1,240.62

In stock

25001A

METER-ASSY,KPH

25001-1686

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1354

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1355

1
Out of stock

25008

BRACKET-METER

25008-1138

1
Out of stock

25015

TACHOMETER,X1000R/MIN

25015-1269

1
Out of stock

25023

COVER-METER CASE,UPP

25023-1154

1
Out of stock

28011

METER,FUEL

28011-1092

1
Out of stock

28011A

METER,TEMP

28011-1098

1
Out of stock

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

1
Out of stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92075

DAMPER

92075-1805

1

$5.19

In stock

92077

1

$7.88

In stock

130

BOLT-FLANGED,6X14

130C0614

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock
