1989 Kawasaki Ninja® 600R Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

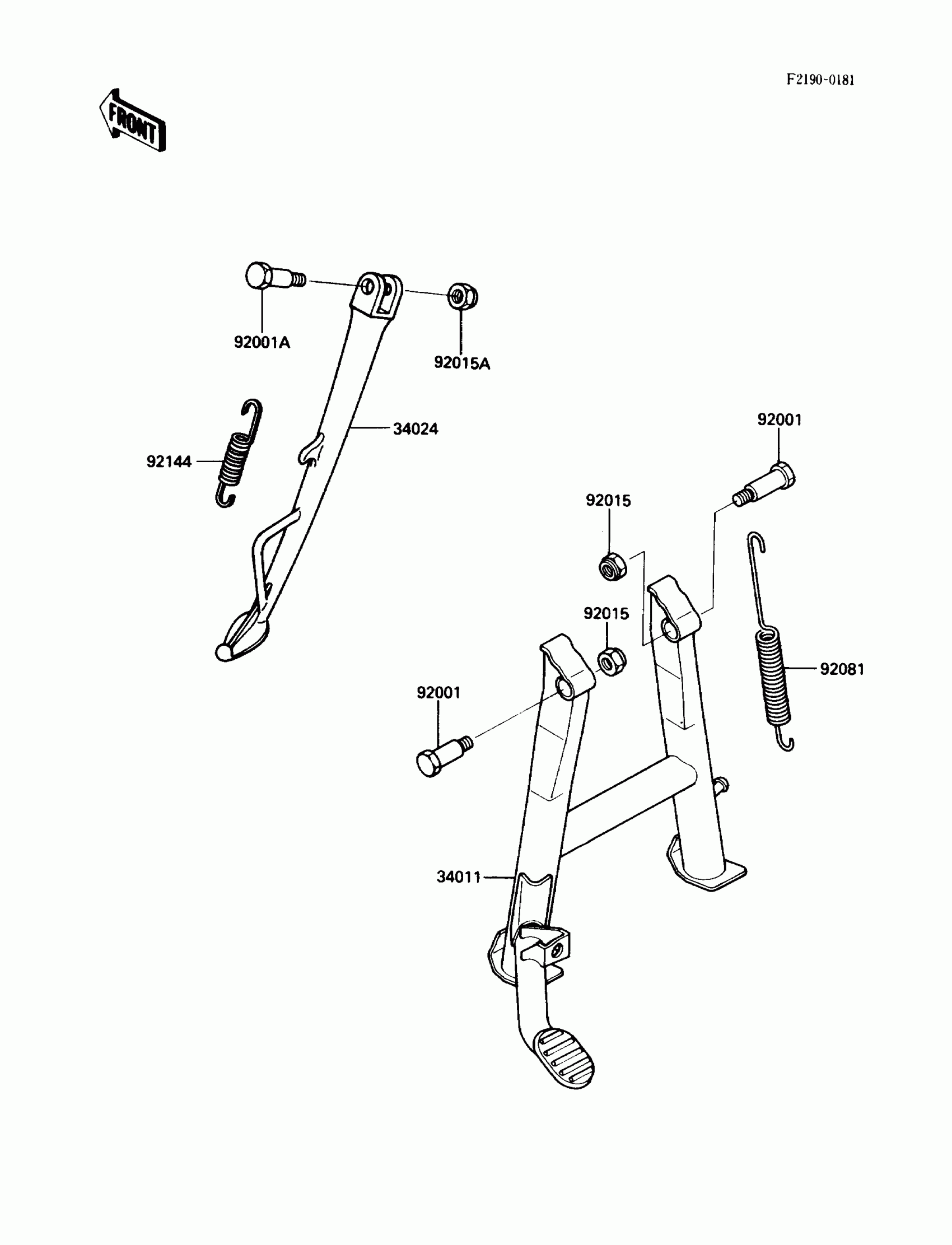

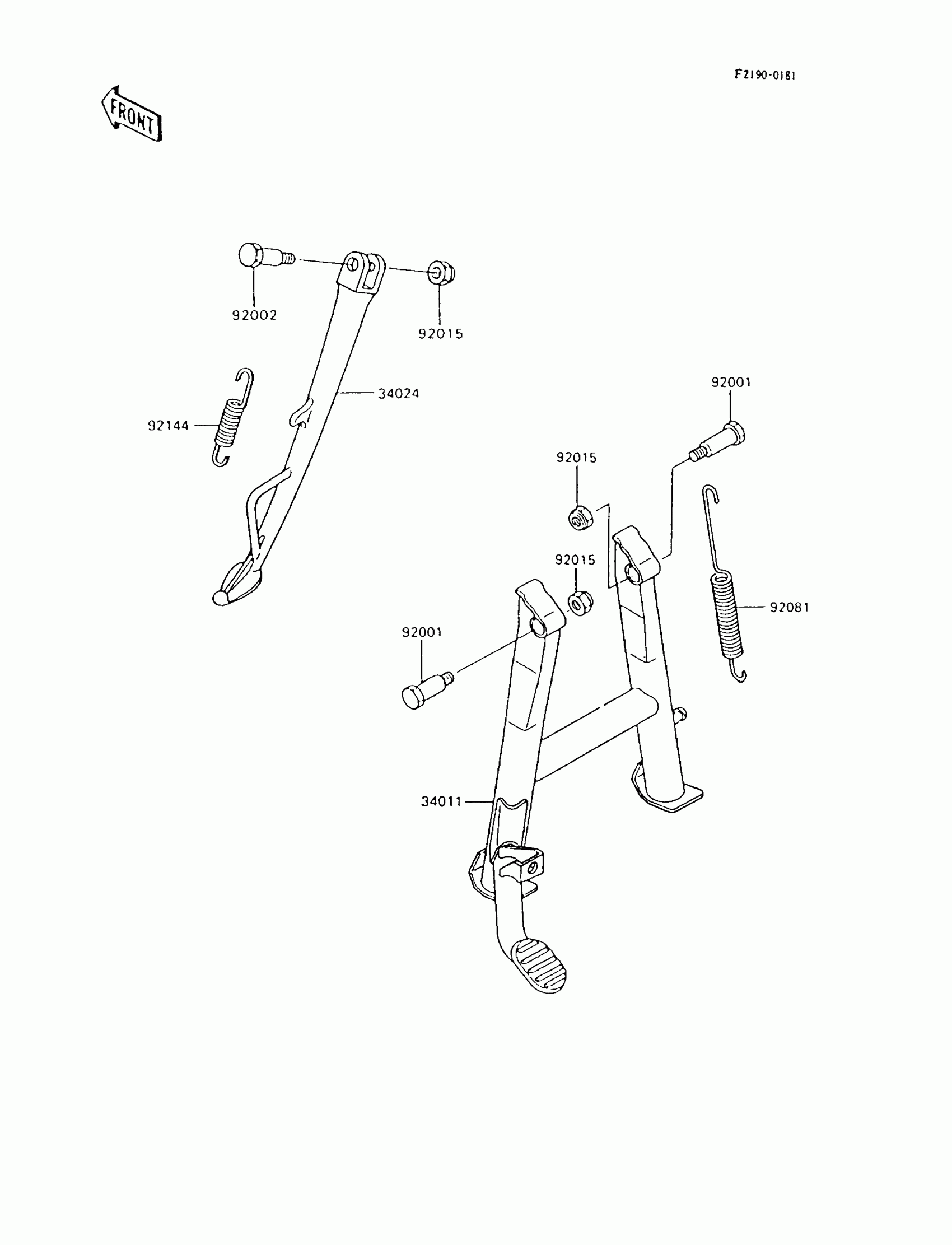

1989 Kawasaki Ninja® 600R Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1136

1
Out of stock

34024

STAND-SIDE

34024-1228

1
Out of stock

92001

BOLT,CENTER STAND

92001-1214

1

$9.12

In stock

92001A

BOLT,SIDE STAND

92001-1788

1

$7.86

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92015A

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,CENTER STAND

92081-1834

1
Out of stock

92144

SPRING,SIDE STAND

92144-1127

1

$11.48

In stock
