1989 Kawasaki Ninja® 600R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

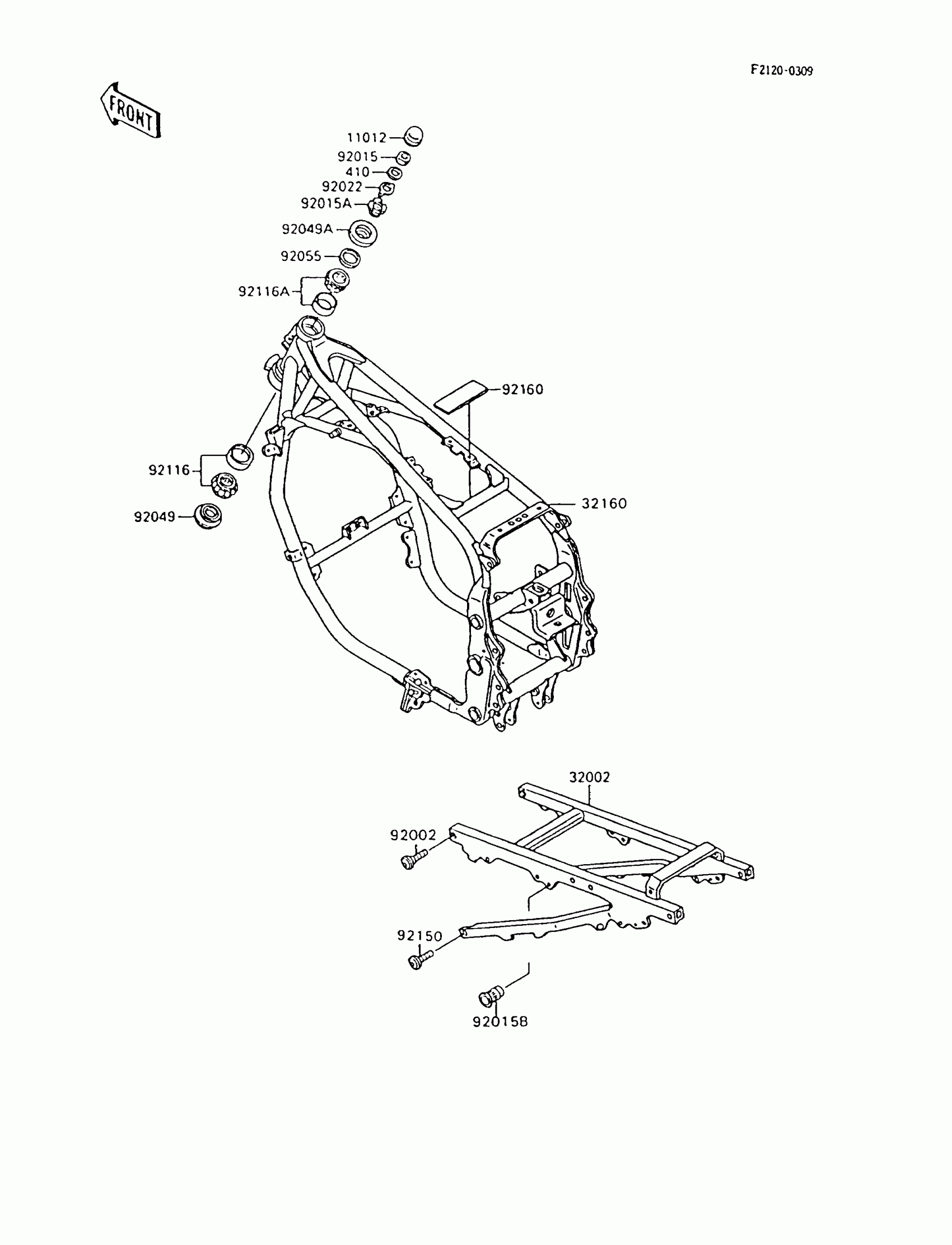

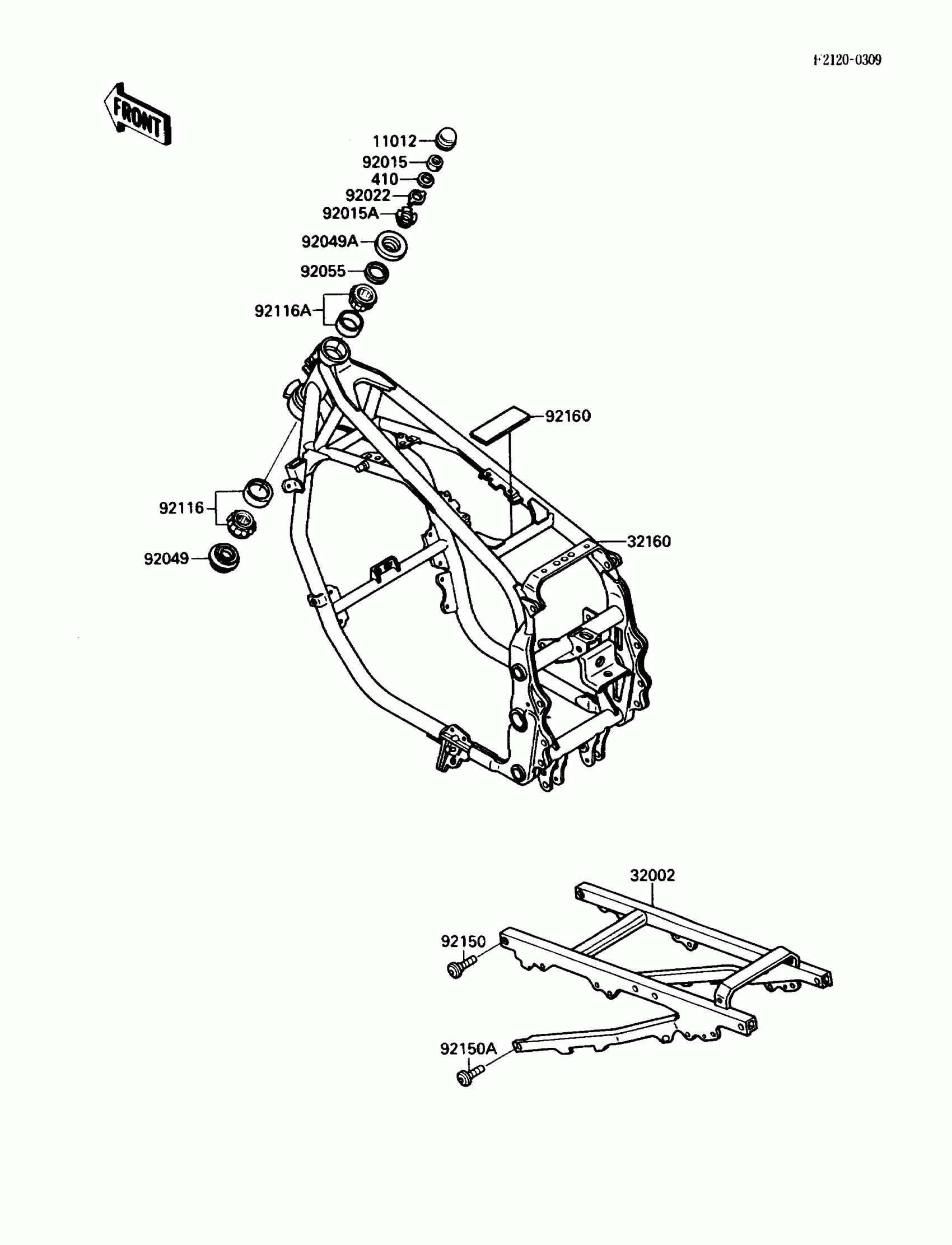

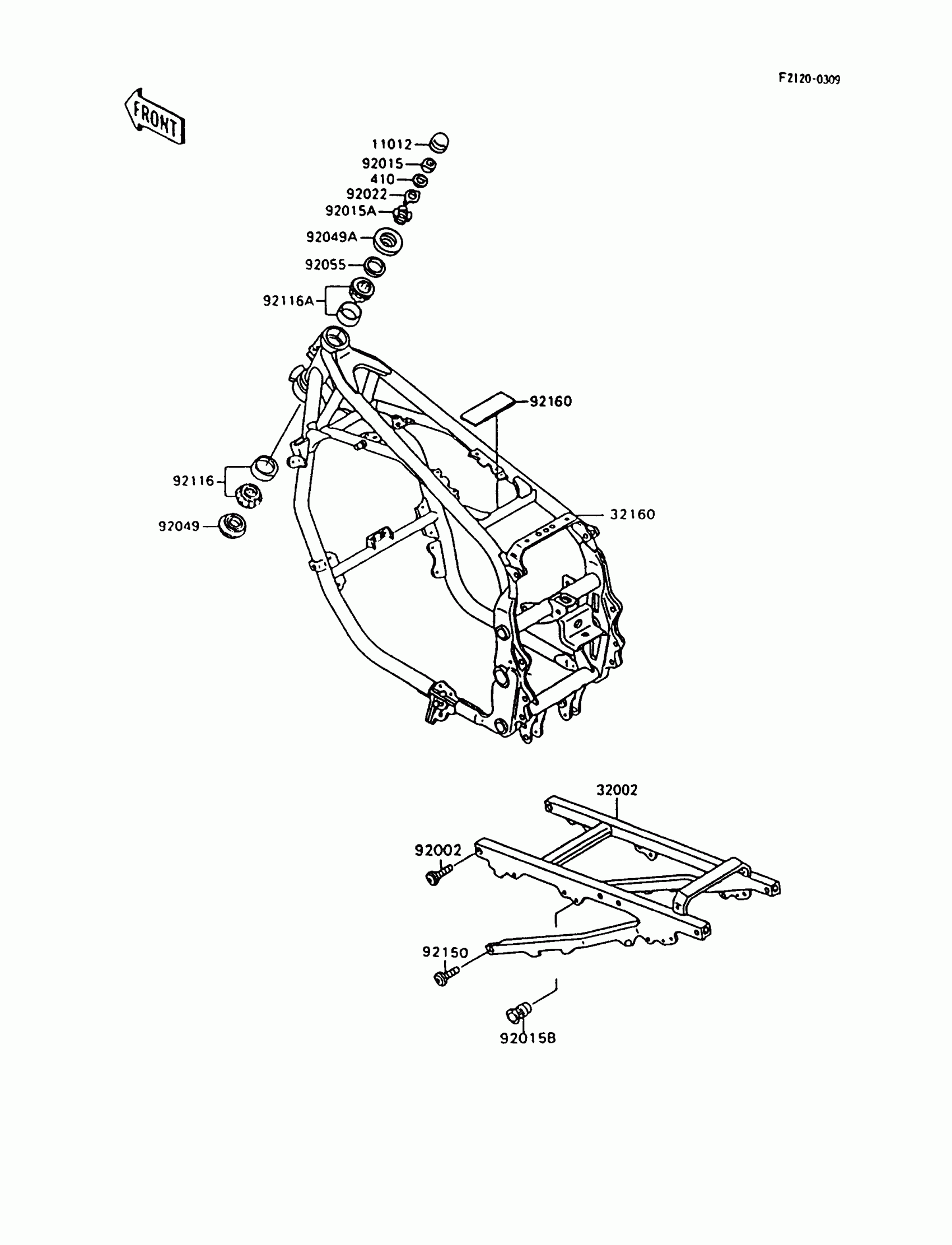

1989 Kawasaki Ninja® 600R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

11012-1442

1
Out of stock

32002

FRAME-COMP,AL,RR

32002-1938

1
Out of stock

32160

FRAME-COMP,FR

32160-1005

1

$1,460.35

In stock

92015

NUT,18MM

92015-1404

1

$21.97

In stock

92015A

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92022

1

$7.49

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1

$3.72

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

92150

BOLT,SOCKET,8X32

92002-1927

1
Out of stock

92150A

BOLT,SOCKET,6X92

92150-1928

1
Out of stock

92160

DAMPER

92160-1075

1

$5.71

In stock

410

W-PLAIN-S

410F1800

1
Out of stock
← Footrests Frame Fittings →
