1989 Kawasaki Ninja® 600R Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

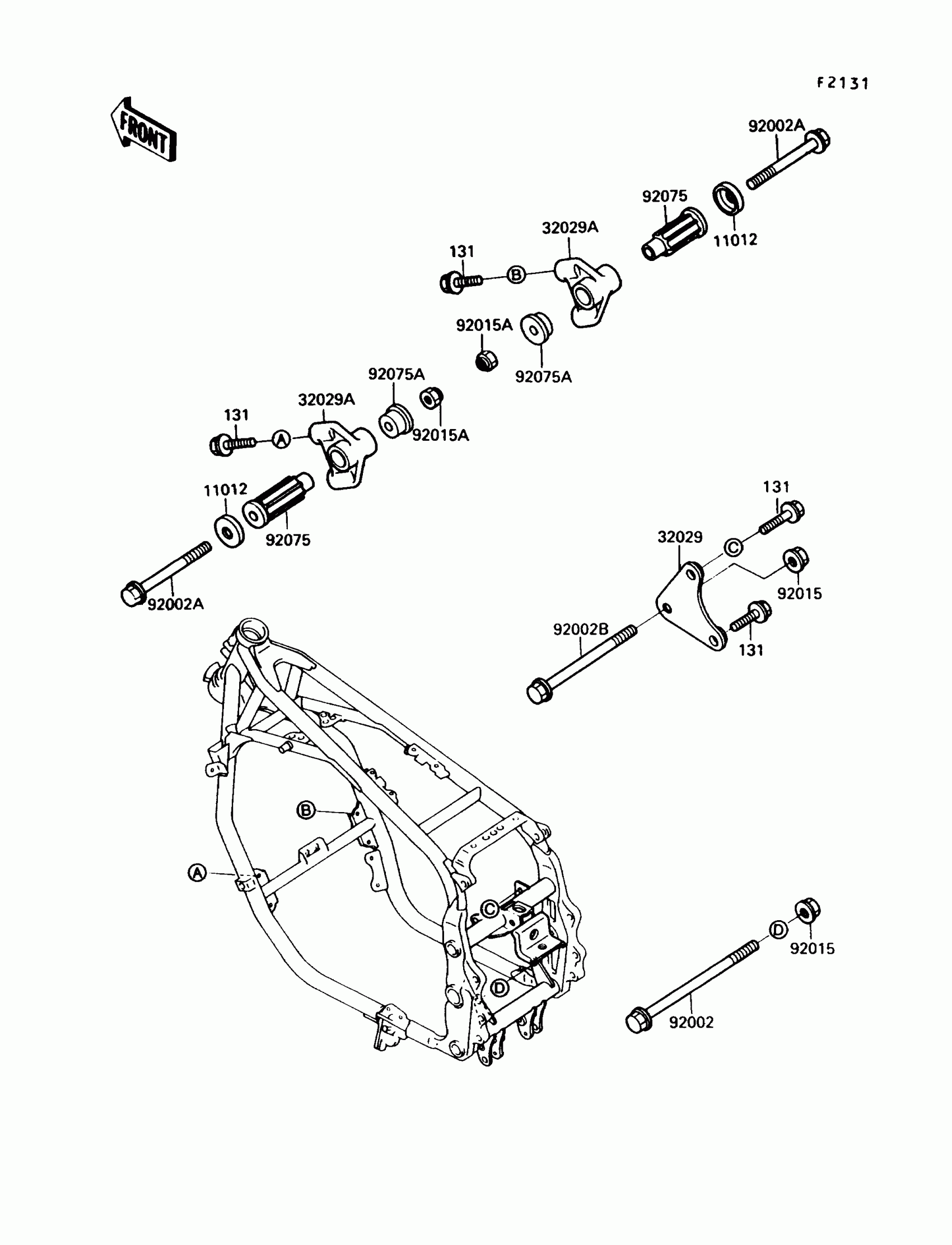

1989 Kawasaki Ninja® 600R Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

32029

BRACKET-ENGINE,RR,UPP

32029-1541

1
Out of stock

32029A

BRACKET-ENGINE,FR

32029-1698

1
Out of stock

92002

BOLT,10X183

92002-1337

1
Out of stock

92002A

BOLT,FLANGED,10X105

92002-1491

1
Out of stock

92002B

BOLT,FLANGED,10X138

92002-1492

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,10MM

92015-1429

1
Out of stock

92075

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

92075A

DAMPER,ENGINE BRACKET

92075-1462

1
Out of stock

131

BOLT-FLANGED,8X20

131J0820

1
Out of stock
