1989 Kawasaki Ninja® 600R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

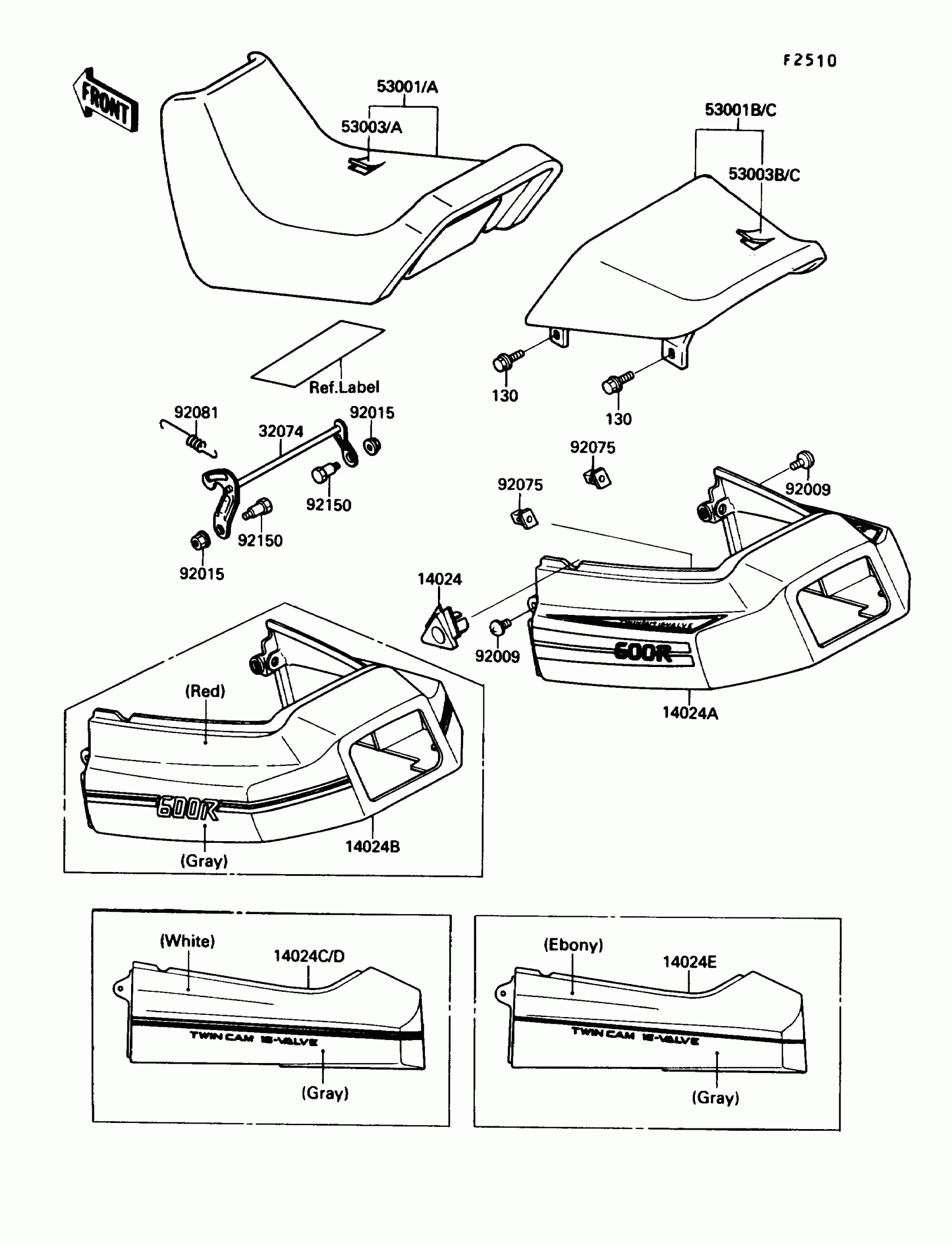

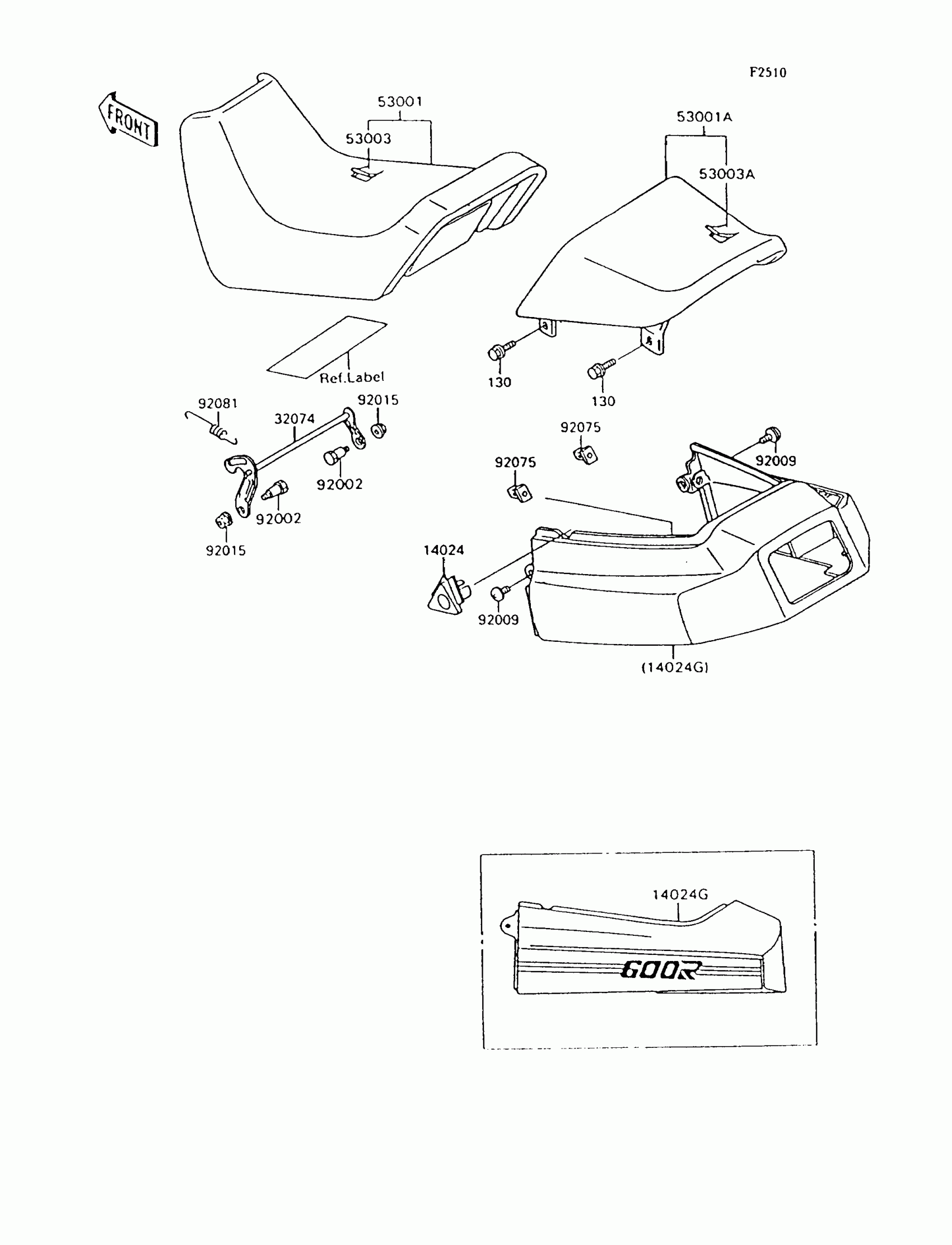

1989 Kawasaki Ninja® 600R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,SEAT LOCK

14024-1456

1
Out of stock

14024C

COVER,SEAT,WHITE/GRAY

14024-5104-DA

1
Out of stock

14024D

COVER,SEAT,WHITE/GRAY

14024-5104-GJ

1
Out of stock

14024E

COVER,SEAT,EBONY/GRAY

14024-5105-T4

1
Out of stock

32074

BRACKET-LOCK,SEAT

32074-1132

1
Out of stock

53001

SEAT-ASSY,FR,BLACK

53001-1503-MA

1
Out of stock

53001B

SEAT-ASSY,RR,BLACK

53001-1504-MA

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1181-MA

1
Out of stock

53003B

LEATHER,REAR SEAT,BLACK

53003-1182-MA

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92075

DAMPER,SEAT COVER

92075-1931

1
Out of stock

92081

SPRING,SEAT LOCK

92081-1581

1

$12.32

In stock

92150

BOLT,6MM

92002-1932

1
Out of stock

130

BOLT-FLANGED

130B0614

1
Out of stock
