1989 Kawasaki Ninja® 600R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

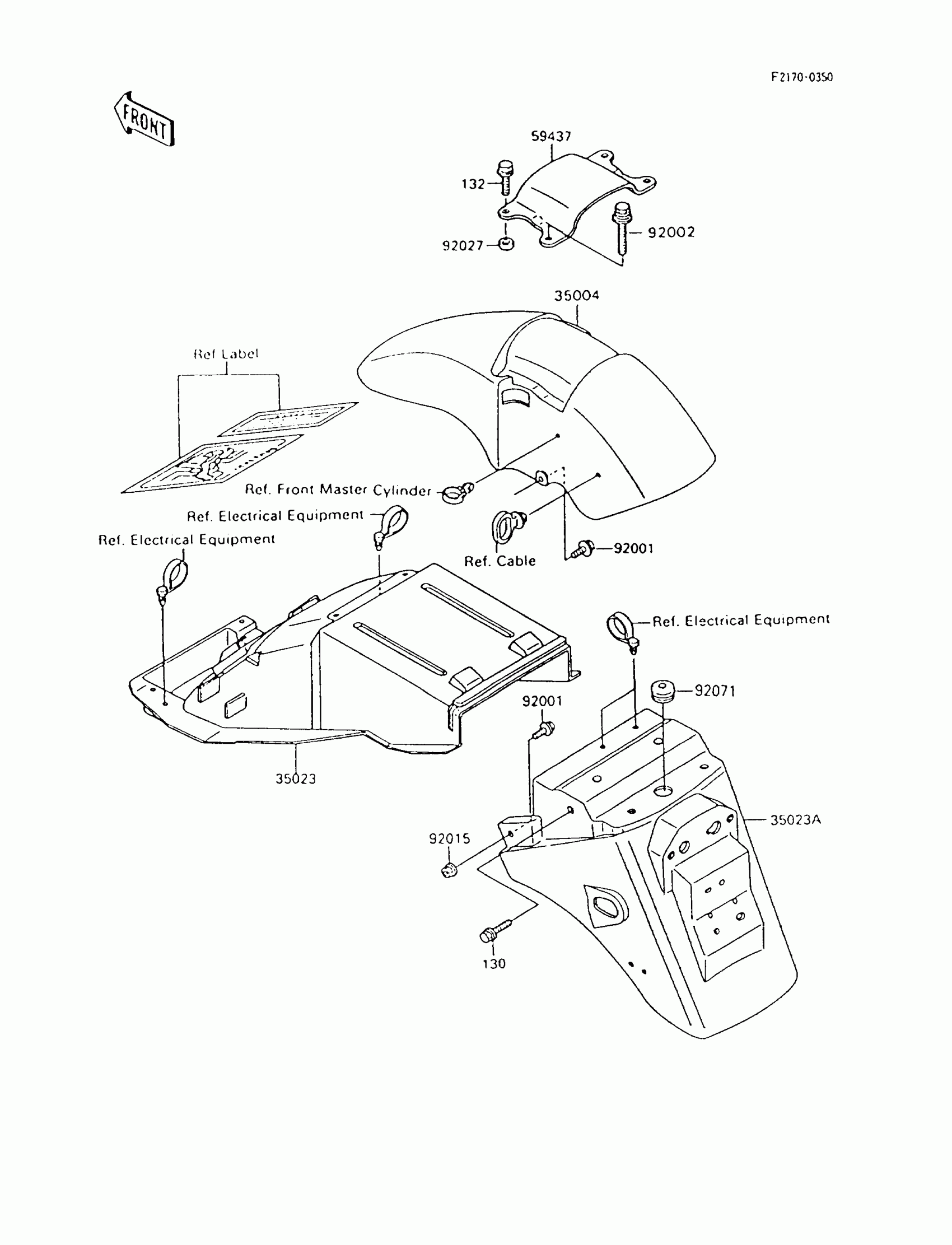

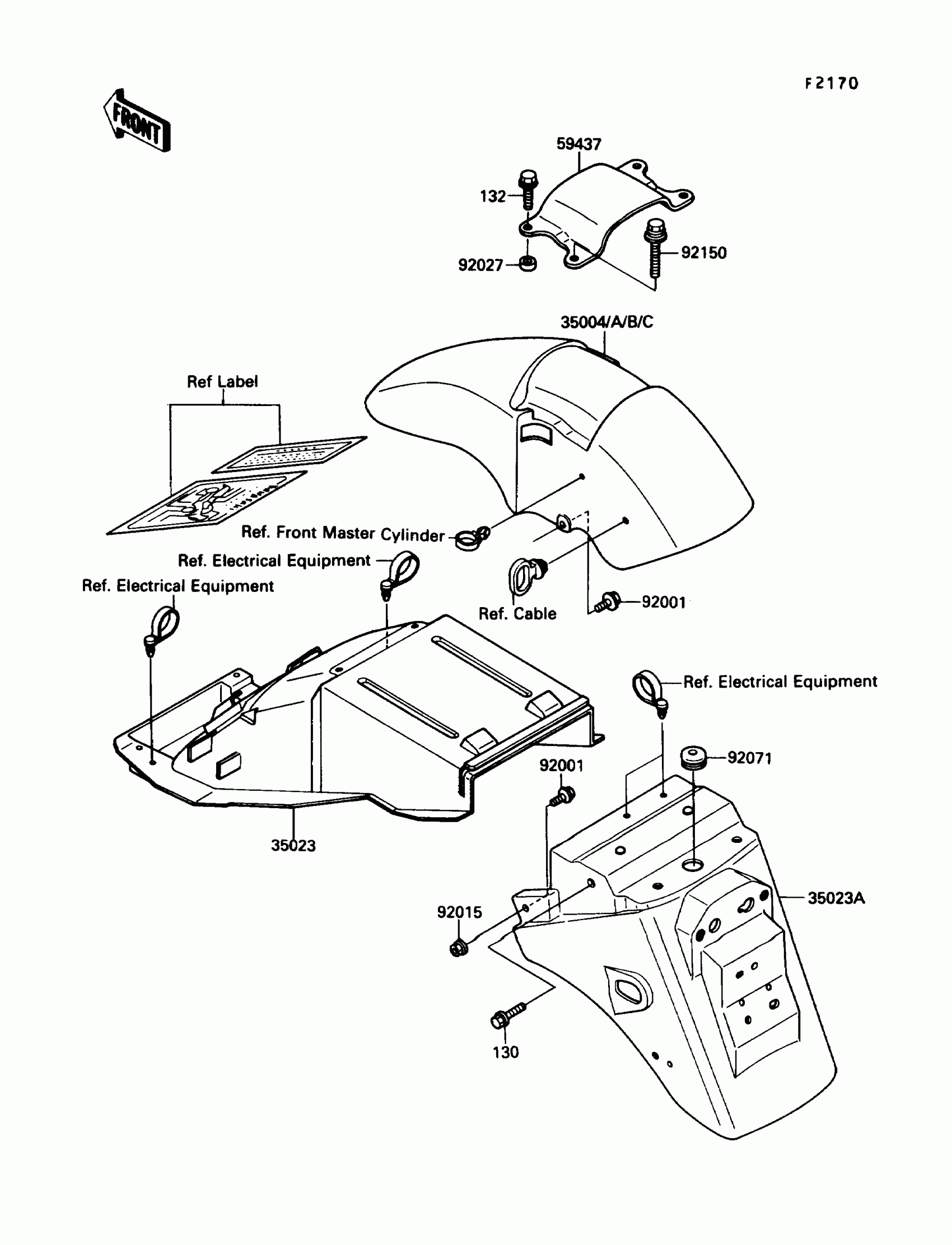

1989 Kawasaki Ninja® 600R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,P.A.WHITE

35004-1202-GK

1
Out of stock

35004B

FENDER-FRONT,EBONY

35004-1202-H8

1
Out of stock

35004C

FENDER-FRONT,P.A.WHITE

35004-1202-R1

1
Out of stock

35023

FENDER-REAR,FR

35023-1185

1
Out of stock

35023A

FENDER-REAR,RR,BLACK

35023-1186-6Z

1
Out of stock

59437

STABILIZER

59437-1060

1
Out of stock

92001

BOLT,W/SP,6X16

92001-1763

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92027

COLLAR,9.5X12.7X4.5

92027-1879

1
Out of stock

92071

GROMMET,SENSOR LEAD

92071-1058

1
Out of stock

92150

BOLT,FLANGED,8X14

92002-1972

1
Out of stock

130

BOLT-FLANGED,6X35

130G0635

1
Out of stock

132

BOLT-FLANGED-SMALL,8X20

132G0820

1
Out of stock
