1986 Kawasaki Ninja® 600 Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

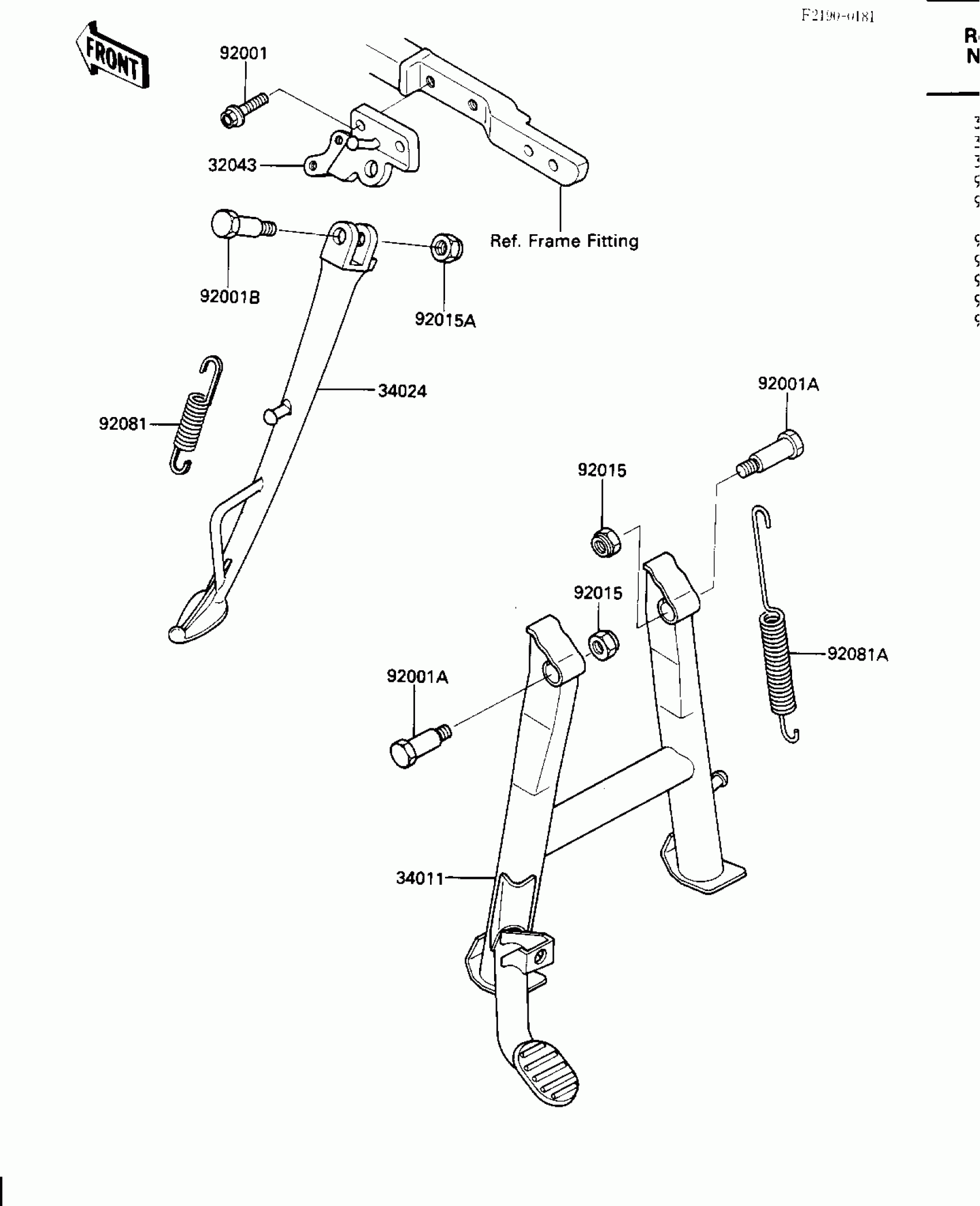

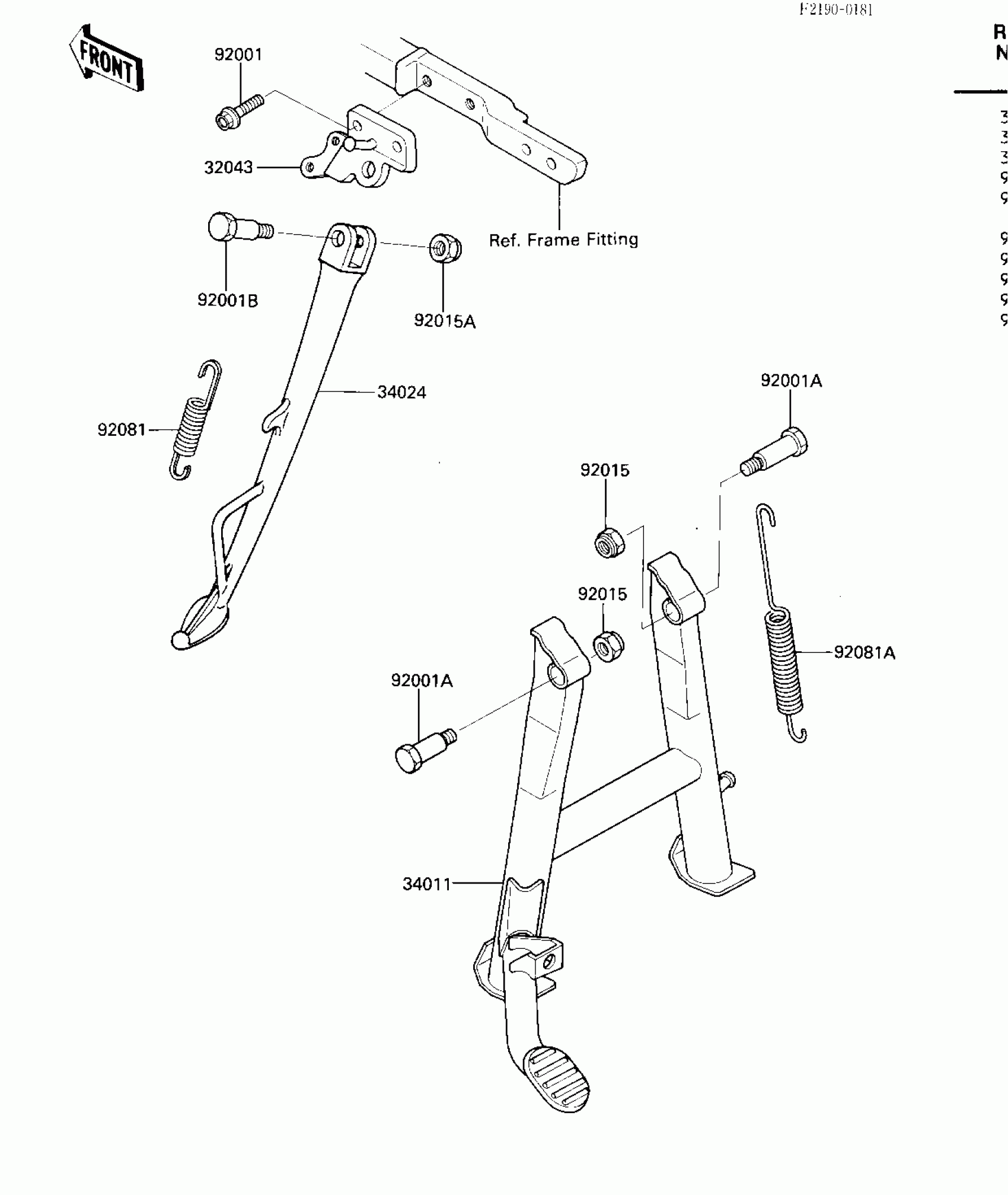

1986 Kawasaki Ninja® 600 Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,SIDE

32043-1263

1

$58.93

In stock

34011

STAND-CENTER

34011-1121

1
Out of stock

34024

STAND-SIDE

34024-1192

1

$134.16

In stock

92001

BOLT,FLANGED,8X28

92001-1095

1

$5.71

In stock

92001A

BOLT,CENTER STAND

92001-1214

1

$9.12

In stock

92001B

BOLT,SIDE STAND

92003-157

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92015A

NUT,LOCK,10MM

92019-021

1

$4.83

In stock

92081

SPRING,SIDE STAND

92081-1676

1

$11.19

In stock

92081A

SPRING,CENTER STAND

92081-1834

1
Out of stock
