1986 Kawasaki Ninja® 600 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

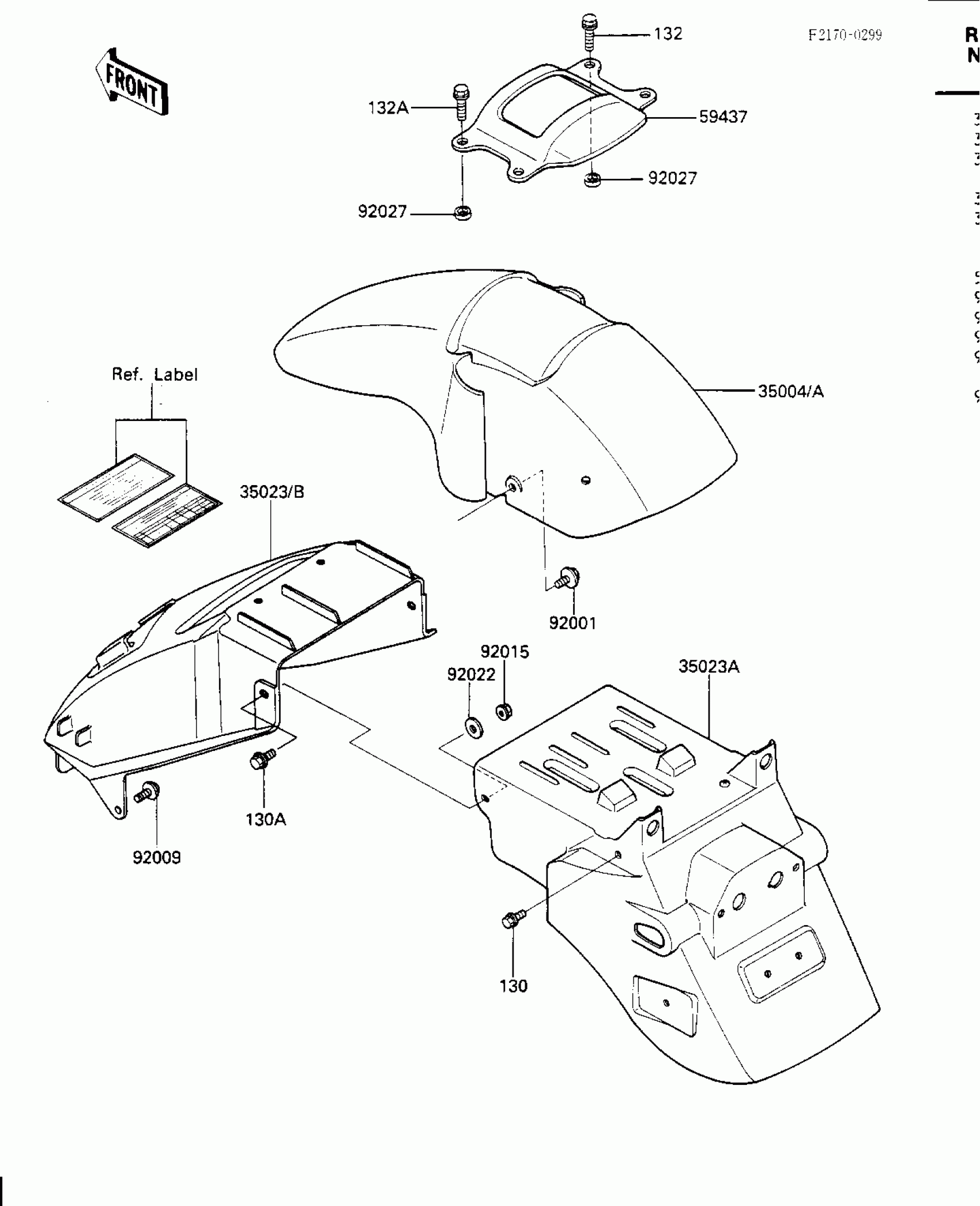

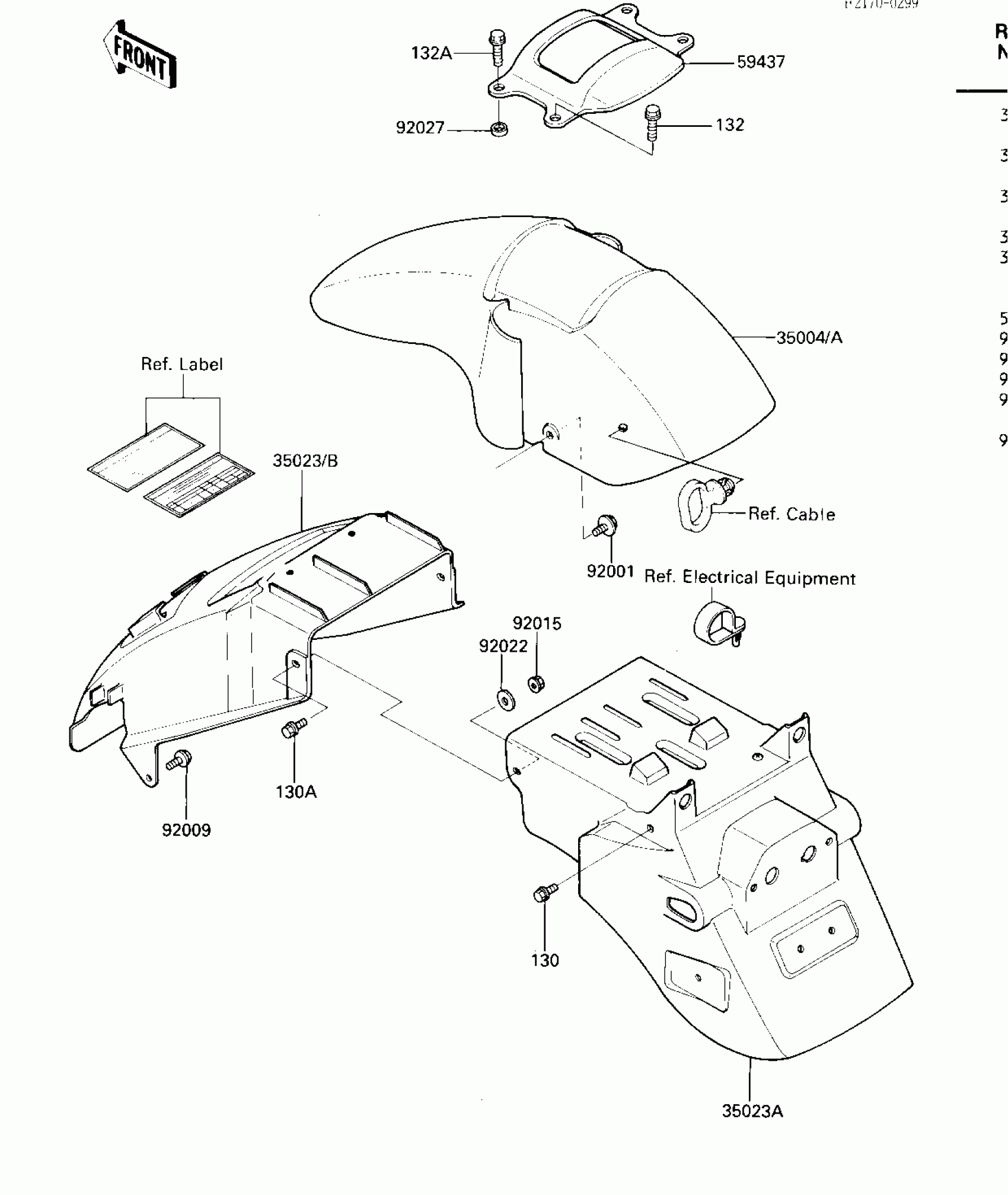

1986 Kawasaki Ninja® 600 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004A

FENDER-FRONT,P.A.WHIT

35004-1170-R1

1

$178.82

In stock

35023

FENDER-REAR,FR

35023-1129

1
Out of stock

35023A

FENDER-REAR,RR,BLACK

35023-1130-6Z

1
Out of stock

35023B

FENDER-REAR,FR

35023-1136

1

$59.34

In stock

59437

STABILIZER

59437-1053

1

$132.14

In stock

92001

BOLT,W/SP,6X16

92001-1763

1

$3.57

In stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,9.5X12.7X4.5

92027-1879

1
Out of stock

130

BOLT-FLANGED

130D0616

1
Out of stock

130A

BOLT-FLANGED,6X20

130D0620

1
Out of stock

132

BOLT-FLANGED-SMALL,8X20

132G0820

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X25

132G0825

1
Out of stock
