1986 Kawasaki Ninja® 600 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

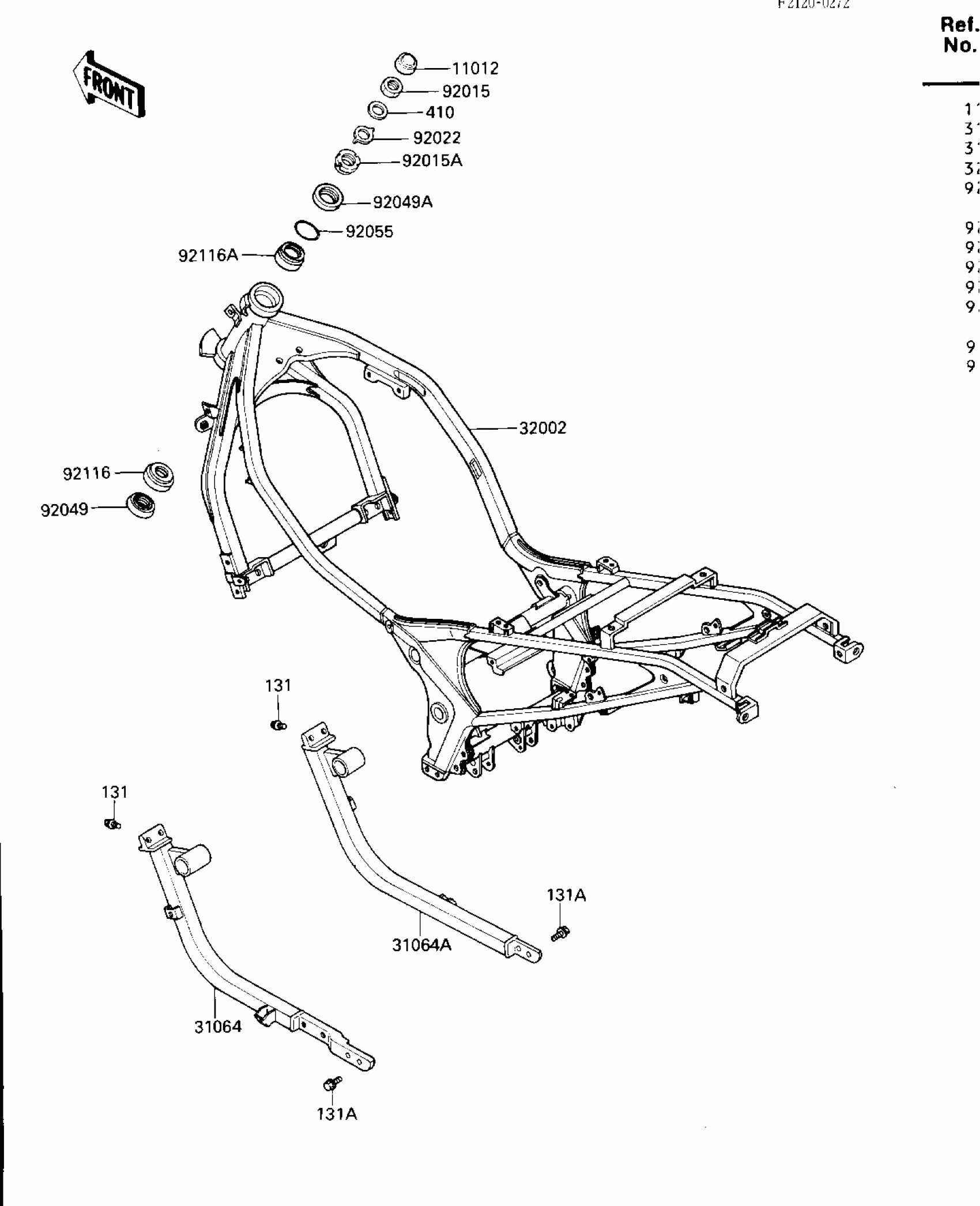

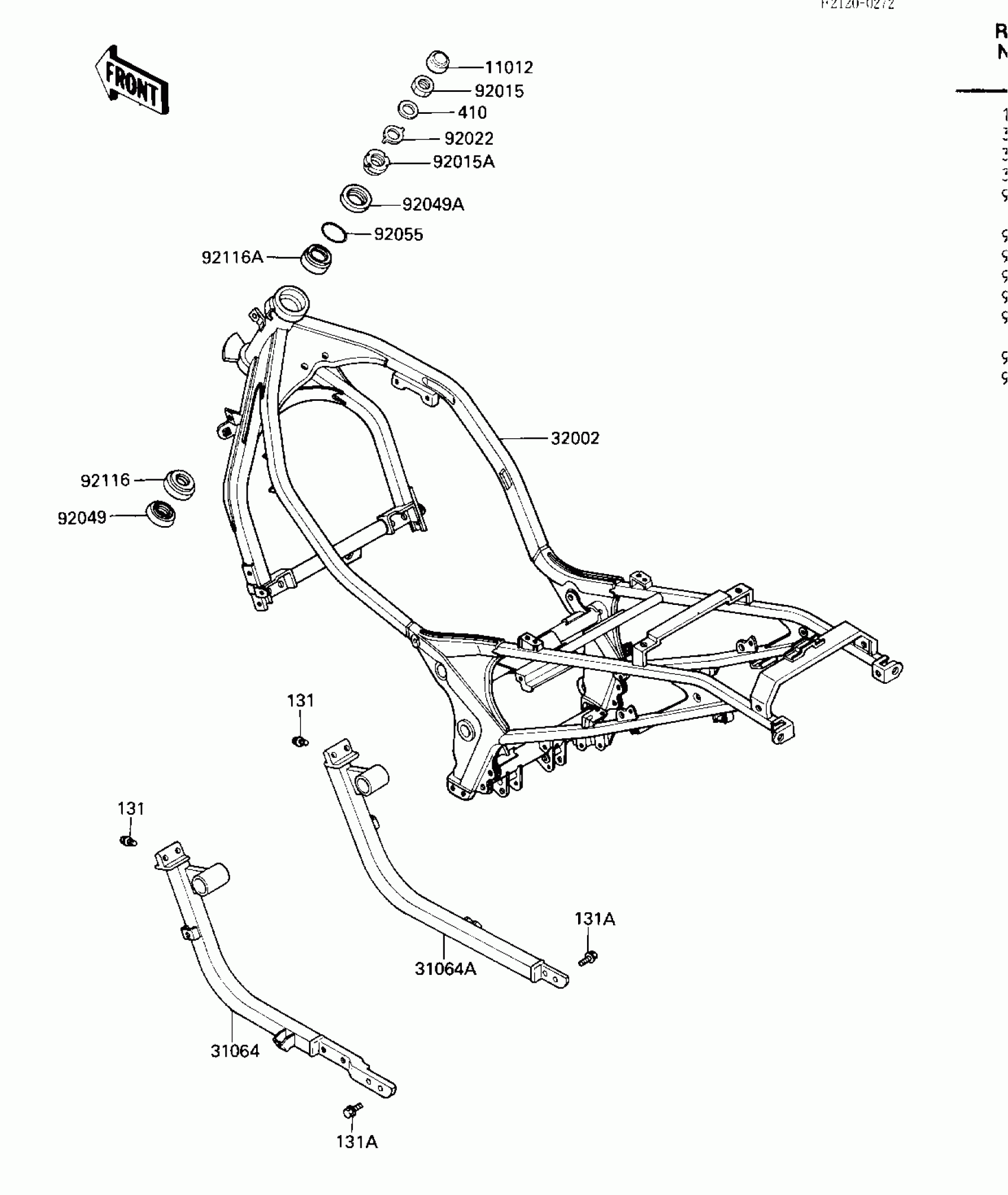

1986 Kawasaki Ninja® 600 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

11012-1442

1
Out of stock

31064

1

$120.92

In stock

31064A

1

$110.29

In stock

32002

FRAME-COMP

32002-1800

1

$1,214.24

In stock

92015

NUT,18MM

92015-1404

1

$21.97

In stock

92015A

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92022

1

$7.49

In stock

92049

1

$7.49

In stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1

$3.72

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

131

BOLT-FLANGED

131G0820

1
Out of stock

131A

BOLT-FLANGED

131G1020

1
Out of stock

410

W-PLAIN-S

410F1800

1
Out of stock
