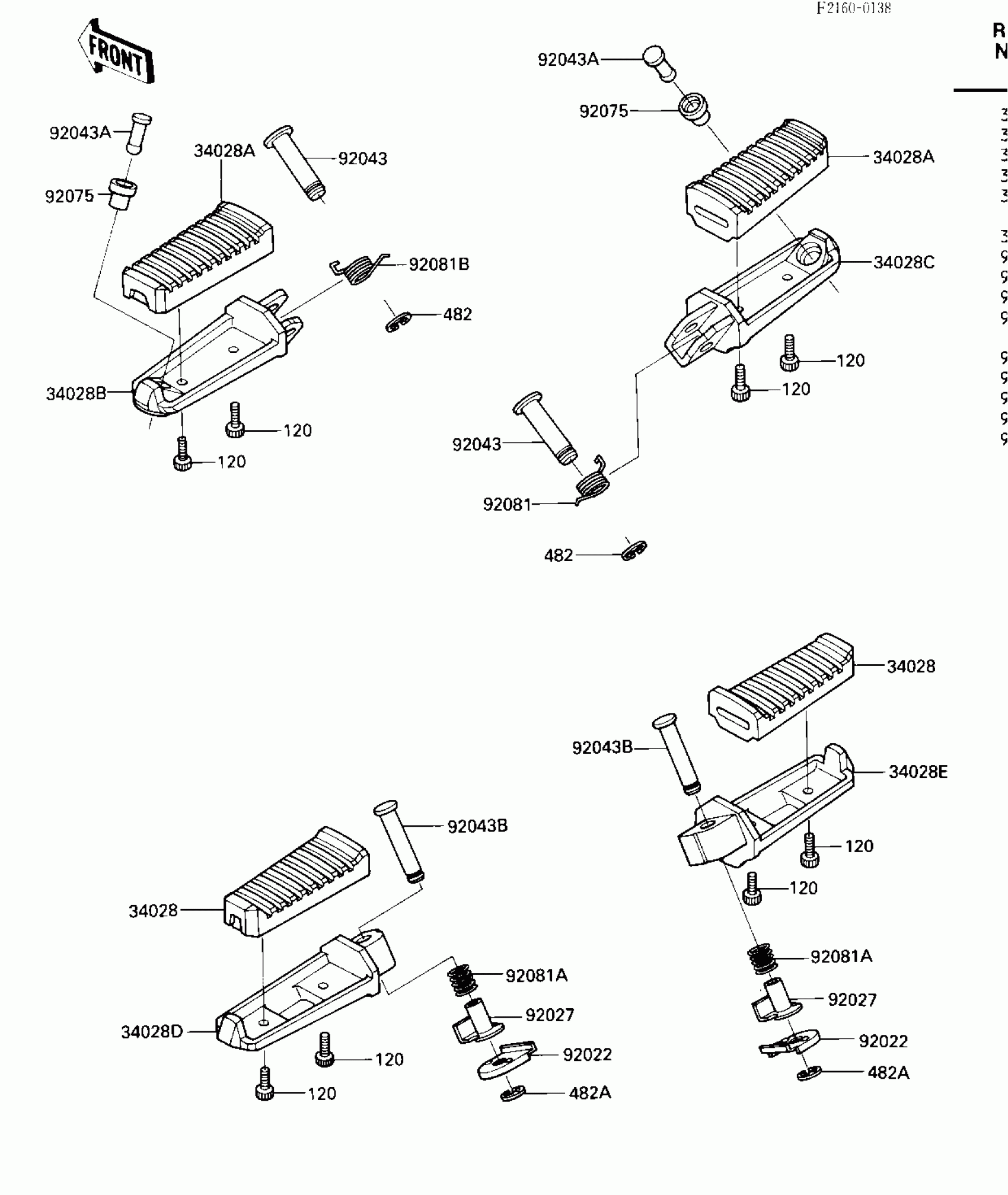

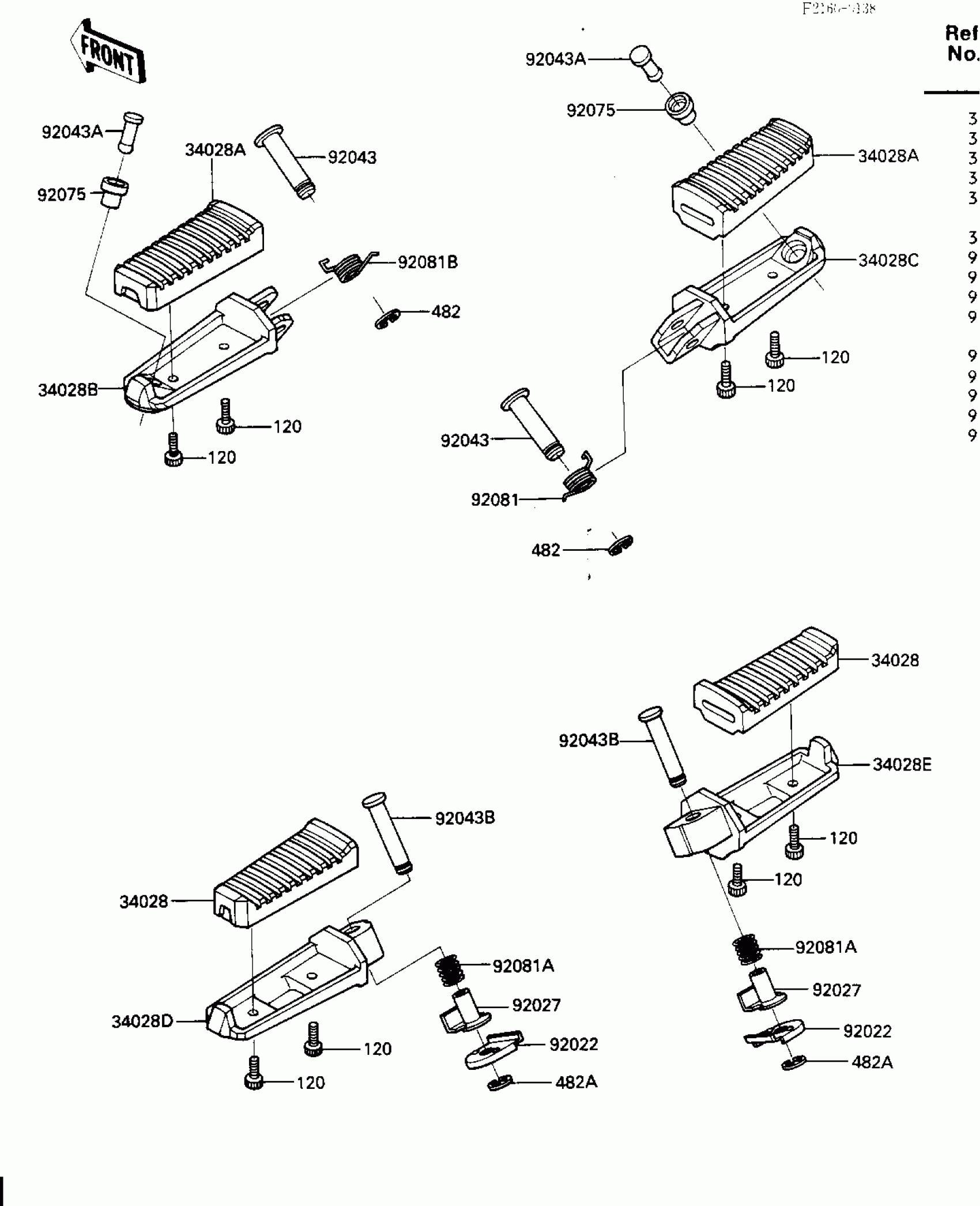

Kawasaki Ninja® 600 FOOTRESTS Diagram

Description

Price

34028

STEP,RR,RUBBER

34028-1060

$21.98

34028A

STEP,FR,RUBBER

34028-1118

Unavailable

34028B

STEP,FR,LH

34028-1119

Unavailable

34028C

STEP,FR,RH

34028-1120

Unavailable

34028D

STEP,RR,LH

34028-1121

Unavailable

34028E

STEP,RR,RH

34028-1122

Unavailable

92022

WASHER,STEP,RR

92022-1507

$4.61

92027

COLLAR,STEP

92027-1732

$10.73

92043

PIN,12X42.5

92043-1145

$9.27

92043A

PIN,BANK SENSOR

92043-1219

$9.05

92043B

PIN,6X38.5

92043-1238

$3.98

92075

DAMPER,BANK SENSOR

92075-1597

$5.37

92081

SPRING,STEP RETURN

92144-1568

$4.88

92081A

SPRING,STEP,RR

92081-1612

$3.81

92081B

SPRING,STEP RETURN

92144-1567

$4.88

120

BOLT-SOCKET,5X14

120Z0514

Unavailable

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.04
