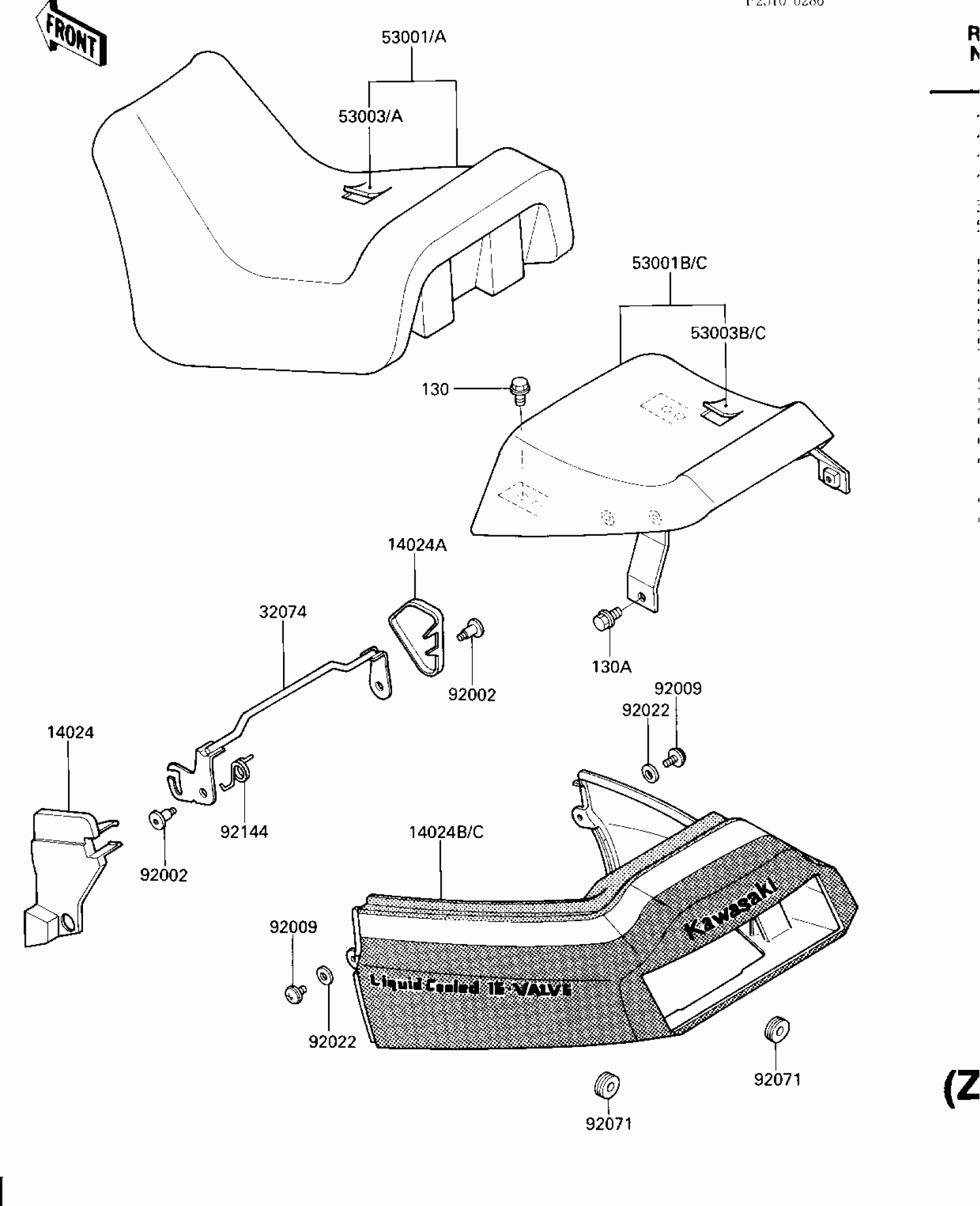

Kawasaki Ninja® 600 SEAT/SEAT COVER (ZX600-A1) Diagram

Description

Price

14024

COVER,SEAT LOCK,LH

14024-1051

Unavailable

14024A

COVER,SEAT LOCK,RH

14024-1052

Unavailable

14024B

COVER,SEAT,EBONY/F.RE

14025-5218-J3

Unavailable

14024C

COVER,SEAT,F.RED/P.A.

14025-5219-P9

Unavailable

32074

BRACKET-LOCK,SEAT

32074-1113

$49.78

53001

SEAT-ASSY,FR,BLACK

53001-1415-N3

$241.29

53001A

SEAT-ASSY,FR,RED

53001-1415-N4

Unavailable

53001B

SEAT-ASSY,RR,BLACK

53001-1416-N3

$167.56

53001C

SEAT-ASSY,RR,RED

53001-1416-N4

Unavailable

53003

LEATHER,FRONT SEAT,BL

53003-1130-N3

$143.86

53003A

LEATHER,FRONT SEAT,RE

53003-1130-N4

Unavailable

53003B

LEATHER,REAR SEAT,BLA

53003-1131-N3

$77.73

53003C

LEATHER,REAR SEAT,RED

53003-1131-N4

Unavailable

92002

BOLT,SOCKET,6MM

92002-1616

$12.19

92009

SCREW,6X14

92009-1288

$2.99

92022

WASHER,6.5X16X1.0

92022-1654

$2.76

92071

GROMMET

92071-056

$3.25

92144

SPRING,SEAT LOCK

92144-1086

$5.47

130

BOLT

130B0612

Unavailable

130A

BOLT-FLANGED,8X14

130G0814

Unavailable
