1986 Kawasaki Ninja® 600 Fairing Diagram

← All diagrams

Find the part on the Fairing diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

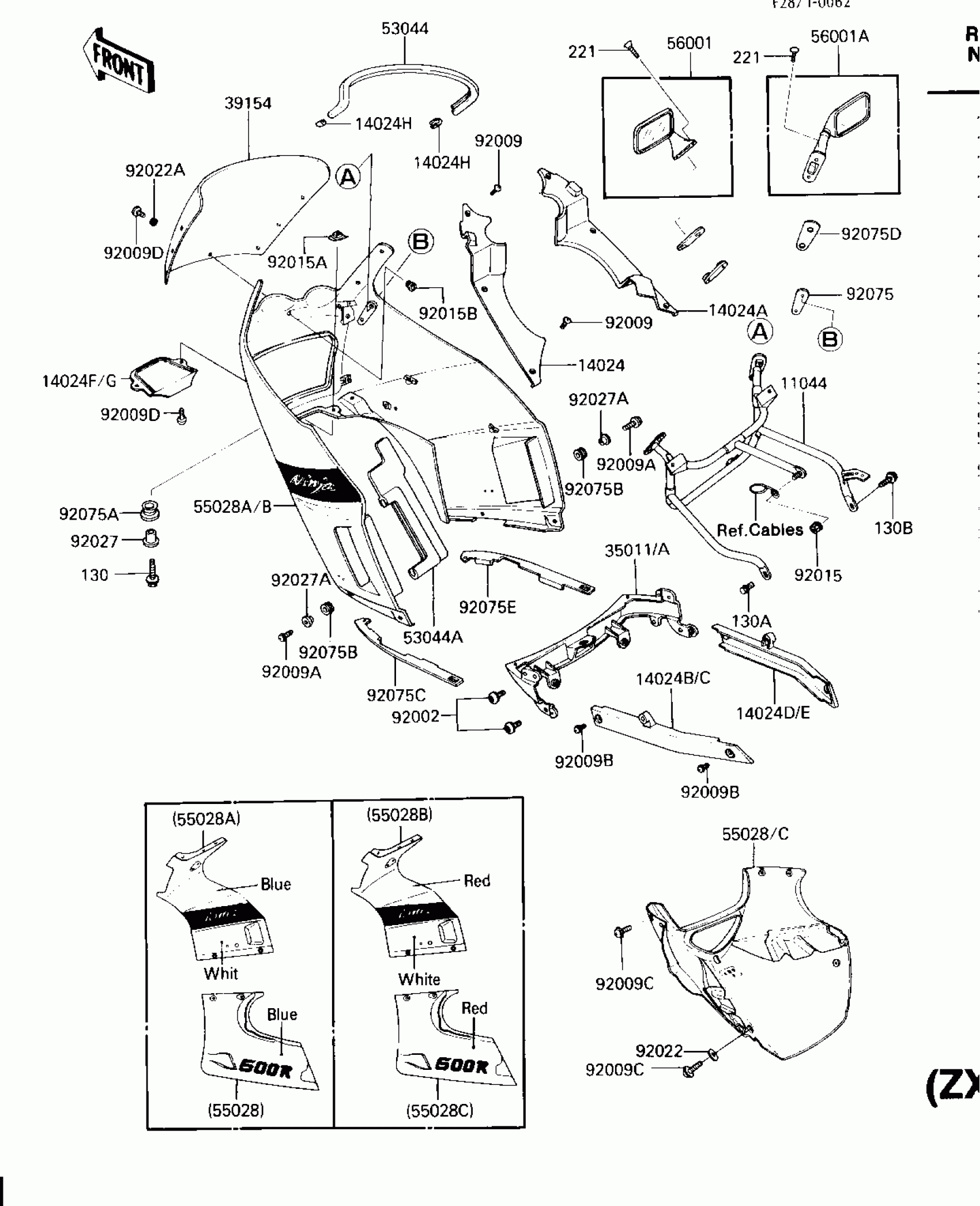

1986 Kawasaki Ninja® 600 Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,COWLING,UPP

11044-1076

1
Out of stock

14024

COVER,UPP,INNER,LH

14025-1726

1
Out of stock

14024A

COVER,UPP,INNER,RH

14025-1727

1
Out of stock

14024B

COVER,SIDE PANEL,LH,F

14025-1732-B1

1
Out of stock

14024C

COVER,SIDE PANEL,LH,B

14025-1732-R6

1
Out of stock

14024D

COVER,SIDE PANEL,RH,F

14025-1733-B1

1
Out of stock

14024E

COVER,SIDE PANEL,RH,B

14025-1733-R6

1
Out of stock

14024F

COVER,HEAD LAMP BULB,

14025-1735-M4

1
Out of stock

14024G

COVER,HEAD LAMP VALVE

14025-1735-6L

1
Out of stock

14024H

COVER,TRIM END

14025-1756

1
Out of stock

35011

STAY,COWLING,LWR,F.RE

35011-1246-B1

1
Out of stock

35011A

STAY,COWLING,LWR,BLUE

35011-1246-R6

1
Out of stock

39154

WINDSHIELD

39154-1105

1
Out of stock

53044

TRIM,WINDSHIELD

53044-1120

1
Out of stock

53044A

TRIM

53044-1135

1
Out of stock

55028

COWLING.,LWR,L.P.BLUE

55048-5283-M4

1
Out of stock

55028A

COWLING.,UPP,BLUE/WHI

55048-5275-S3

1
Out of stock

55028B

COWLING.,UPP,RED/WHIT

55048-5276-P9

1
Out of stock

55028C

COWLING.,LWR,F.RED

55048-5286-B1

1
Out of stock

56001

MIRROR-ASSY,LH

56001-1250

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1251

1
Out of stock

92002

BOLT

92002-1588

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009A

SCREW,6X22,BLACK

92009-1251

1
Out of stock

92009B

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009C

SCREW,6X14

92009-1288

1
Out of stock

92009D

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015A

NUT,5MM

92015-1710

1
Out of stock

92015B

NUT,5MM,COWLING

92015-1343

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92027A

COLLAR,L=9.1,BLACK

92027-1935

1
Out of stock

92075

DAMPER,MIRROR

92075-1492

1
Out of stock

92075A

DAMPER

92160-1007

1
Out of stock

92075B

DAMPER

92075-1634

1
Out of stock

92075C

DAMPER,COWLING

92075-1707

1
Out of stock

92075D

DAMPER,MIRROR

92075-1745

1
Out of stock

92075E

DAMPER

92075-1759

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

130A

BOLT-FLANGED,8X12,BLACK

130C0812

1
Out of stock

130B

BOLT-FLANGED,8X16,BLACK

130C0816

1
Out of stock

221

SCREW-CSK-CROSS

221C0630

1
Out of stock
