1998 Kawasaki Ninja® 500R Turn Signals Diagram

← All diagrams

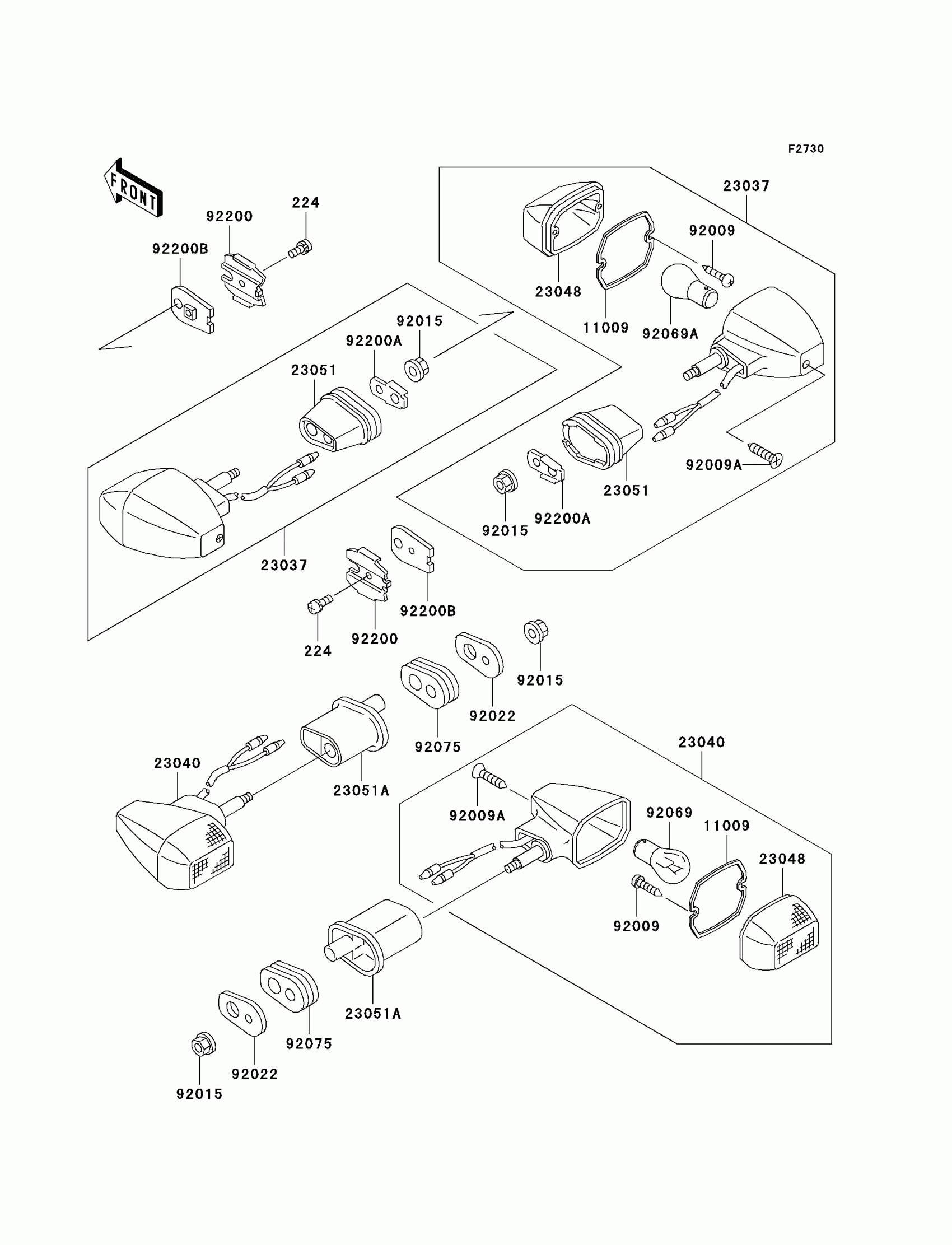

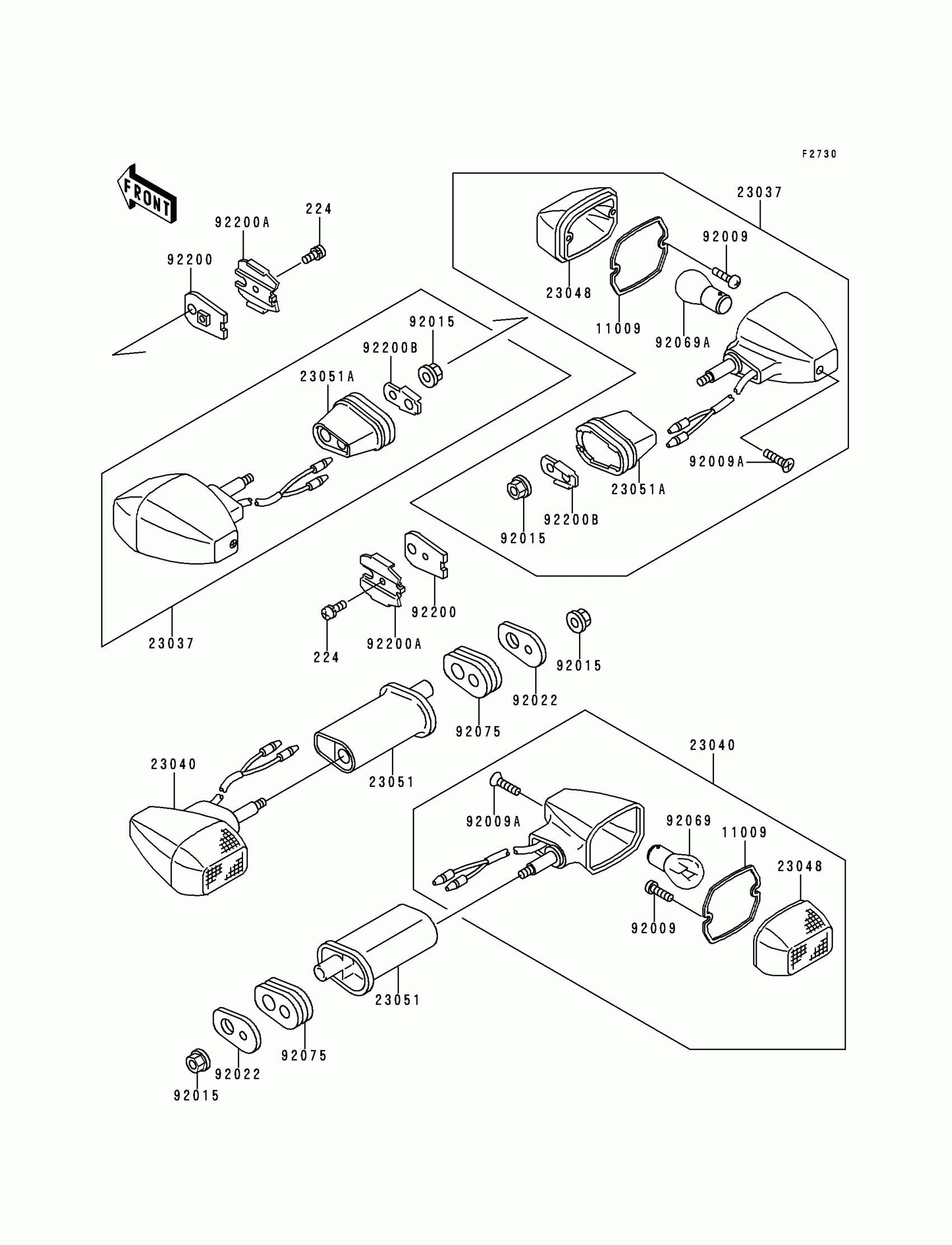

Find the part on the Turn Signals diagram for your 1998 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Kawasaki Ninja® 500R Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

224

SCREW-PAN-WP-CROS,4X8

224C0408

1
Out of stock

11009

GASKET,SIGNAL LAMP

11009-1402

1
Out of stock

23037

LAMP-ASSY-SIGNAL,FR

23037-1299

1
Out of stock

23040

LAMP-SIGNAL,RR

23040-1195

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-1054

1
Out of stock

23051

BRACKET-SIGNAL LAMP

23051-1164

1
Out of stock

23051A

BRACKET-SIGNAL LAMP,FR

23051-1207

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,SIGNAL LAMP

92022-1672

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92075

DAMPER,SIGNAL LAMP

92075-1698

1
Out of stock

92200

WASHER,SIGNAL LAMP

92200-1015

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-1016

1
Out of stock

92200B

WASHER

92200-1021

1
Out of stock
← Taillight Cowling →

More Electrical diagrams
