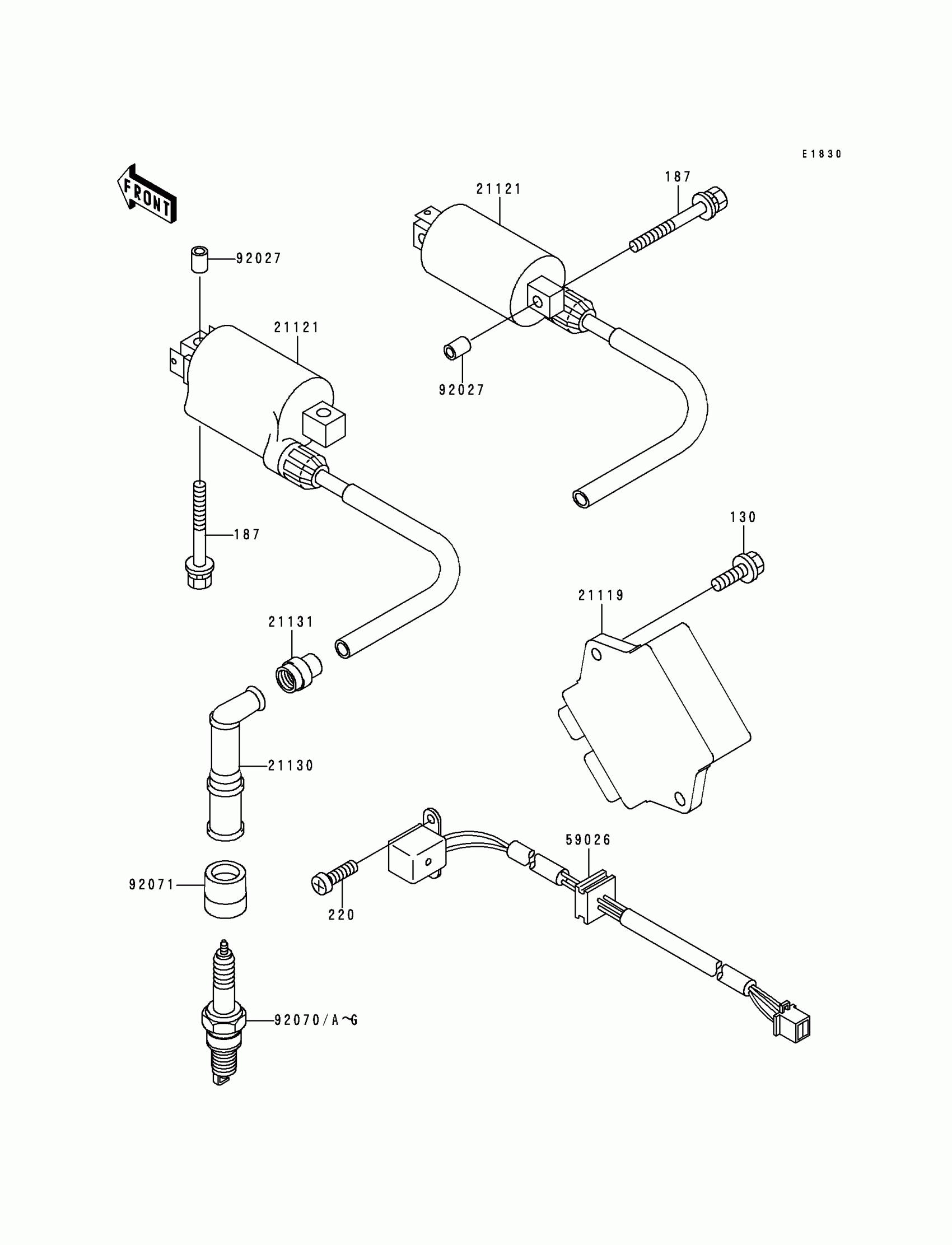

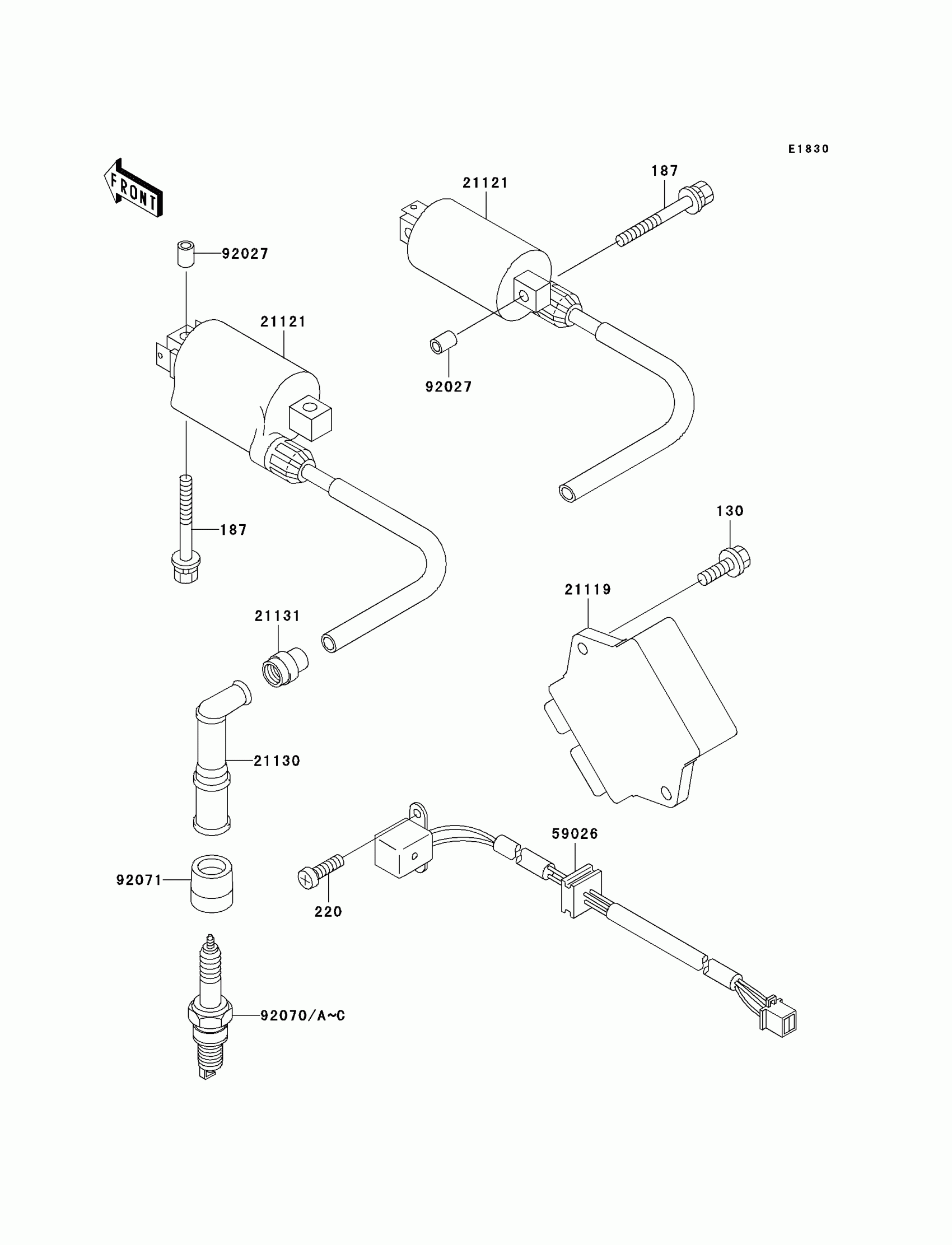

Kawasaki Ninja® 500R Ignition System Diagram

Description

Price

130

BOLT-FLANGED,6X16

130H0616

Unavailable

187

BOLT-UPSET-WSP,6X25

187G0625

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

21119

IGNITER

21119-1408

$590.34

21121

COIL-IGNITION

21121-1153

Unavailable

21130

CAP-SPARK PLUG

21130-1068

$42.67

21131

GROMMET,HIGH TENSION

21131-005

$4.64

59026

COIL-PULSING

59026-1126

$150.53

92027

COLLAR

92027-103

$2.39

92070

Not Available As Spare Part - Friction Washer

Unavailable

92070E

Not Available As Spare Part - Friction Washer

Unavailable

92070F

PLUG-SPARK,DR9EA(NGK)

92070-1189

$2.63

92070G

PLUG-SPARK,DR8EA(NGK)

92070-1199

$2.80

92071

GROMMET,PLUG CAP

92071-1146

$10.14
