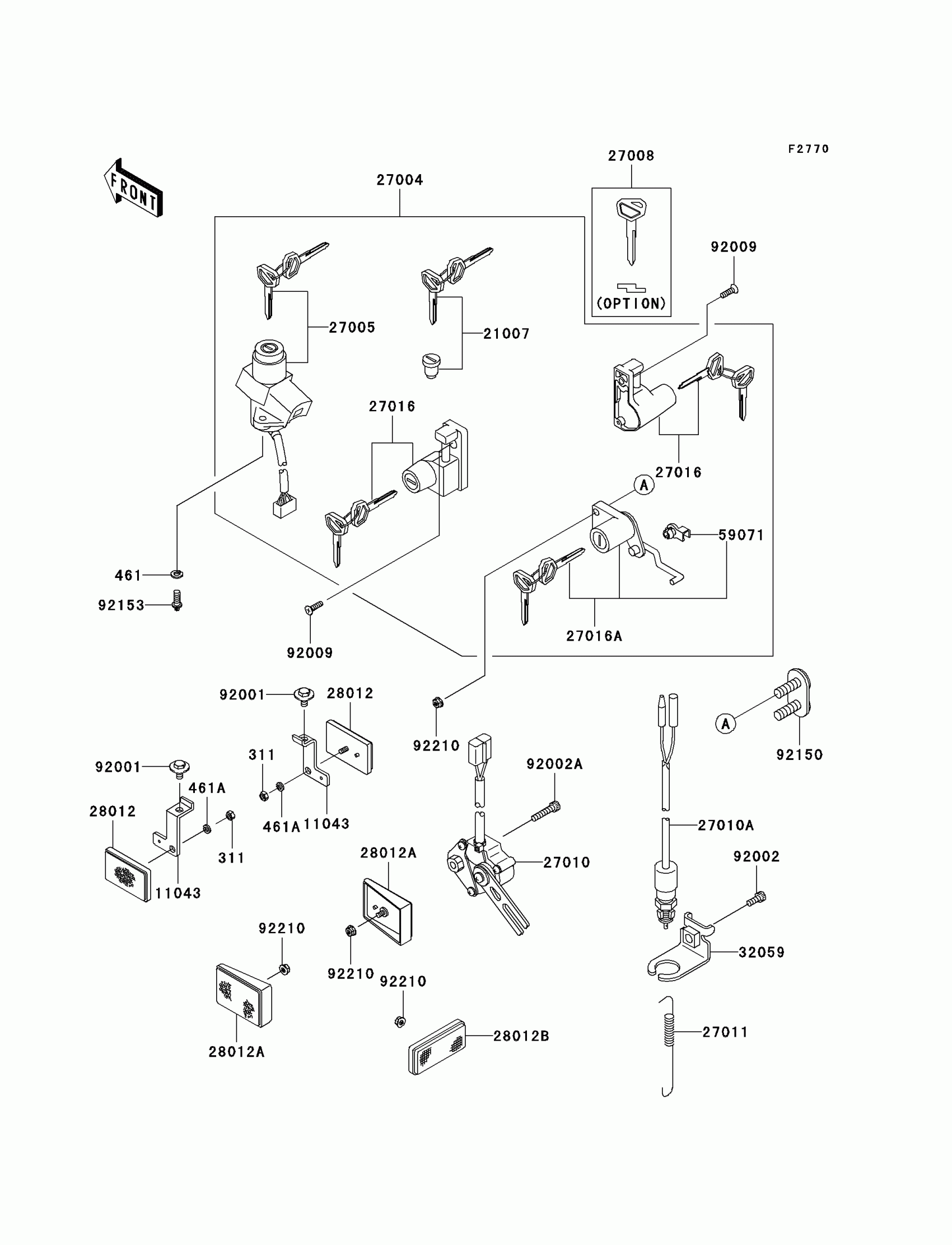

Kawasaki Ninja® 500R Ignition Switch/Locks/Reflectors Diagram

Description

Price

225

SCREW-PAN-WSP-CROS

225C0416

Unavailable

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER-SPRING

461L0600

$0.66

11043

BRACKET,FR,REFLECTOR

11043-1423

$10.24

21007

ROTOR,LOCK,TANK CAP

21007-5037

$94.15

27004

SWITCH-ASSY

27004-5464

$471.82

27005

SWITCH-ASSY-IGNITION

27005-5101

$193.32

27008

KEY-LOCK,BLANK

27008-1173

$16.44

27010

SWITCH,BRAKE LAMP

27010-1152

$26.58

27010A

SWITCH,BRAKE/SIDE STAND

27010-1185

Unavailable

27011

SPRING,BRAKE LAMP SWITCH

27011-006

$4.14

27016

LOCK-ASSY,HELMET

27016-5211

$83.33

27016A

LOCK-ASSY,SEAT

27016-5217

$83.33

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1056

$24.63

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

32059

BRACKET-SWITCH,REAR BRAKE

32059-1121

$10.14

59071

JOINT

59071-1103

$6.62

92001

BOLT,6X14,BLACK

92001-1847

$3.58

92002

BOLT,SOCKET,6X14

92002-1175

$4.61

92002A

BOLT,TORX,6X16

92002-1333

$1.85

92009

SCREW,5X18

92009-1305

$3.58

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,FLANGED,5MM

92015-1328

$1.90

92150

BOLT,SEAT LOCK

92150-1820

Unavailable
