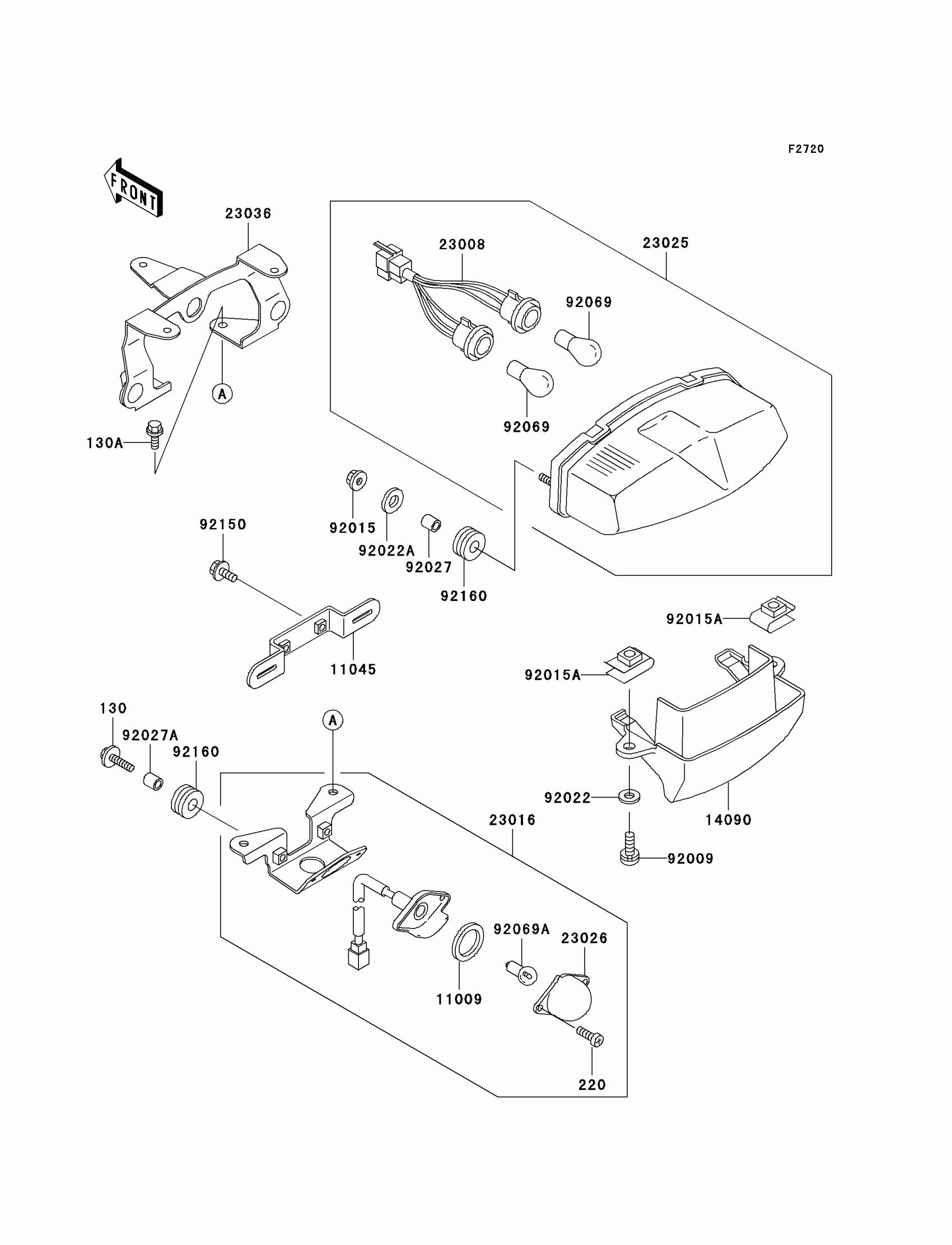

Kawasaki Ninja® 500R Taillight(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X25

130H0625

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

220

SCREW PAN HEAD 4X10

220B0410

Unavailable

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.14

11045

BRACKET,LICENSE

11045-1387

$12.66

11048

BRACKET,LICENSE PLATE LAMP

11048-1338

Unavailable

14090

COVER,LICENSE LAMP

14090-1487

$15.86

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

Unavailable

23008A

SOCKET-ASSY,TAIL LAMP

23008-1413

$36.21

23016

LAMP-ASSY,LICENSE PLATE

23016-1131

Unavailable

23025

LAMP-TAIL

23025-1219

$200.43

23026

LENS,LAMP

23026-1054

$9.02

23036

BRACKET-TAIL LAMP

23036-1130

$19.25

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,5MM

92015-1710

$4.67

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92022A

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92027A

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 8W

92069-1012

Unavailable

92150

BOLT,6X14

92150-1133

$3.43

92160

DAMPER

92160-1162

$3.81
