2021 Kawasaki Ninja® 400 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

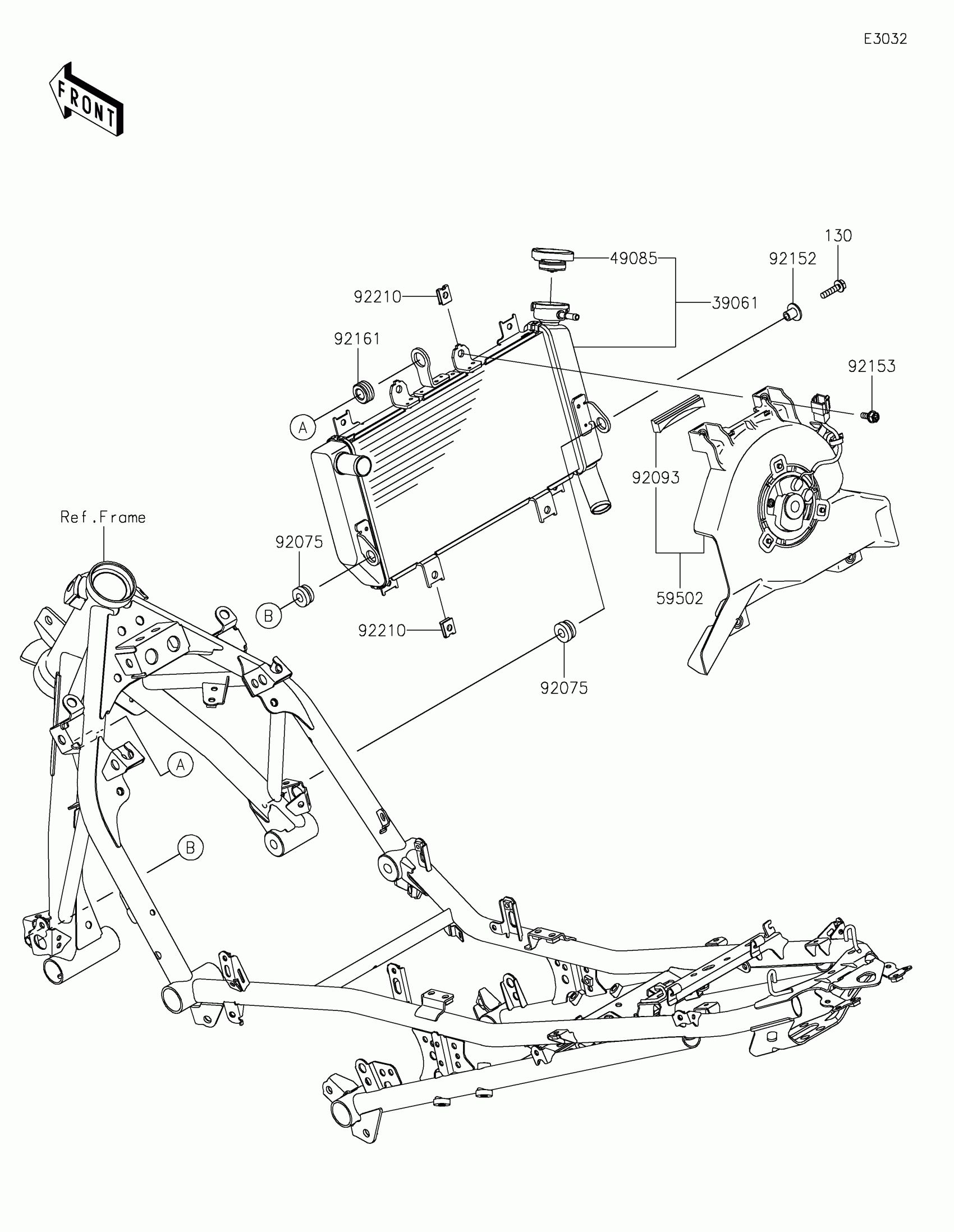

2021 Kawasaki Ninja® 400 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39061

RADIATOR-ASSY

39061-0751

1

$790.12

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

59502

FAN-ASSY

59502-0624

1

$677.68

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92093

SEAL

92093-0713

1

$10.51

In stock

92152

COLLAR

92152-1074

1

$4.93

In stock

92153

BOLT

92153-0531

1
Out of stock

92161

DAMPER

92161-2080

1

$4.17

In stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X25

130CB0625

1

$3.69

In stock
