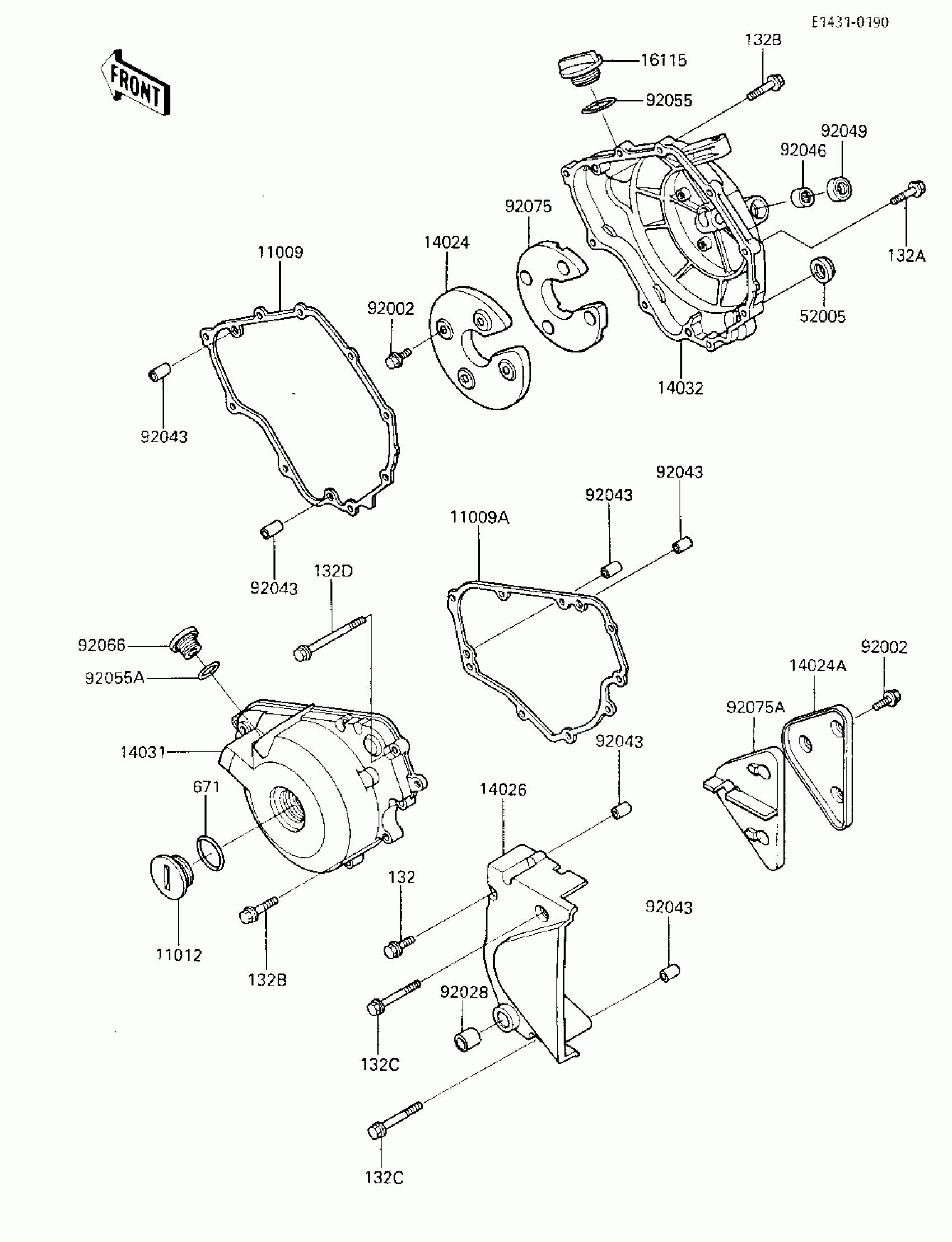

Kawasaki Ninja® 250R ENGINE COVERS Diagram

#

Description
Price

11009

GASKET,CLUTCH COVER

11009-1872

$24.12

11009A

GASKET,GENERATOR COVER

11009-1873

Unavailable

11012

CAP

11012-1362

$6.98

14024

COVER

14024-1315

Unavailable

14024A

COVER

14024-1316

Unavailable

14026

COVER-CHAIN

14026-1127

Unavailable

14031

COVER-GENERATOR

14031-1225

Unavailable

14032

COVER-CLUTCH

14032-1225

Unavailable

16115

CAP-OIL FILLER

16115-1009

$11.32

52005

GAUGE,OIL LEVEL

52005-1009

$14.45

92002

BOLT,6X10

92002-1449

$3.68

92028

BUSHING

92028-1347

$6.75

92043

PIN,6.2X8X14

92043-1263

$0.49

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$7.38

92055

RING-O,31.5X2.6

92055-049

$3.43

92055A

RING-O,20X2

92055-1146

$6.82

92066

PLUG,COVER

92066-1163

$11.67

92075

DAMPER,SOUND ARRESTOR

92075-1849

$52.59

92075A

DAMPER

92075-1850

$20.15

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132C

BOLT-FLANGED-SMALL,6X50

132J0650

Unavailable

132D

BOLT-FLANGED-SMALL

132W0675

Unavailable

671

O RING,40MM

671B2540

$4.93
