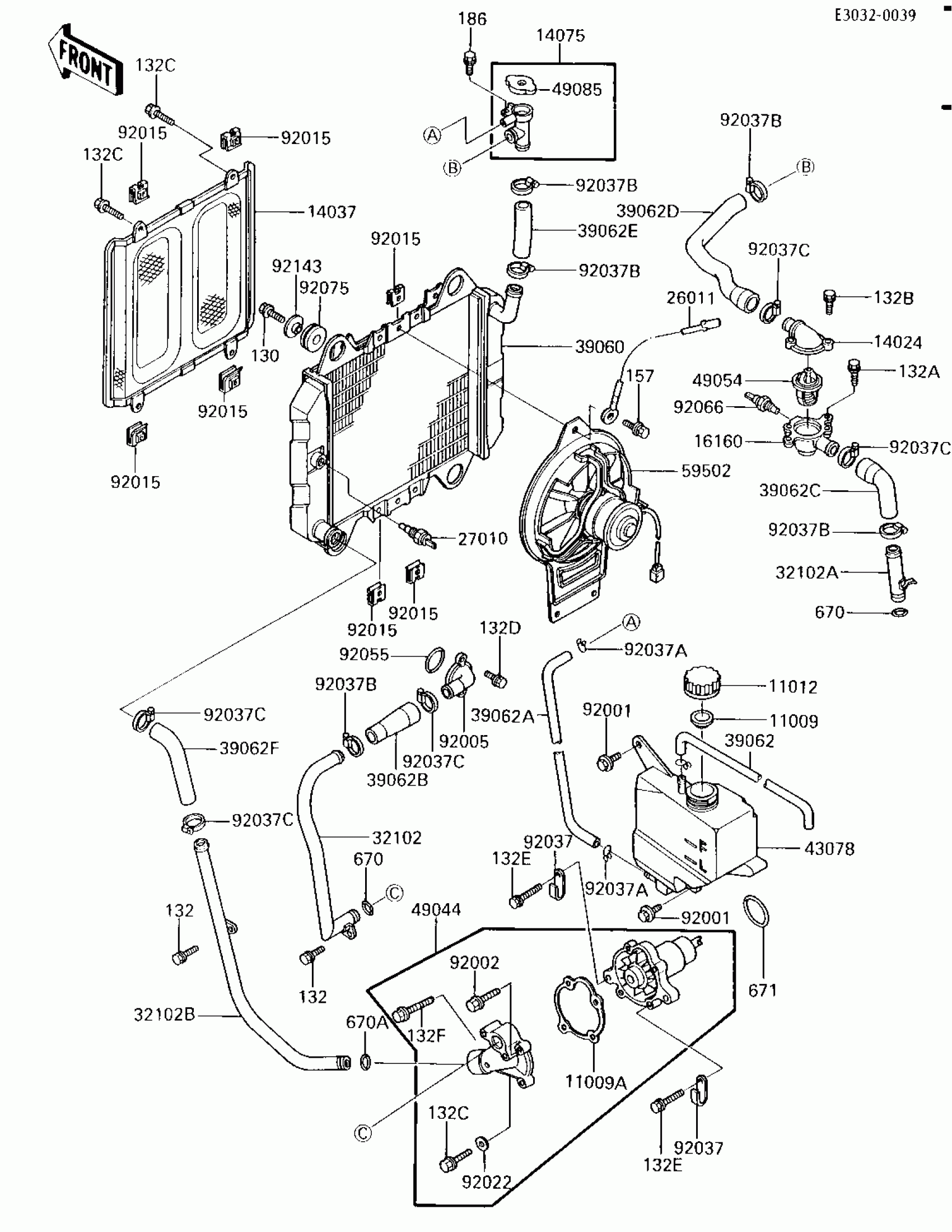

Kawasaki Ninja® 250R RADIATOR/FAN/WATER PUMP Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11009A

GASKET,WATER PUMP

11009-1612

Unavailable

11012

CAP

11012-1084

$1.31

14024

COVER,THERMOSTAT

14024-1232

$62.46

14037

SCREEN

14037-1078

$68.78

14075

CAP-ASSY,RADIATOR

14075-1061

$151.97

16160

BODY,THERMOSTAT

16160-1110

$41.29

26011

WIRE-LEAD

26011-1361

$24.64

27010

SWITCH,FAN

27010-1167

$131.65

32102

PIPE,WATERPUMP-CYLIND

32102-1020

$60.22

32102A

PIPE,HEAD-THERMOSTAT

32102-1021

$25.24

32102B

PIPE,RADIATOR-PUMP

32102-1022

Unavailable

39060

RADIATOR

39060-1072

$782.38

39062

HOSE-COOLING,RESERVOIR

39062-1007

$38.54

39062A

HOSE-COOLING

39062-1028

Unavailable

39062B

HOSE-COOLING,PUMP-CYLINDER

39062-1169

$10.02

39062C

HOSE-COOLING,HEAD-THERMOSTAT

39062-1170

$20.61

39062D

HOSE-COOLING,CAP-THERMOBODY

39062-1171

$42.13

39062E

HOSE-COOLING,RADIATOR-CAP

39062-1172

$28.79

39062F

HOSE-COOLING,RADIATOR-PUMP

39062-1173

$16.54

43078

RESERVOIR

43078-1070

$46.47

49044

PUMP-WATER

49044-1064

$311.04

49054

THERMOSTAT

49054-1058

$62.23

49085

CAP-ASSY-PRESSURE

49085-1003

$33.98

59502

FAN-ASSY

59502-1066

$587.78

92001

BOLT,W/WASHER,6X12

92001-1516

$4.42

92002

BOLT,6X18

92002-1806

$2.15

92005

FITTING,CYLINDER

92005-1145

$33.58

92015

NUT

92015-1487

$3.80

92022

WASHER,6MM

92022-1627

$5.46

92037

CLAMP,WIRING HARNESS

21126-008

$3.75

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,COOLING HOSE

92037-1589

$14.60

920370

CLAMP,COOLING HOSE

92170-1034

$19.44

92055

RING-O,27.7X2.4

92055-091

$4.93

92066

PLUG,SENSOR WATER

92066-1183

$60.95

92075

DAMPER

92075-1665

$6.83

92143

COLLAR

92143-1063

Unavailable

130

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL

132G0612

Unavailable

132B

BOLT-FLANGED-SMALL

132G0625

Unavailable

132C

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132D

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

132E

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132F

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

157

BOLT-WSP

157J0612

$2.31

186

BOLT-UPSET-WP,6X16

186C0616

Unavailable

670

O RING,16MM

670B2016

$1.20

670A

O RING,18MM

670B2018

$1.25

671

O RING

671D2535

$4.93
