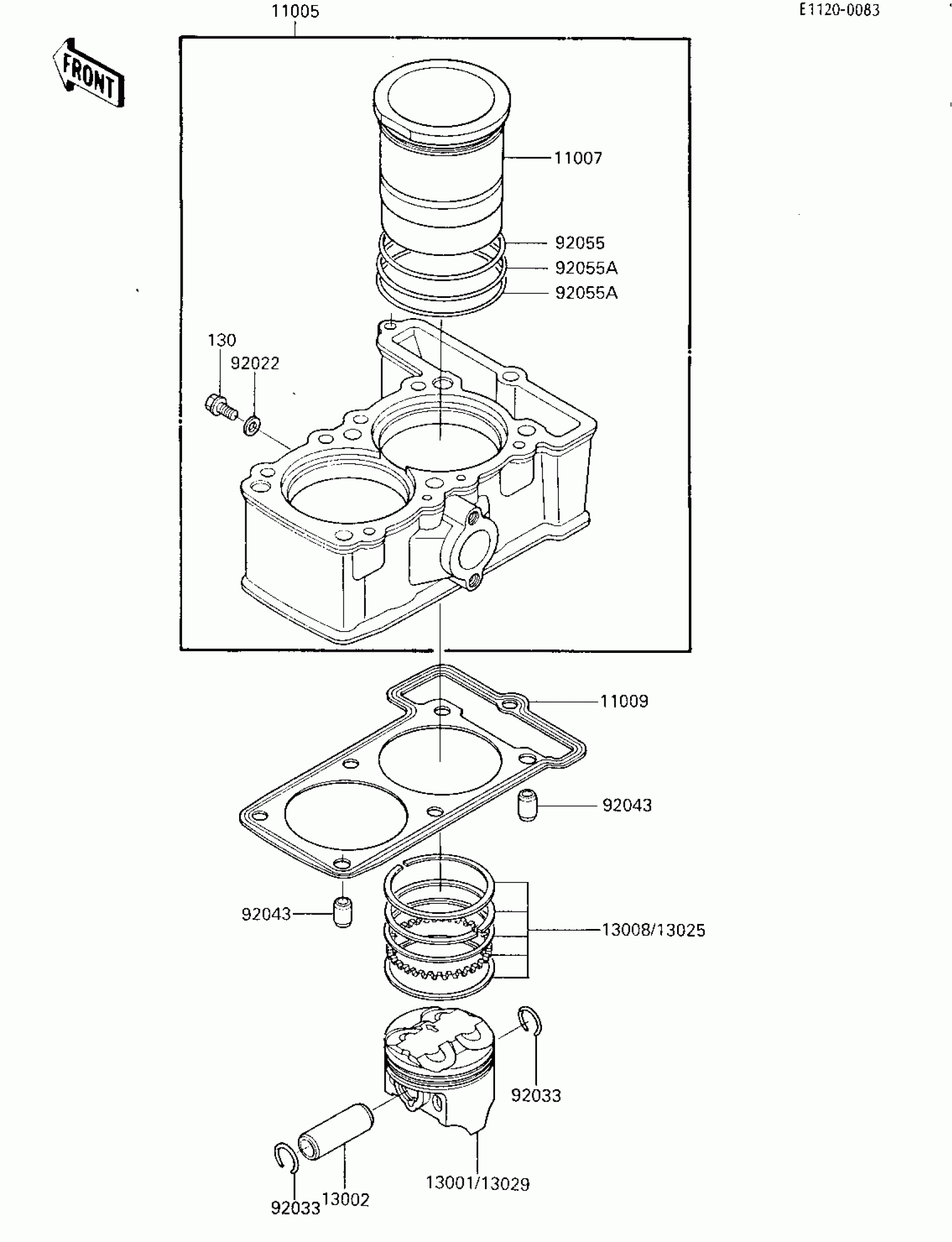

Kawasaki Ninja® 250R CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1623

$879.15

11007

LINER-CYLINDER

11007-1085

Unavailable

11009

GASKET,CYLINDER BASE

11009-1572

$37.56

13001

PISTON-ENGINE,STD

13001-1227

Unavailable

13002

PIN-PISTON

13002-1062

Unavailable

13008

RING-SET-PISTON,STD

13008-1157

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1074

Unavailable

13029

PISTON-ENGINE L,O/S,0

13029-1146

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,PISTON PIN

92033-1161

$2.97

92043

BEARING-BALL

92045-1264

$32.65

92055

RING-O,67.5MM

92055-1035

Unavailable

92055A

RING-O,68.2X2.4

92055-1338

$4.85

130

BOLT-FLANGED,6X10

130C0610

Unavailable
