1987 Kawasaki Ninja® 1000R Chassis Electrical Equipment Diagram

← All diagrams

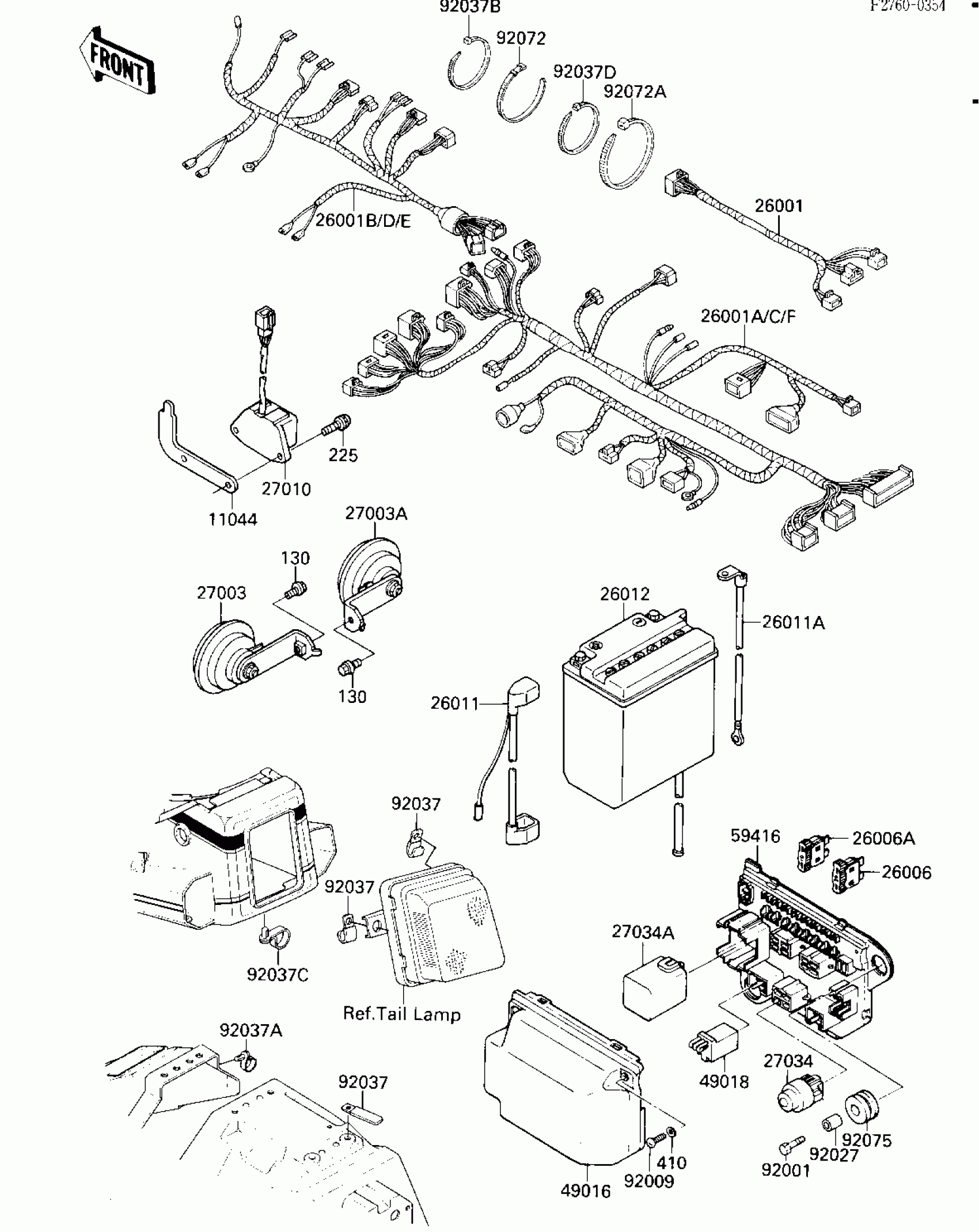

Find the part on the Chassis Electrical Equipment diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26001

HARNESS,RR

26001-1735

1
Out of stock

26001D

HARNESS,FR

26001-1765

1
Out of stock

26001F

HARNESS,MAIN

26001-1851

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26006A

FUSE,BLADE,10A,RED

26006-1007

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1322

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1323

1
Out of stock

26012

YUA BAT YB14L-A2 (K)

26012-1119

1
Out of stock

27003

HORN,LH

27003-1299

1
Out of stock

27003A

HORN,RH

27003-1300

1
Out of stock

27010

SWITCH,RESERV LIGHTING

27010-1066

1
Out of stock

27034

RELAY,STARTER

27034-1006

1
Out of stock

27034A

RELAY,FLASHER

27034-1007

1
Out of stock

49016

COVER-SEAL

49016-1050

1
Out of stock

49018

DIODE

49018-1006

1
Out of stock

59416

CASE-ELECTRIC

59416-1056

1
Out of stock

92001

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92009

SCREW,TAPPING,4X10

92009-1021

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92037A

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037B

CLAMP

92037-1173

1
Out of stock

92037C

CLAMP,SPEED,L=43

92037-1290

1
Out of stock

92037D

CLAMP,L=200

92037-1576

1
Out of stock

92072

BAND,L=186

92072-056

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92075

DAMPER

92075-1562

1
Out of stock

130

BOLT-FLANGED,8X14

130G0814

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock

410

WASHER PLAIN 4MM

410B0400

1
Out of stock
