1987 Kawasaki Ninja® 1000R Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

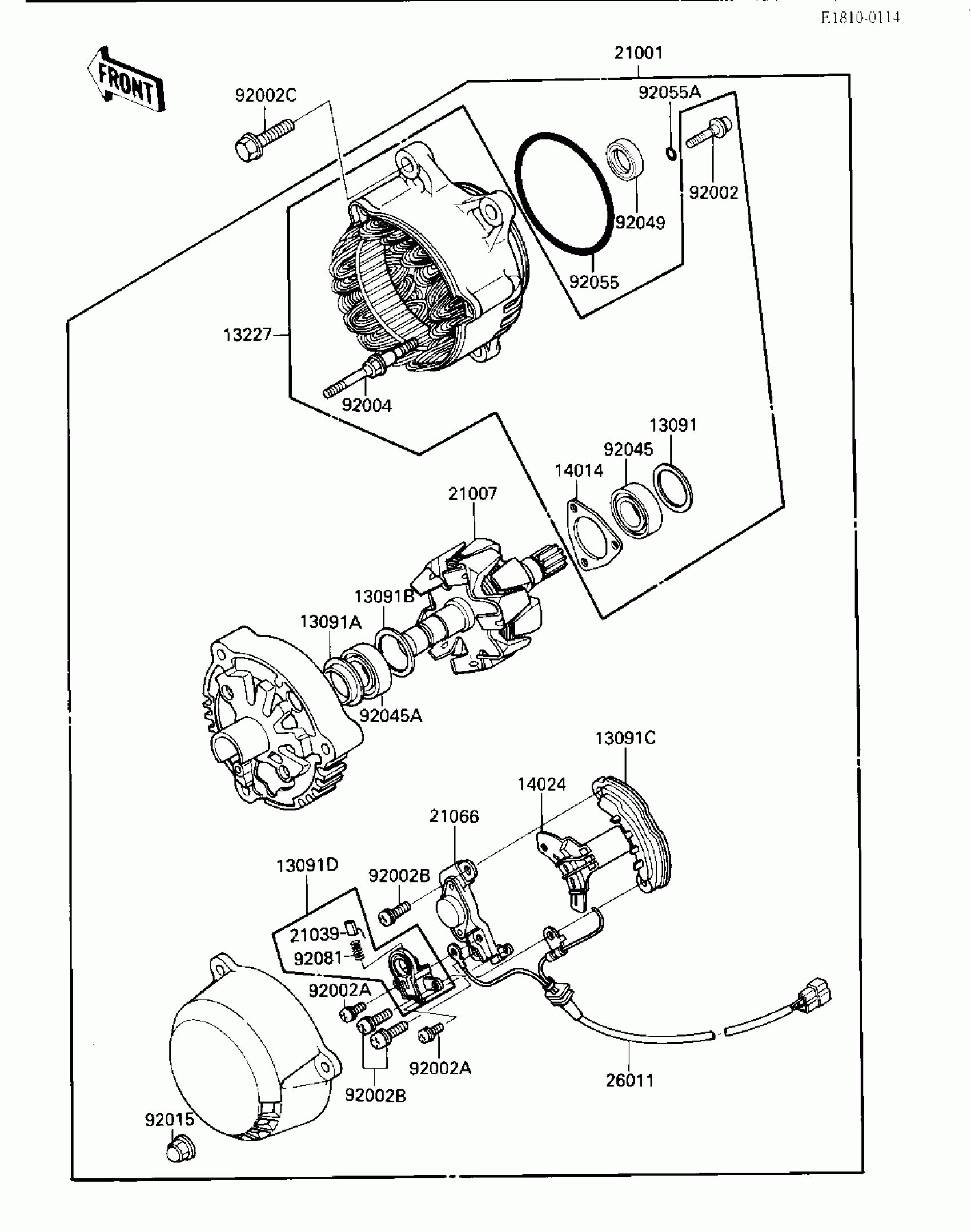

1987 Kawasaki Ninja® 1000R Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,BEARING

13091-1326

1

$13.64

In stock

13091A

HOLDER,COVER

13091-1327

1

$18.17

In stock

13091B

HOLDER,BEARING

13091-1328

1

$12.90

In stock

13091C

RECTIFIER

13091-1329

1
Out of stock

13091D

HOLDER,BRUSH

13091-1330

1
Out of stock

13227

HOUSING,GENERATOR

13227-1054

1
Out of stock

14014

PLATE-POSITION

14014-1065

1
Out of stock

14024

COVER,RECTIFIER

14025-1942

1

$10.61

In stock

21001

GENERATOR

21001-1105

1

$1,313.88

In stock

21007

ROTOR,GENERATOR

21007-1123

1

$558.87

In stock

21039

BRUSH,CARBON

21039-1052

1

$29.01

In stock

21066

REGULATOR-VOLTAGE

21066-1056

1

$424.45

In stock

26011

WIRE-LEAD,GENERATOR

26011-1287

1

$89.46

In stock

92002

SCREW

92002-1856

1
Out of stock

92002A

SCREW,4X8

92002-1379

1

$4.61

In stock

92002B

SCREW,5X17.5

92002-1380

1

$4.46

In stock

92002C

BOLT,8X32

92002-1400

1
Out of stock

92004

STUD

92004-1196

1
Out of stock

92015

NUT,CAP

92015-1458

1

$2.20

In stock

92045

BEARING-BALL,#6002

92045-1132

1
Out of stock

92045A

1

$54.40

In stock

92049

SEAL-OIL

92049-1200

1
Out of stock

92055

RING-O,67.6MM

92055-1263

1
Out of stock

92055A

RING-O,3.5MM

92055-1264

1

$3.21

In stock

92081

SPRING,BRUSH

92081-1759

1

$7.88

In stock
