1987 Kawasaki Ninja® 1000R Starter Motor Diagram

← All diagrams

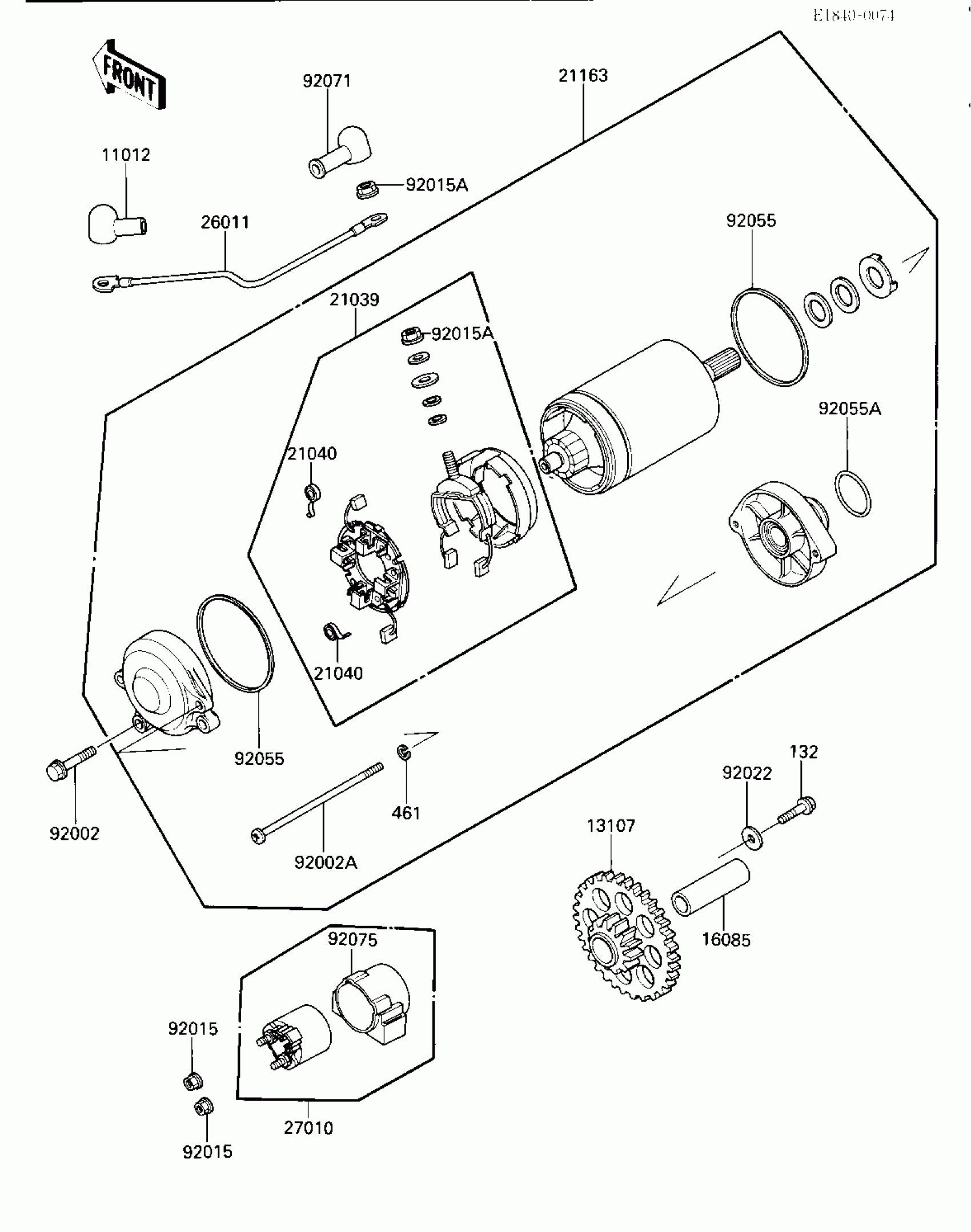

Find the part on the Starter Motor diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13107

SHAFT,IDLE GEAR

13107-1106

1

$15.76

In stock

16085

GEAR,IDLE

16085-1104

1

$138.23

In stock

21039

BRUSH,CARBON

21039-1053

1

$96.05

In stock

21040

SPRING-BRUSH

21040-1003

1

$9.12

In stock

21163

STARTER-ELECTRIC

21163-1078

1
Out of stock

26011

WIRE-LEAD,MOTOR

26011-1316

1

$65.87

In stock

27010

SWITCH,MAGNETIC

27010-1235

1

$158.23

In stock

92002

BOLT,6X20

92001-1947

1

$3.46

In stock

92002A

BOLT

92002-1560

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92055

RING-O,64MM

92055-1086

1

$9.68

In stock

92055A

RING-O

92055-1276

1

$7.86

In stock

92071

1

$7.48

In stock

92075

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock
