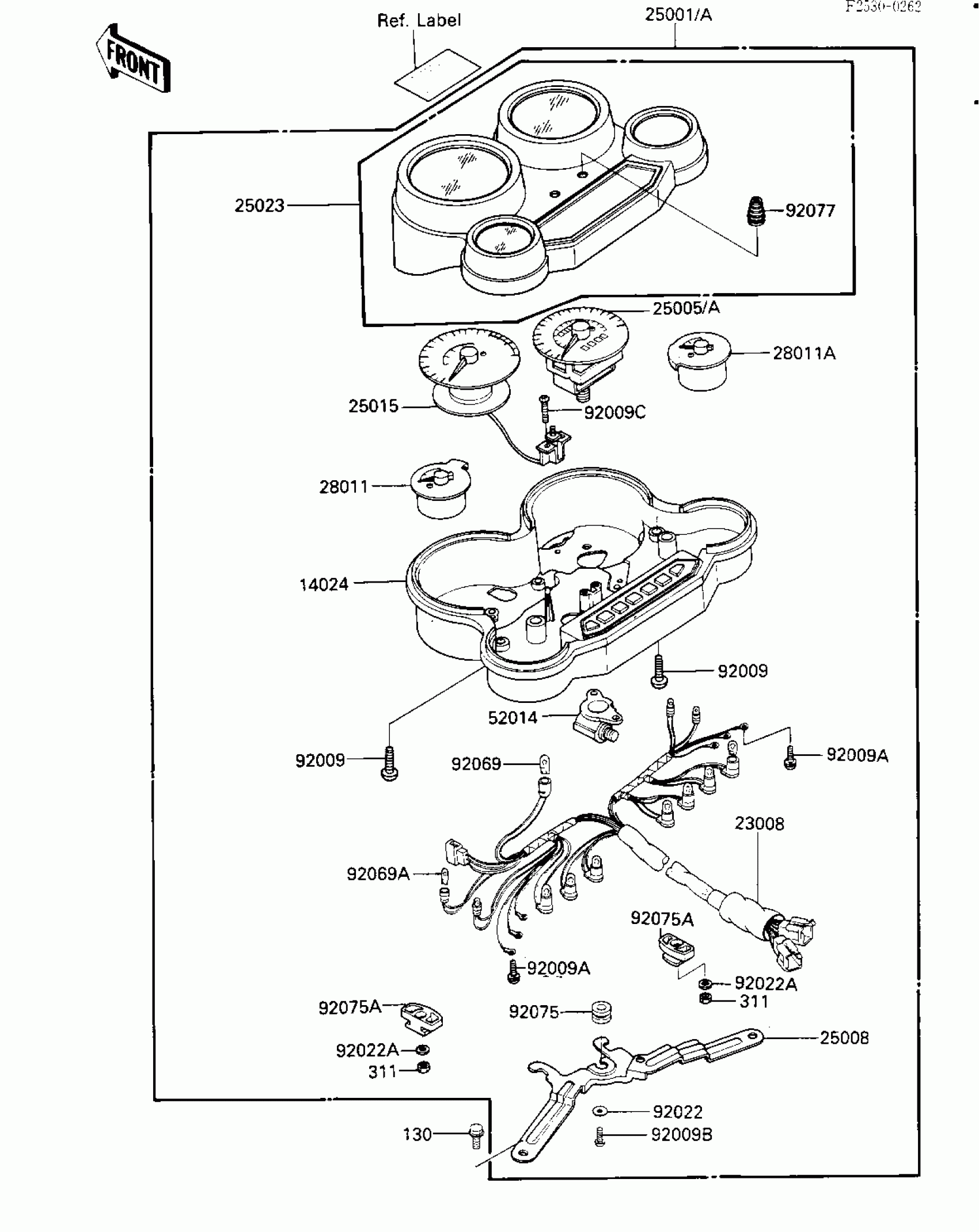

Find the part on the Meters diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Meters Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER HOUSING

14025-1877

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1229

1

$146.34

In stock

25001

METER-ASSY,MPH

25001-1600

1

$882.47

In stock

25001A

METER-ASSY,KPH (Canada)

25001-1601

1
Out of stock

25005

SPEEDOMETER,MPH

25005-1302

1

$206.39

In stock

25005A

SPEEDOMETER,KPH (Canada)

25005-1303

1
Out of stock

25008

BRACKET-METER

25008-1119

1

$48.96

In stock

25015

1

$361.76

In stock

25023

COVER-METER CASE

25023-1127

1
Out of stock

28011

METER,FUEL

28011-1062

1

$85.69

In stock

28011A

METER,TEMP

28011-1070

1

$85.69

In stock

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

1
Out of stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92009A

SCREW,3X22

92009-1293

1
Out of stock

92009B

SCREW,3X12

92009-1326

1
Out of stock

92009C

SCREW,TAPPING,2.6X12

92009-1330

1
Out of stock

92022

WASHER,3MM

92022-1374

1
Out of stock

92022A

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92075

DAMPER

92075-1435

1

$5.11

In stock

92075A

1

$12.20

In stock

92077

1

$7.88

In stock

130

BOLT-FLANGED,6X14

130C0614

1
Out of stock

311

NUT-HEX

311B0500

1

$0.51

In stock
