1979 Yamaha MX175 (MX175F) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

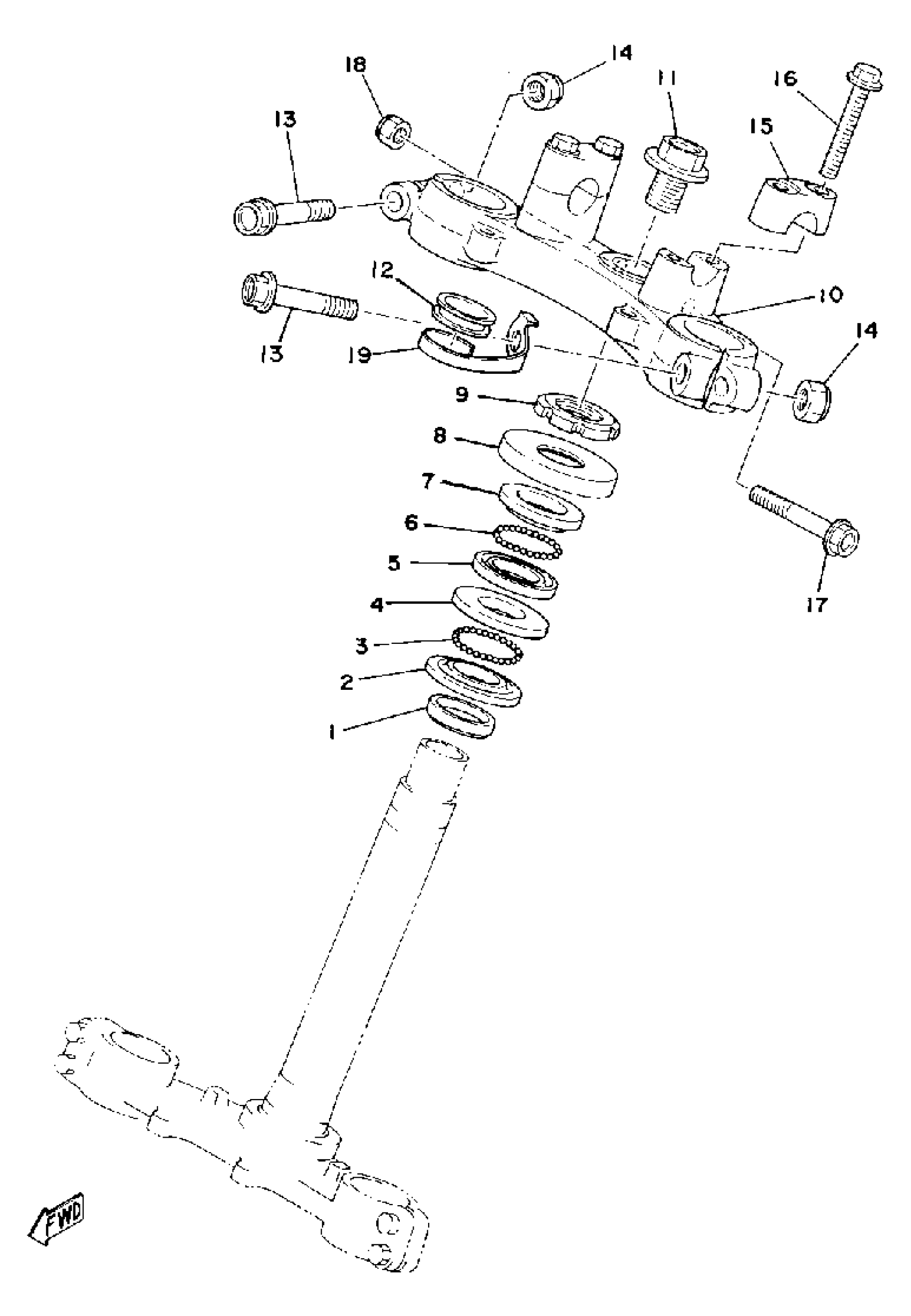

1979 Yamaha MX175 (MX175F) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

8

COVER BALL RACE

10V-23416-01-00

—
Out of stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

CROWN, HANDLE

2N4-23435-00-98

1
Out of stock

11

1

$3.91

In stock

12

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

13

BOLT, FLANGE

95817-10060-00

1
Out of stock

14

1

$6.02

In stock

15

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

16

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

17

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

18

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

19

HOLDER, CABLE

2K5-23317-01-00

1
Out of stock
