1979 Yamaha MX175 (MX175F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

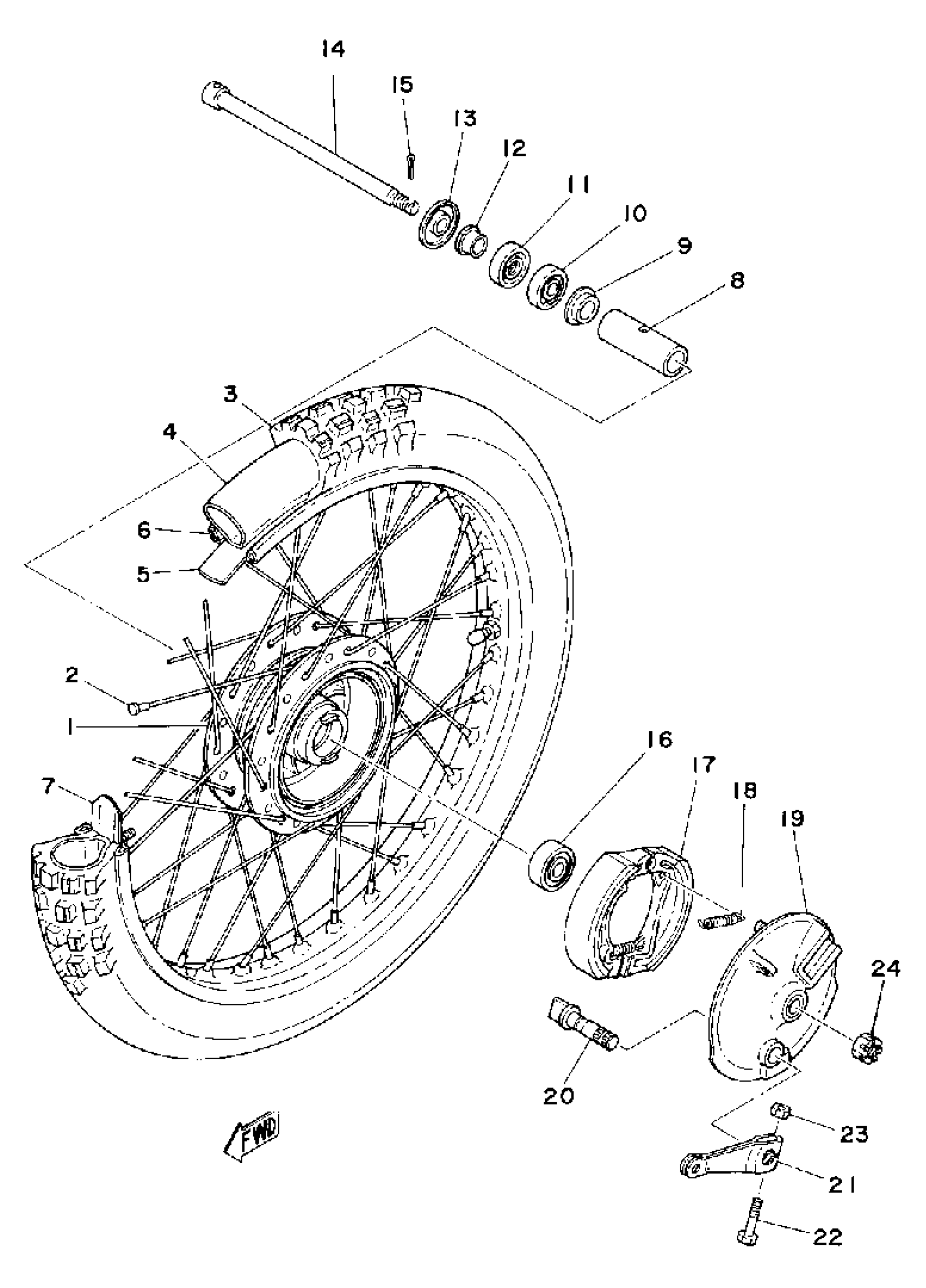

1979 Yamaha MX175 (MX175F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

SPOKE SET, FRONT

3M2-25104-00-00

1
Out of stock

3

275X21 IRC MX45

(94127-21287-00)

1
Out of stock

4

TUBE

94230-21126-00

1
Out of stock

5

BAND, RIM

(94330-21088-00)

1
Out of stock

6

RIM 1.60X21

94416-21223-00

1
Out of stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

BEARING

93306-30102-00

1
Out of stock

11

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

12

COLLAR (462)

90387-12265-00

1

$12.85

In stock

13

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

14

SHAFT, WHEEL

353-25381-00-00

1

$22.37

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

BEARING

93306-30102-00

1
Out of stock

17

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

18

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

19

PLATE, BRAKE SHOE

2K5-25121-01-98

1
Out of stock

20

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

21

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

22

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

NUT 3532518200

90171-10004-00

—

$5.32

In stock
