1979 Yamaha MX175 (MX175F) C - D - I - Magneto Diagram

← All diagrams

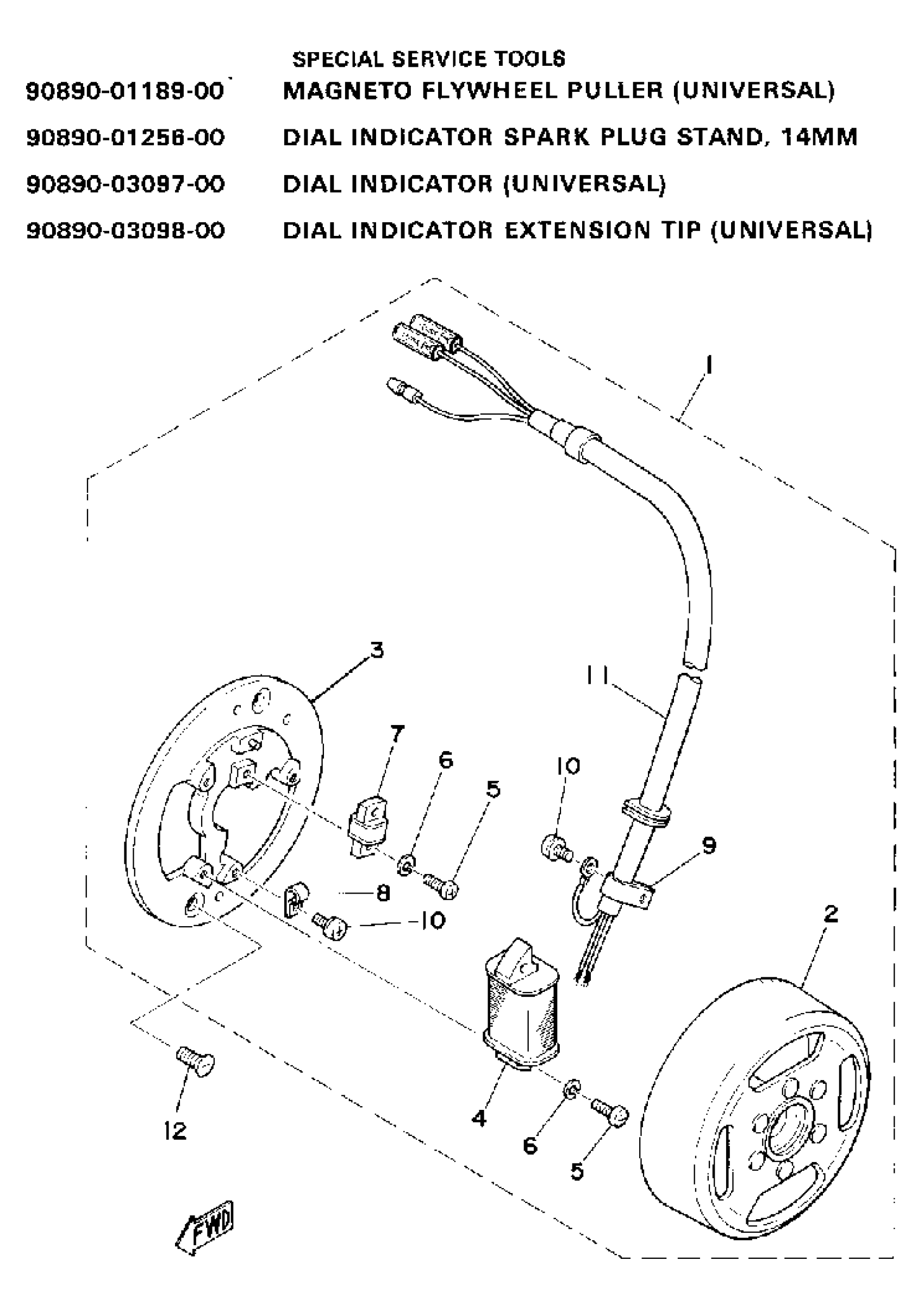

Find the part on the C - D - I - Magneto diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX175 (MX175F) C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(3M2-85500-20-00)

1
Out of stock

2

. ROTOR ASSEMBLY

3M2-85550-20-00

1
Out of stock

3

. BASE, MAGNETO

3M2-85509-21-00

1
Out of stock

4

. COIL, SOURCE

3M2-85512-20-00

1
Out of stock

5

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

. COIL, PULSER

3M2-85580-20-00

1
Out of stock

8

CLAMP, LEAD

(445-85528-20-00)

1
Out of stock

9

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

10

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

11

. LEAD WIRE ASSEMBLY

3M2-85515-20-00

1
Out of stock

12

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
