1979 Yamaha MX175 (MX175F) Stand-Footrest-Branke Pedal Diagram

← All diagrams

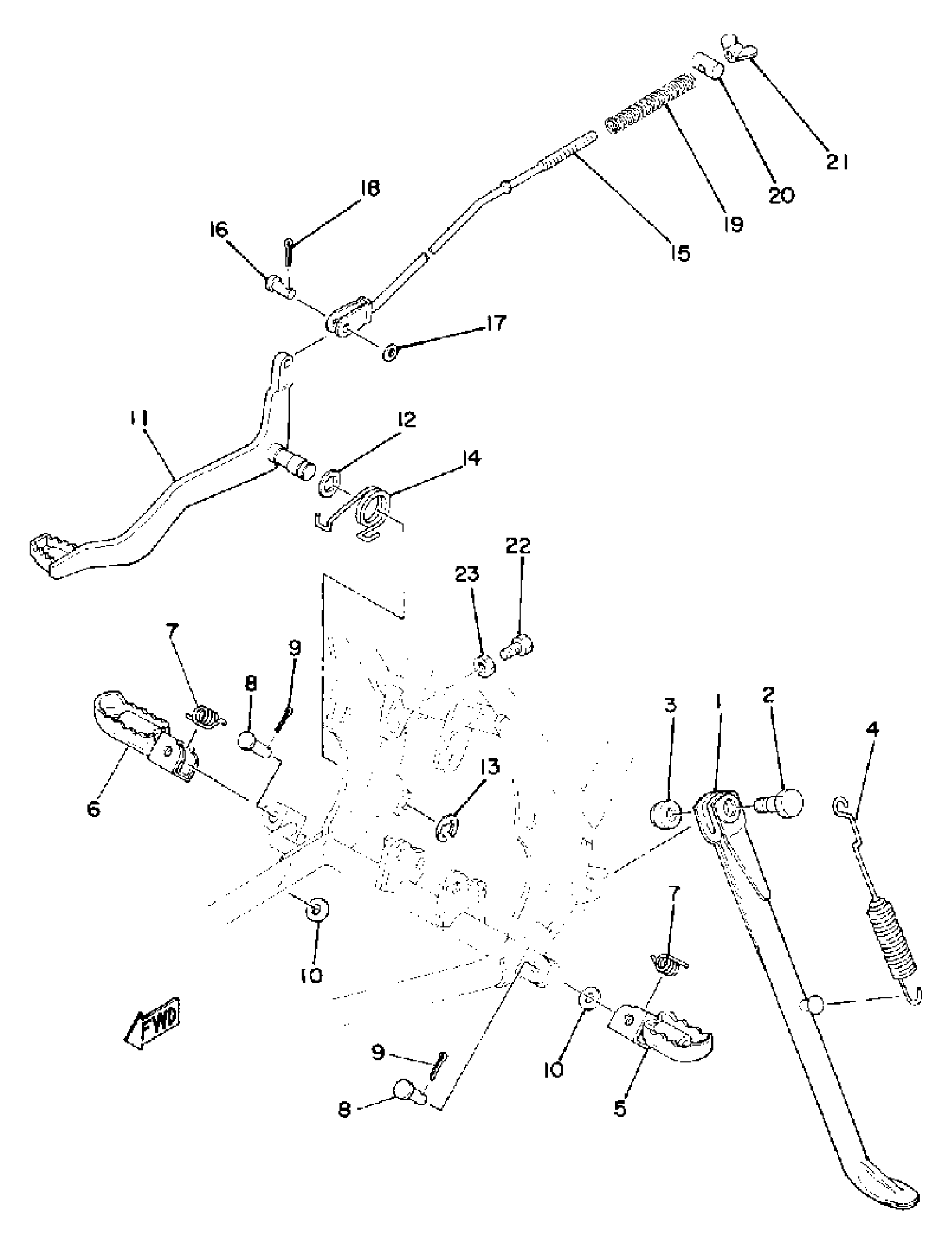

Find the part on the Stand-Footrest-Branke Pedal diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX175 (MX175F) Stand-Footrest-Branke Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, SIDE

1W1-27311-10-00

1
Out of stock

2

BOLT

90109-10473-00

1

$6.71

In stock

3

NUT, U

90185-10037-00

1

$6.68

In stock

4

SPRING (434)

90507-29008-00

1
Out of stock

5

FOOTREST 1

22W-27411-01-90

1
Out of stock

6

FOOTREST 2

22W-27421-01-90

1

$29.63

In stock

7

1

$3.26

In stock

8

PIN, CLEVIS (2A6)

91701-08038-00

1

$3.91

In stock

9

PIN, COTTER

91490-25020-00

1

$2.94

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

PEDAL, BRAKE

2A6-27211-00-00

1
Out of stock

12

WASHER PLATE 611441260000

90201-14212-00

1
Out of stock

13

CIRCLIP (137)

93430-10015-00

1
Out of stock

14

SPRING, TENSION (2A6)

90508-32354-00

1
Out of stock

15

ROD, BRAKE

1W2-27231-00-00

1
Out of stock

16

PIN, WITH HOLE (248-27228-00)

90240-06006-00

—
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

PIN, COTTER

91490-25020-00

1

$2.94

In stock

19

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

20

PIN 1562723700

90249-12008-00

—

$4.70

In stock

21

NUT (25K)

90179-06411-00

—

$5.10

In stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

NUT(650)

95380-06700-00

—

$6.17

In stock
