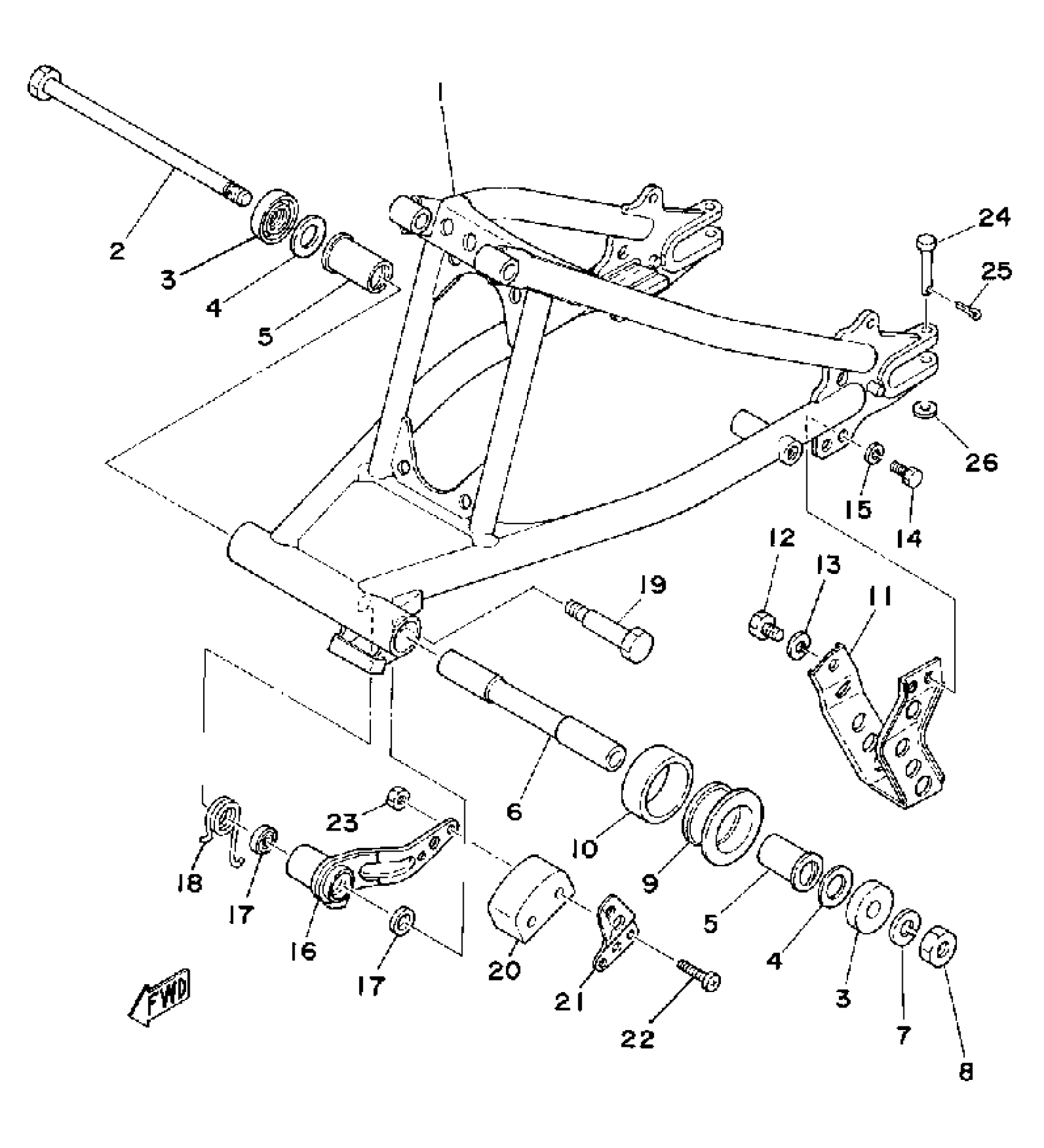

Find the part on the Rear ARM diagram for your 1979 Yamaha MX175 (MX175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX175 (MX175F) Rear ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(3M2-22110-00-33)

1
Out of stock

2

SHAFT, PIVOT

2N4-22141-00-00

1
Out of stock

3

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

4

SHIM

401-22127-00-00

1

$6.62

In stock

5

BUSHING (401-22123-00)

90386-18028-00

1

$21.40

In stock

6

BUSH 2

18G-22124-00-00

—

$41.17

In stock

7

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

8

NUT, SELF-LOCKING(1KH)

90185-12134-00

1

$10.11

In stock

9

SEAL, GUARD

2A6-22151-00-00

1

$7.37

In stock

10

SEAL, GUARD 2

2A6-22152-00-00

1

$5.26

In stock

11

GUARD, CHAIN

2A6-22318-00-00

—
Out of stock

12

BOLT(62E)

97013-08012-00

—

$2.48

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

ARM, TENSIONER

2A6-22179-01-00

—
Out of stock

17

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

18

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock

19

BOLT (1J4)

90109-10483-00

—

$8.28

In stock

20

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

1
Out of stock

21

GUIDE, CHAIN

1W1-22187-00-00

—
Out of stock

22

SCREW, PAN

98507-05035-00

—

$6.69

In stock

23

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

24

PIN, CLEVIS (1M1)

91701-06042-00

—

$5.32

In stock

25

PIN, COTTER

91490-20025-00

—

$1.31

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
