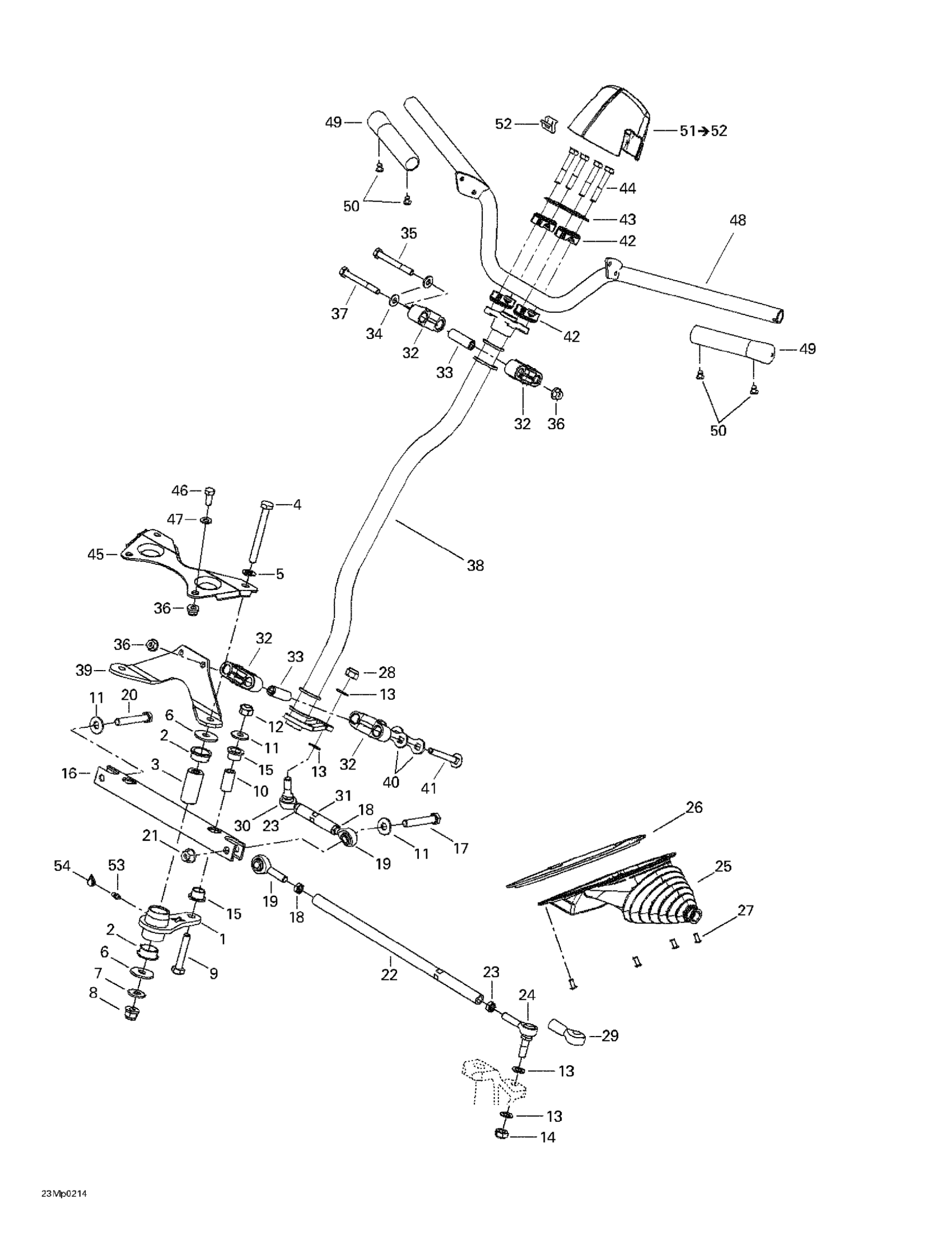

Ski-Doo MX Z 800 Rev, 2002 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151327

Unavailable

LH Swivel Arm

506151543

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

$2.63

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

$5.49

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

$15.00

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

$1.25

15

Swivel Bushing

503191555

$5.71

16

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

17

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

18

LH Threaded Hex. Jam Nut M10

250100016

$0.72

19

LH Ball Joint

506151325

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Flange Elastic Nut M10

233201414

$1.26

22

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.72

24

RH Ball Joint

506151326

Unavailable

25

RH Tie-Rod Cap

506151725

$40.74

LH Tie-Rod Cap

506151726

$40.74

26

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

27

Pop Rivet 3/16"

390402200

$0.26

28

Elastic Flange Nut M10

232501416

$1.25

29

Protection Cap

570151000

$18.43

30

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

31

Tie-Rod

506151619

Unavailable

32

Housing Half

506150400

$7.31

33

Housing Bushing

506150500

$7.49

34

Washer

503189157

$3.20

35

Hex. Screw M8 X 70

207087044

$1.73

36

Hex. Flange Elastic Nut M8

233281414

$1.14

37

Hex. Screw M8 X 80

207088044

$1.58

38

Main Tube

506151334

Unavailable

39

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

40

Stopper Plate

506150600

$4.15

41

Carriage Bolt M8 X 70

207787044

$1.11

42

Steering Support

709400919

$20.74

43

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

44

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

45

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

46

Hex. Screw M8 X 20

207182044

$0.61

47

Flat Washer 8 mm

234081410

$0.69

48

Handlebar

506151538

Unavailable

49

Grip | WAKE This part replaces M5340464.

506152483

$9.85

50

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

51

Cap | Includes 51 - 52.

506151482

Unavailable

52

Edge Clip

517302785

$0.70

53

Grease Fitting

408200700

$2.80

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
