2002 Ski-Doo MX Z 800 Rev Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

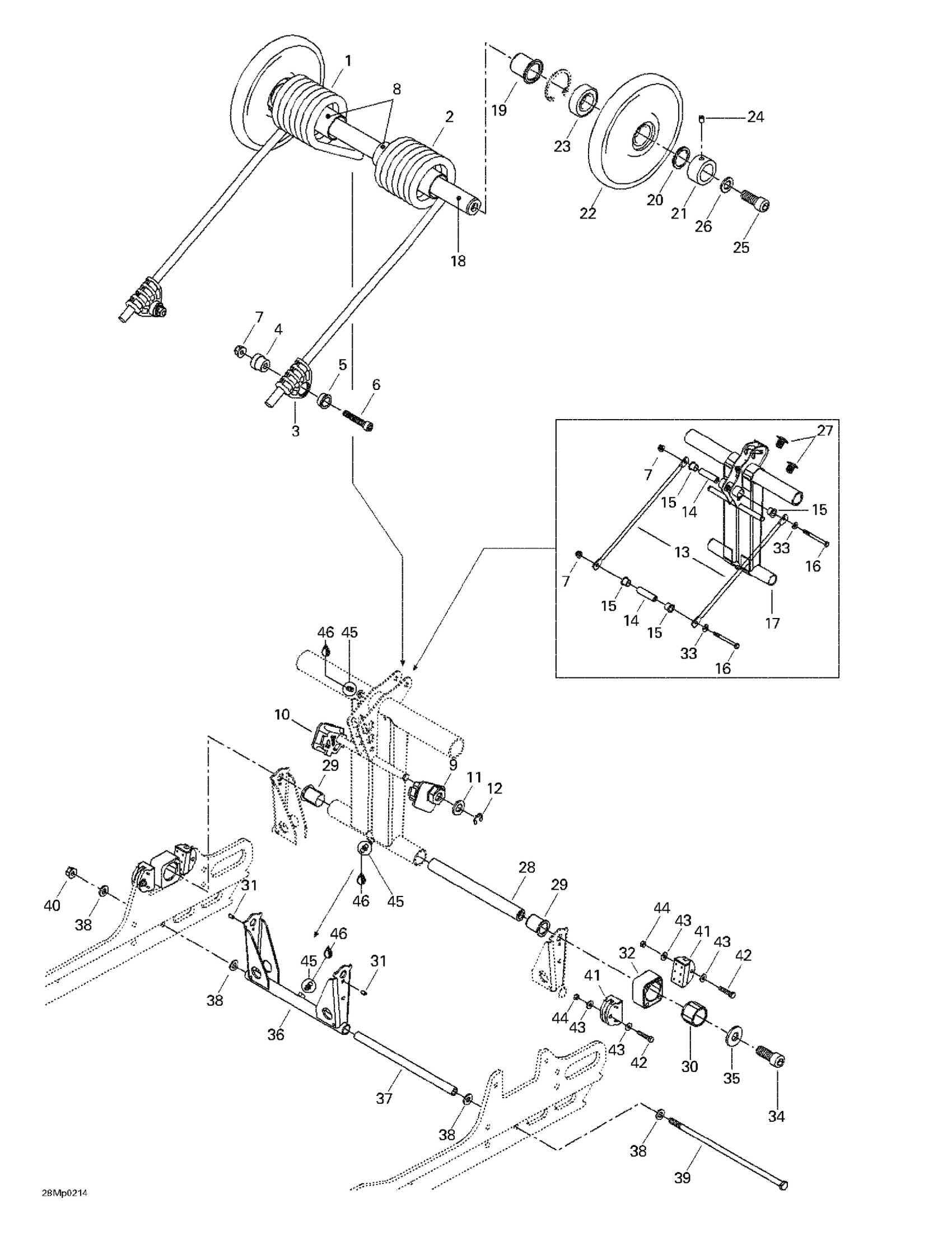

2002 Ski-Doo MX Z 800 Rev Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RH Spring | Legend SE 800 SDI.

503189947

—
Out of stock

2

LH SPRING - Call your local BRP dealership | Legend SE 800 SDI.

503189948

—
Out of stock

3

Spring Support

503189657

2
Out of stock

4

Spring Guide Axle

503188934

—
Out of stock

5

CUSHION RETAINER - Call your local BRP dealership

503188929

—
Out of stock

6

Socket Head Screw M8 X 45

205084544

2
Out of stock

7

Hex. Flange Elastic Nut M8

233281414

4
Out of stock

8

PLASTIC BUSHING - Call your local BRP dealership

503189105

—
Out of stock

9

LH Cam Adjuster

503189773

—
Out of stock

10

RH Cam Adjuster

503189774

—
Out of stock

11

Flat Washer 12 mm

234021410

2
Out of stock

12

E-Circlip

293370013

2
Out of stock

13

THROTTLE ROD - Call your local BRP dealership

503189726

—
Out of stock

14

AXLE ROD - Call your local BRP dealership

503189815

—
Out of stock

15

ROD CUSHION - Call your local BRP dealership

503189861

—
Out of stock

16

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

—
Out of stock

17

Rear Arm (GS, Sport) | Legend 500. Legend 600. Legend 700.

503189848

—
Out of stock

18

Upper Axle

503189412

—
Out of stock

19

CUSHION - Call your local BRP dealership

503189288

—
Out of stock

20

Axle Spring

503189146

2
Out of stock

21

Retainer Ring

503189147

—
Out of stock

22

Wheel 165 Ass'y | Includes 25 - 26.

503189187

—
Out of stock

23

Ball Bearing

293350115

2
Out of stock

24

Socket Set Screw M6 X 8

206260844

2
Out of stock

25

Socket Head Screw M12 X 35, Scotch Grip

205523544

2
Out of stock

26

Washer

503189276

2
Out of stock

27

Black, Dart

414644300

2
Out of stock

28

REAR LOWER AXLE - Call your local BRP dealership

503189413

—
Out of stock

29

Cushion

503191640

2
Out of stock

30

Block Guide

503189488

2
Out of stock

31

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

—
Out of stock

32

LH Block

503189152

—
Out of stock

RH Block

503189170

—
Out of stock

33

FLAT WASHER - Call your local BRP dealership

224081201

—
Out of stock

34

Socket Head Screw M12 X 35, Scotch Grip

205523544

2
Out of stock

35

Washer

503189276

2
Out of stock

36

PIVOT ARM - Call your local BRP dealership

503189819

—
Out of stock

37

Pivot Arm Axle

503189156

1
Out of stock

38

Washer

503189157

4
Out of stock

39

Bolt M8 X 248mm

503192440

1
Out of stock

40

Hex. Flange Elastic Nut M8

233281414

1
Out of stock

41

Rubber Stopper

503191291

4
Out of stock

42

Hex. Screw M5 X 30

207053044

4
Out of stock

43

Washer

250200016

8
Out of stock

44

Elastic Stop Nut M5

232551414

4
Out of stock

45

Grease Fitting

408200700

3
Out of stock

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock
