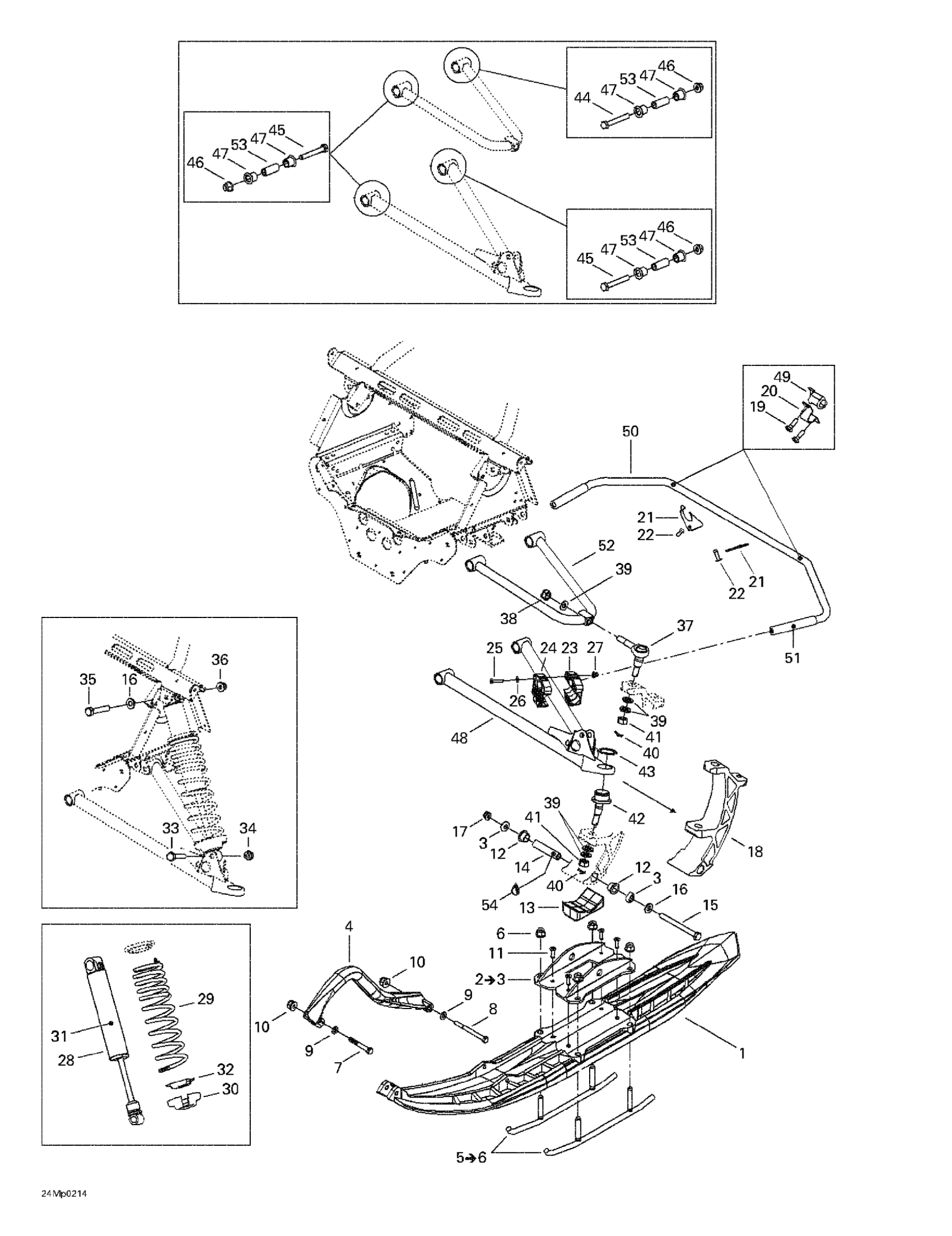

Ski-Doo MX Z 800 Rev, 2002 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

$106.69

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Handle Kit, Yellow

860506400

Unavailable

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$135.79

6

Hex. Flange Elastic Nut M10

233201414

$1.45

7

Hex. Screw M8 X 50

207085044

$1.43

8

Hex. Screw M8 X 90

207089044

$3.24

9

Flat Washer 8 mm

234081410

$0.79

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

$5.75

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

$19.37

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

$0.55

17

Flange Nut M10

732610084

$6.30

18

Ski Leg

505070582

Unavailable

19

Hex. Screw M8 X 20

207182044

$0.70

20

CLAMP - Call your local BRP dealership

506095800

Unavailable

21

Plug

505070874

Unavailable

22

Pop Rivet 3/16"

390406500

$0.81

23

RH HALF SLIDER - Call your local BRP dealership

505070667

Unavailable

24

LH Half Slider

505070668

Unavailable

25

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

26

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

27

Hex. Flange Elastic Nut M5

233251414

$1.91

28

Front Shock

505070910

Unavailable

29

Spring | ADRENALINE. EUROPE-ADRENALINE MX Z 500.

505070852

Unavailable

30

Spring Stopper

706200881

$11.82

31

Shock Decal

516000183

Unavailable

32

Cap

706200785

$4.28

33

Hex. Screw M10 X 55

207005544

$2.12

34

Elastic Locking Nut M10 X 1.5

233601416

$1.63

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

36

Hex. Flange Elastic Nut M10

233201436

$2.00

37

Upper Ball Joint

505072257

$16.39

38

Hex. Flange Elastic Nut M12

250000047

$1.79

39

Flat Washer 12 mm

234021410

$0.66

40

Cotter Pin

211400017

$0.28

41

Hex. Castellated Nut M12

232221414

$3.00

42

Lower Ball Joint

505070627

Unavailable

43

Circlip (32 mm)

293370018

Unavailable

44

Screw M10 x 80

250000097

Unavailable

45

Hex. Screw M10 X 70

207007044

$2.18

46

Hex. Flange Elastic Nut M10

233201414

$1.45

47

Arm Bushing

505070566

$3.04

48

RH Lower Arm

505070585

Unavailable

LH Lower Arm

505070591

Unavailable

49

LH BUSHING, 5/8? - Call your local BRP dealership

505070665

Unavailable

RH BUSHING, 5/8 - Call your local BRP dealership

505070881

Unavailable

50

Stabilisator, 5/8”

505070659

Unavailable

51

STABILISATOR BOOT, 5/8? - Call your local BRP dealership

505070750

Unavailable

52

Upper Arm

505070613

Unavailable

53

Bushing

505070567

$19.37

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
