2002 Ski-Doo MX Z 800 Rev Front ARM Diagram

← All diagrams

Find the part on the Front ARM diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

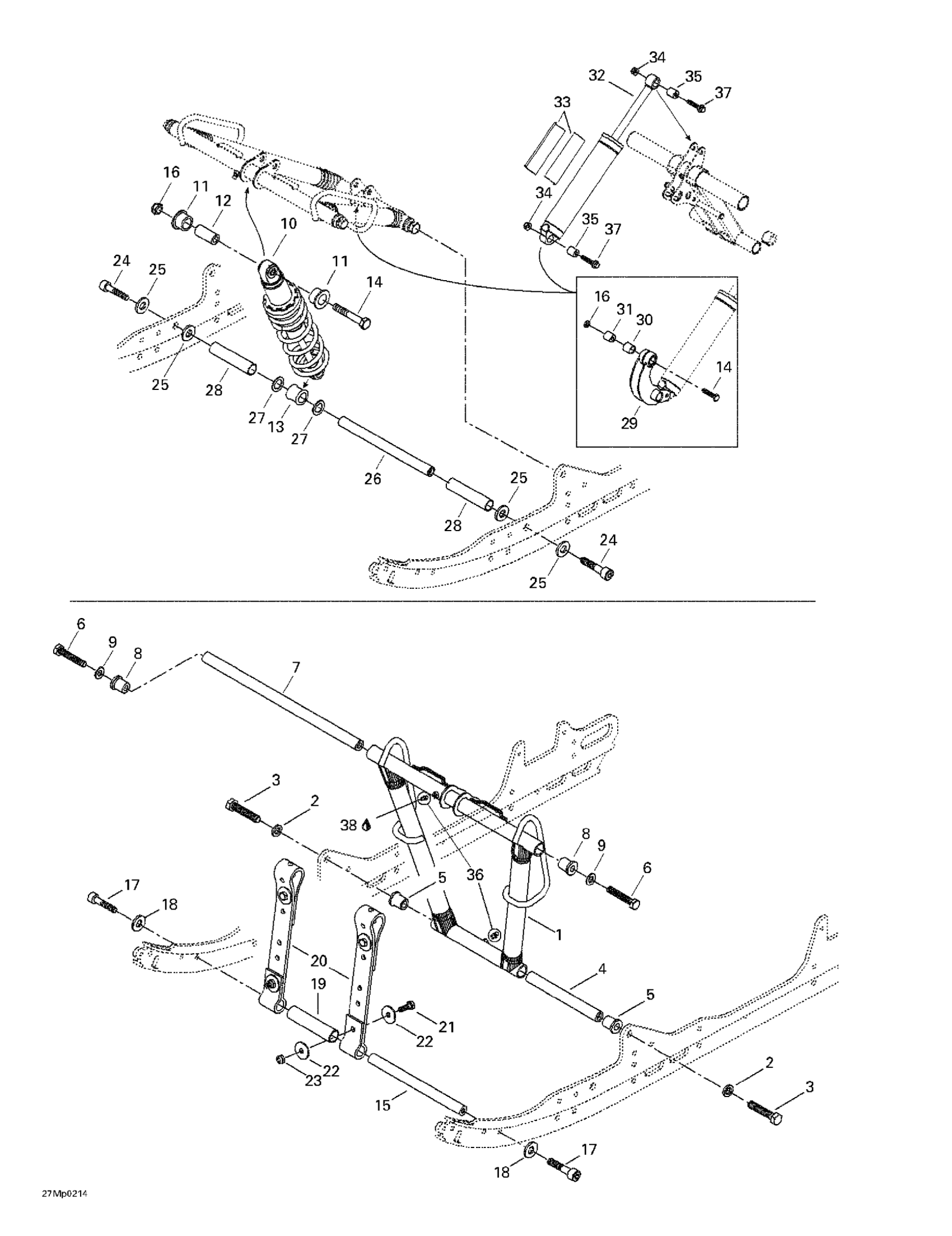

2002 Ski-Doo MX Z 800 Rev Front ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Front Arm

503189292

—
Out of stock

2

Washer

503189276

2
Out of stock

4

SHAFT - Call your local BRP dealership

503189313

—
Out of stock

5

CUSHION - Call your local BRP dealership

503189323

—
Out of stock

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

2
Out of stock

7

SHAFT - Call your local BRP dealership

503190387

—
Out of stock

8

Bushing

503189324

2
Out of stock

9

Washer

732900049

2
Out of stock

10

Center Shock

503189968

—
Out of stock

11

Urethane Bushing

503189117

2
Out of stock

12

Bushing | Includes 240d to 240d1

503189282

1
Out of stock

13

Bushing

503189271

1
Out of stock

14

Hex. Screw M10 X 1.5 X 50

207005044

2
Out of stock

15

AXLE - Call your local BRP dealership

503189562

—
Out of stock

16

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

17

Socket Head Screw M10 X 35, Scotch Grip

205503544

2
Out of stock

18

Washer

503189564

2
Out of stock

19

Spacer

503189265

1
Out of stock

20

STOPPER STRAP - Call your local BRP dealership

503190782

—
Out of stock

21

Hex. Screw M8 X 25

207182544

4

$0.74

In stock

22

Flat Washer

224081301

8
Out of stock

23

Hex. Elastic Stop Nut M8

232581414

4
Out of stock

24

Socket Head Screw M12 X 35, Scotch Grip

205523544

2
Out of stock

25

Washer

503189276

4
Out of stock

26

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

—
Out of stock

27

Washer

503189273

2
Out of stock

28

SPACER - Call your local BRP dealership

503189274

—
Out of stock

29

Rocker

503189845

—
Out of stock

30

Rocker Axle

503189388

—
Out of stock

31

CUSHION - Call your local BRP dealership

503189626

—
Out of stock

32

Center Shock

503189968

—
Out of stock

33

Shock Decal

516000183

—
Out of stock

34

Hex. Flange Elastic Nut M8

233281414

2
Out of stock

35

Bushing

414936000

2
Out of stock

36

Grease Fitting

408200700

2
Out of stock

37

Hex. Flange Screw M8 X 40

207684044

2
Out of stock

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock
