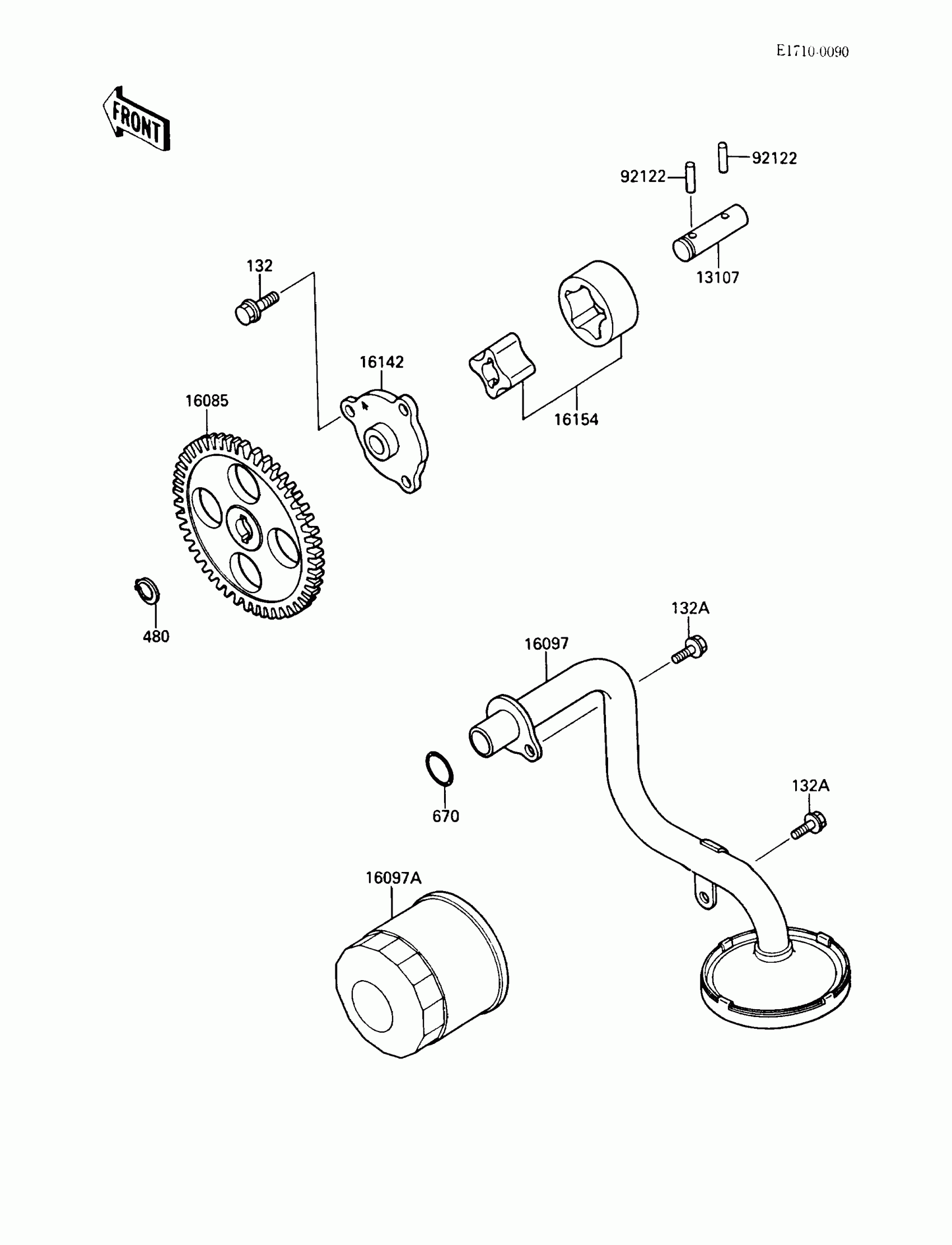

Kawasaki Mule 1000 Oil Pump/Oil Filter Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

670

O RING,18MM

670D2018

$1.39

13107

SHAFT,PUMP

13107-1217

Unavailable

16085

GEAR,PUMP,50T

16085-1203

Unavailable

16097

FILTER-ASSY-OIL

16097-1057

$24.15

16097A

FILTER-ASSY-OIL

16097-1064

$11.00

16142

COVER-PUMP

16142-1082

Unavailable

16154

ROTOR-PUMP

16154-1073

$24.76

92122

ROLLER,3X15.8

92122-1126

$3.53
