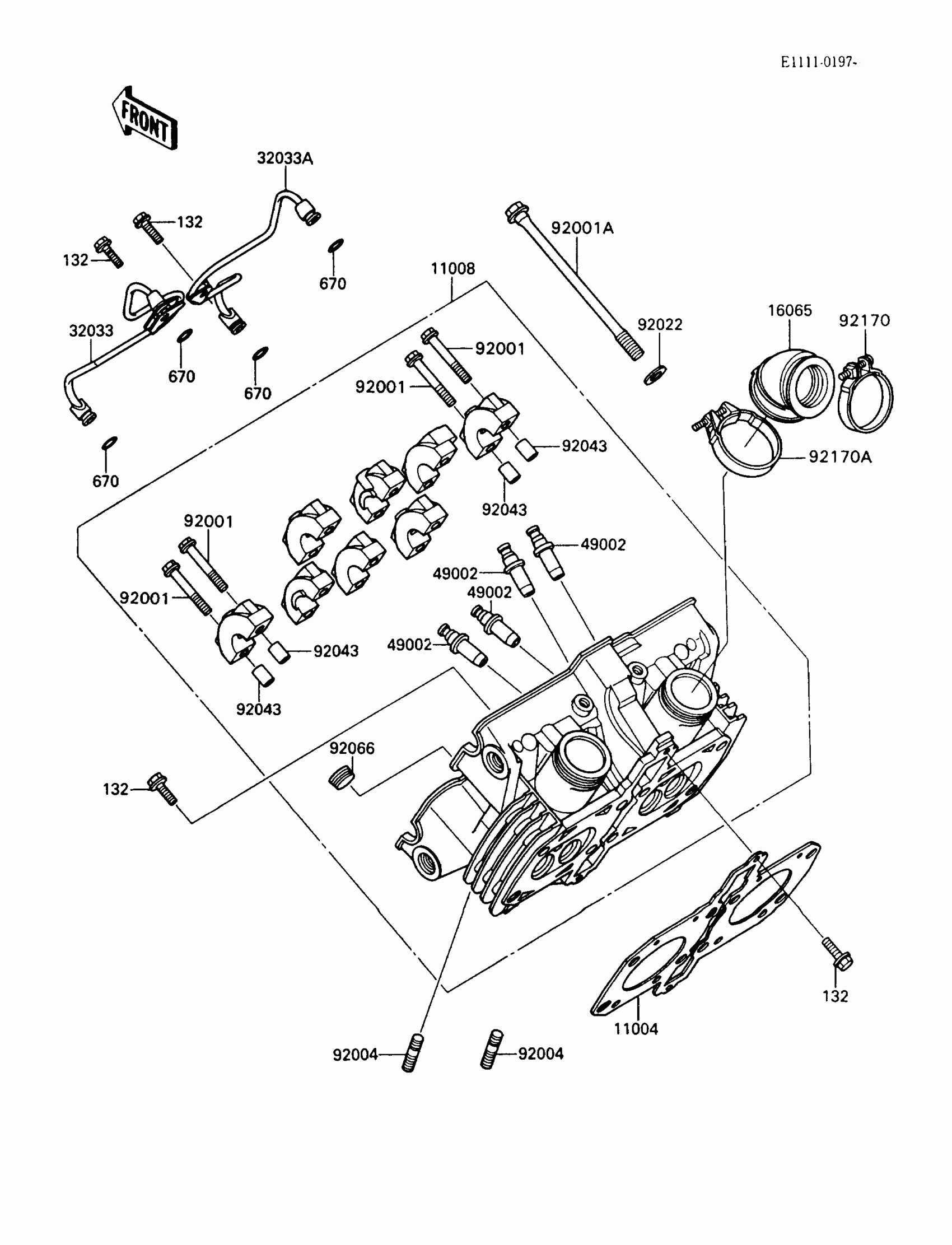

Kawasaki Mule 1000 Cylinder Head Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

670

O RING,7MM

670D1507

$1.24

11004

GASKET-HEAD

11004-1159

$50.03

11008

HEAD-COMP-CYLINDER

11008-1230

Unavailable

16065

HOLDER-CARBURETOR

16065-1164

Unavailable

32033

PIPE,OIL,LH

32033-1527

$66.82

32033A

PIPE,OIL,RH

32033-1528

$66.82

49002

GUIDE-VALVE

49002-1052

$38.92

92001

BOLT,6X46

92001-1872

$3.29

92001A

BOLT,10X164

92001-1886

$14.49

92004

STUD,8X25

92004-1008

$2.46

92022

WASHER,10.5X20X1.6

92022-1591

$3.88

92043

PIN,6.2X8X14

92043-1263

$0.46

92066

PLUG,PT1/2X12.5

92066-1253

$6.85

92170

CLAMP

92170-1318

$8.64

92170A

CLAMP

92170-1319

Unavailable
