2007 Kawasaki Mule 1000 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2007 Kawasaki Mule 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

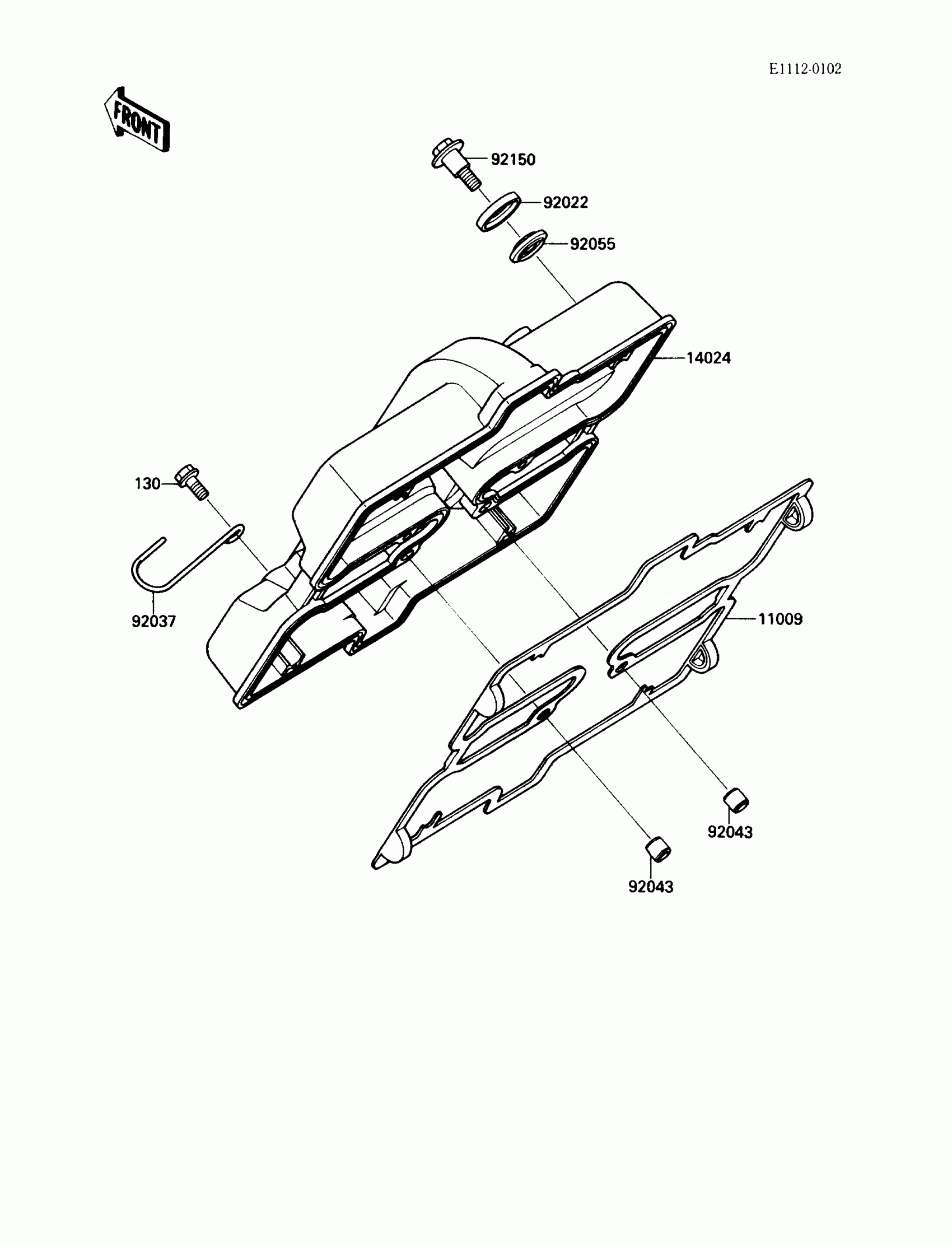

2007 Kawasaki Mule 1000 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

11009

GASKET,CYLINDER HEAD COVER

11009-1483

1
Out of stock

14024

COVER,CYLINDER HEAD

14024-1397

1
Out of stock

92022

WASHER,HEAD COVER BOLT

92022-1487

1
Out of stock

92037

CLAMP,CABLE

92037-1831

1
Out of stock

92043

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-1225

1
Out of stock

92150

BOLT,FLANGED,6X23.5

92150-1447

1
Out of stock
← Cylinder Head Cylinder/piston →
