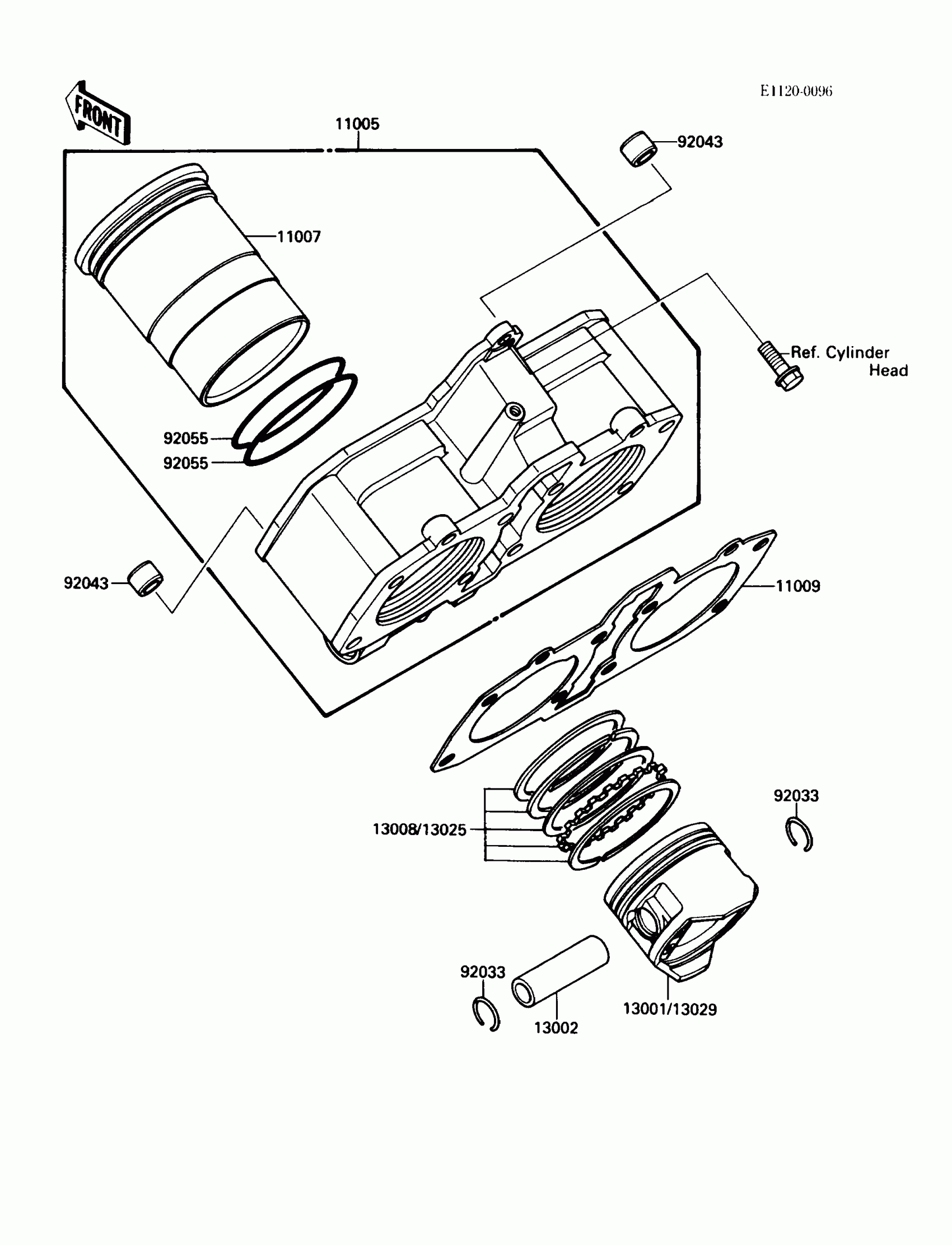

Kawasaki Mule 1000 Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-1535

Unavailable

11007

LINER-CYLINDER

11007-1079

Unavailable

11009

GASKET,CYLINDER BASE

11009-1640

$43.21

13001

PISTON-ENGINE,STD

13001-1206

Unavailable

13002

PIN-PISTON,12X18X57.2

13002-1023

$21.26

13008

RING-SET-PISTON,STD

13008-1053

$70.20

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55

92043

PIN,11X14X12.3

92043-1266

$0.86

92055

RING-O,79.5MM

92055-1230

$6.19

13025

RING-SET-PISTON L,O/S 0.50

13025-1053

$80.31

13029

PISTON-ENGINE L,O/S 0.50

13029-1168

Unavailable
