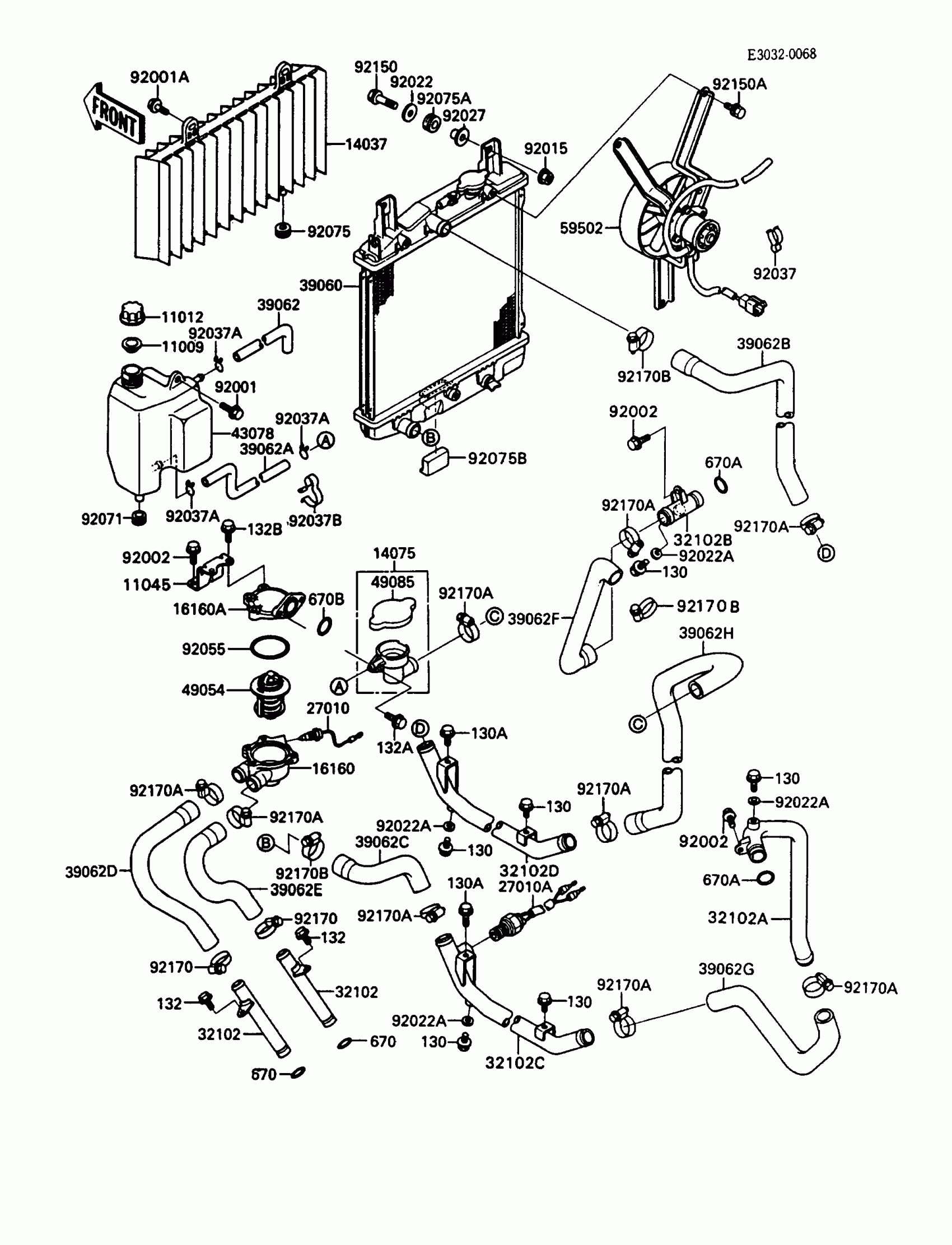

Kawasaki Mule 1000 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11045

BRACKET,THERMOSTAT

11045-1941

Unavailable

14037

SCREEN

14037-1095

Unavailable

14075

CAP-ASSY,RADIATOR

14075-1085

$151.81

16160

BODY,THERMOSTAT,LWR

16160-1112

$75.58

16160A

BODY,THERMOSTAT,UPP

16160-1113

$65.05

27010

SWITCH,WARNING

27010-1188

Unavailable

27010A

SWITCH,FAN

27010-1251

Unavailable

32102

PIPE

32102-1473

$33.76

32102A

PIPE,PUMP

32102-1718

Unavailable

32102B

PIPE,CYLINDER

32102-1719

Unavailable

32102C

PIPE,FRAME,LWR,LH

32102-1720

Unavailable

32102D

PIPE,FRAME,LWR,RH

32102-1824

$77.35

39060

RADIATOR

39060-1080

$599.48

39062

HOSE-COOLING

39062-1125

$21.40

39062A

HOSE-COOLING

39062-1258

$38.54

39062B

HOSE-COOLING,RADIATOR INLET

39062-1260

Unavailable

39062C

HOSE-COOLING,RADIATOR OUTLET

39062-1261

Unavailable

39062D

HOSE-COOLING,HEAD-THERMO,LH

39062-1262

Unavailable

39062E

HOSE-COOLING,HEAD-THERMO,RH

39062-1263

Unavailable

39062F

HOSE-COOLING,PUMP-CYLINDER

39062-1264

Unavailable

39062G

HOSE-COOLING,PIPE LH-PUMP PIPE

39062-1265

Unavailable

39062H

HOSE-COOLING,THERMO-PIPE RH

39062-1266

Unavailable

43078

RESERVOIR

43078-1072

Unavailable

49054

THERMOSTAT

49054-1059

$62.23

49085

CAP-ASSY-PRESSURE

49085-1062

$33.19

59502

FAN-ASSY

59502-1074

$612.43

92001

BOLT,W/P,6X16

92001-1860

$3.85

92001A

BOLT,6X16

92001-1950

$3.29

92002

BOLT,6X12

92002-1569

Unavailable

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$4.07

92022

WASHER,8.5X26X1.6

92022-092

$3.85

92022A

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$7.83

92037

CLAMP,AIR VENT HOSE

92037-1092

$7.08

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,HOSE

92037-1689

Unavailable

92055

RING-O,44.7X2.4

92055-1279

$5.61

92071

GROMMET

92071-1115

$4.14

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132B

BOLT-FLANGED-SMALL

132G0620

Unavailable

670

O RING,14MM

670B2014

$0.93

670A

O RING,18MM

670B2018

$1.08

670B

O RING,20MM

670B2020

$0.97

92075

DAMPER

92075-161

$3.57

92075A

DAMPER

92075-1898

$3.57

92075B

DAMPER

92075-1990

$5.83

92150

BOLT

92150-1007

$4.25

92150A

BOLT,6X12

92150-1186

$2.56

92170

CLAMP,COOLING HOSE

92170-1033

$11.50

92170A

CLAMP,COOLING HOSE

92170-1034

$16.98

92170B

CLAMP,COOLING HOSE

92170-1284

$6.25
