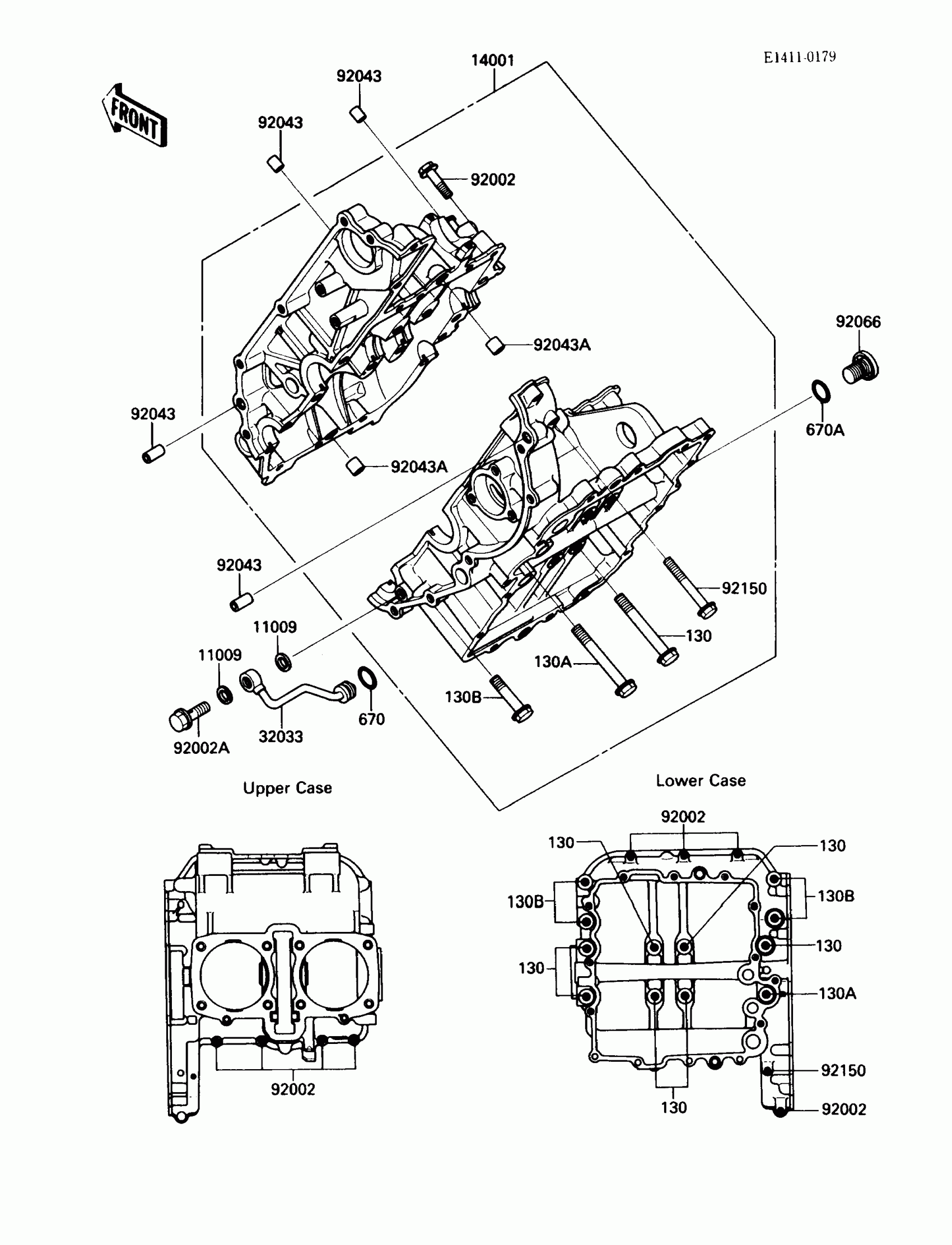

Kawasaki Mule 1000 Crankcase Diagram

Description

Price

130

BOLT-FLANGED

130Z08100

Unavailable

130A

BOLT-FLANGED

130Z08115

Unavailable

130B

BOLT-FLANGED

130Z0875

Unavailable

670

O RING,10MM

670B2010

$1.13

670A

O RING,15MM

670B2015

$1.08

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

14001

SET-CRANKCASE

14001-1064

Unavailable

32033

PIPE

32033-1529

$32.59

92002

BOLT,6X40

92002-1080

$3.59

92002A

BOLT,8X20

92002-1429

$10.63

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,8.2X10X14

92043-1264

$0.51

92066

PLUG,14X11.5

92066-1192

$23.15

92150

BOLT,6X90

92150-1312

Unavailable
