2024 Yamaha MT09 (MT09RL) OIL Cleaner Diagram

← All diagrams

Find the part on the OIL Cleaner diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

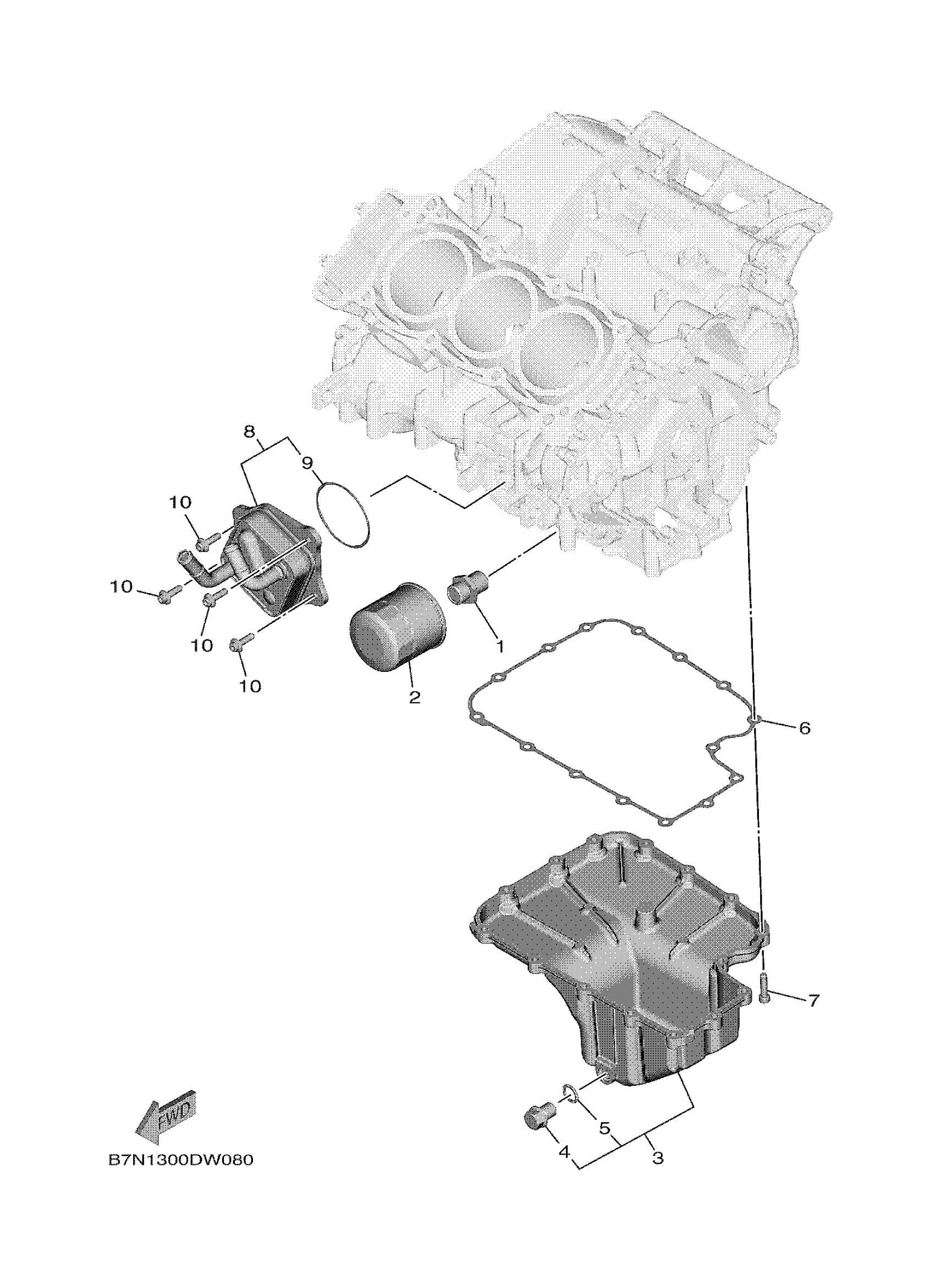

2024 Yamaha MT09 (MT09RL) OIL Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, UNION

BME-12858-00-00

1

$38.49

In stock

2

ELEMENT ASSY, OIL

5GH-13440-90-00

—

$9.69

In stock

3

STRAINER COVER ASS

B7N-13400-01-00

1

$162.08

In stock

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

1

$2.65

In stock

5

GASKET

214-11198-01-00

1

$2.66

In stock

6

GASKET, STRAINER COVER

B7N-13414-01-00

1

$15.62

In stock

7

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

1

$2.31

In stock

8

OIL COOLER ASSY

BS2-13470-10-00

1

$165.00

In stock

9

O-RING

2HC-13473-00-00

1

$6.65

In stock

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

1

$7.45

In stock
