2024 Yamaha MT09 (MT09RL) Camshaft & Chain Diagram

← All diagrams

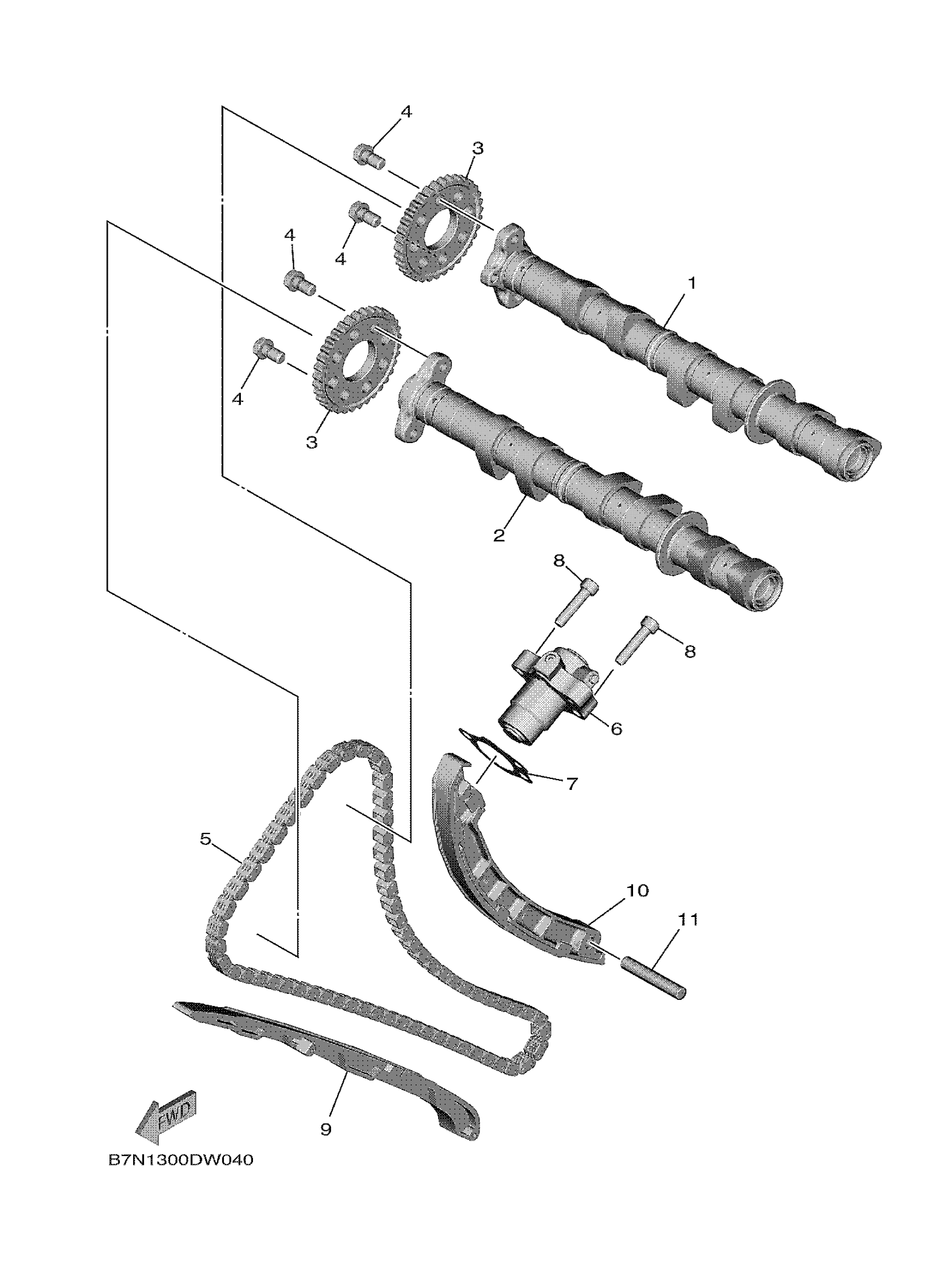

Find the part on the Camshaft & Chain diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Camshaft & Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT ASSY 1

B7N-12170-00-00

1

$294.89

In stock

2

CAMSHAFT ASSY 2

B7N-12180-00-00

1

$295.58

In stock

3

SPROCKET, CAM CHAI

B7N-12176-00-00

1

$50.48

In stock

4

BOLT, FLANGE

90105-07006-00

1

$6.26

In stock

5

CHAIN

94591-78128-00

1

$56.82

In stock

6

TENSIONER ASSY, CAM CHAIN

B7N-12210-01-00

1

$205.80

In stock

7

GASKET, TENSIONER CASE

14B-12213-00-00

1

$6.72

In stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

DAMPER, CHAIN 1

1RC-12251-00-00

1

$25.93

In stock

10

CHAIN DAMPER ASSY

B7N-12250-00-00

1

$40.38

In stock

11

PIN, DOWEL

93607-44002-00

1

$4.25

In stock
