2024 Yamaha MT09 (MT09RL) Crankshaft & Piston Diagram

← All diagrams

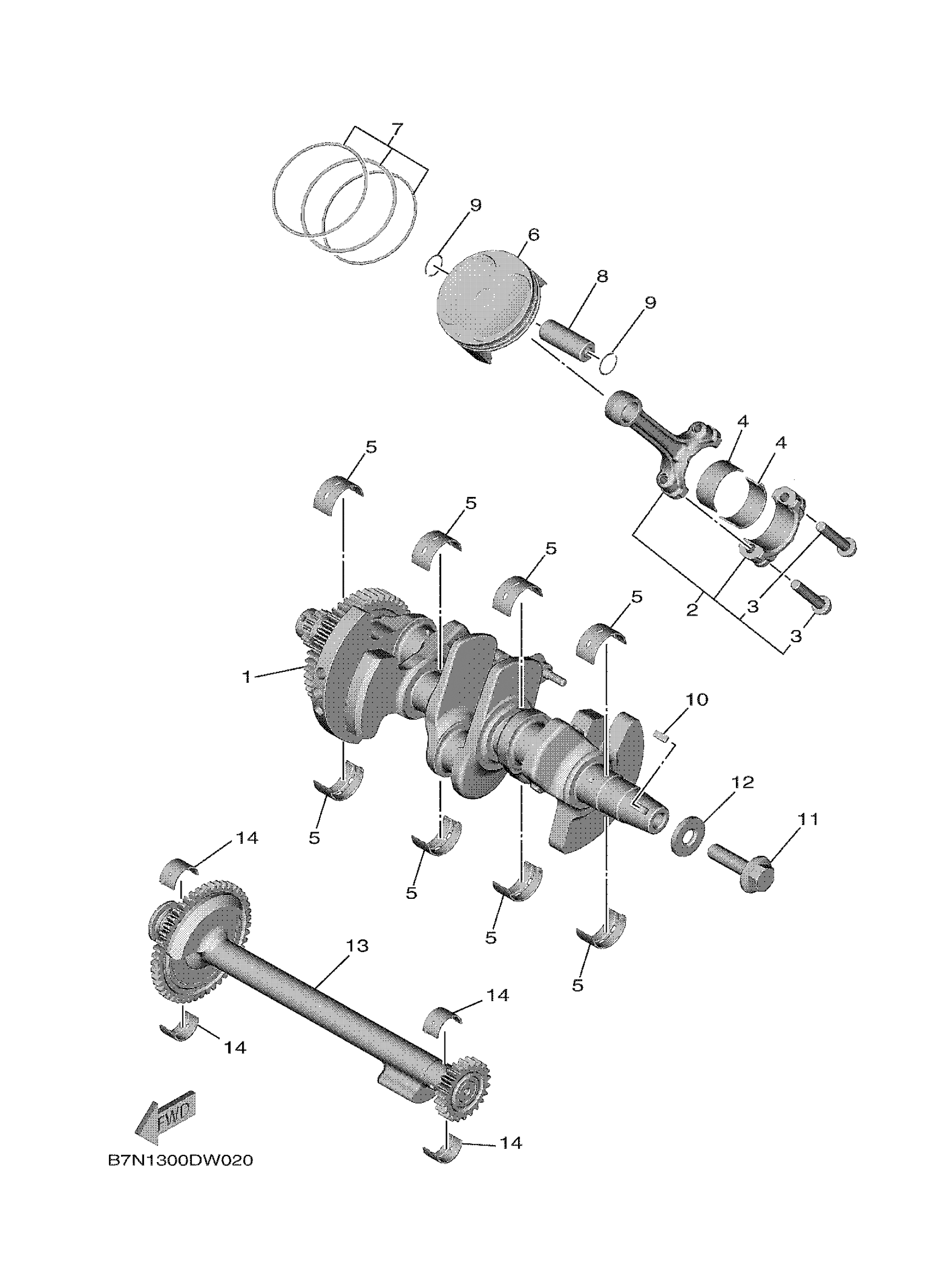

Find the part on the Crankshaft & Piston diagram for your 2024 Yamaha MT09 (MT09RL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha MT09 (MT09RL) Crankshaft & Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

B7N-11400-01-00

1

$603.99

In stock

2

CONNECTING ROD ASS

BME-11650-00-00

1

$90.60

In stock

3

BOLT, CONNECTING ROD

1RC-11654-00-00

1

$2.88

In stock

4

1

$16.14

In stock

4

1

$16.14

In stock

4

1

$16.14

In stock

4

1

$16.14

In stock

5

PLANE BEARING, CRA

BME-11416-00-00

1

$9.94

In stock

5

PLANE BEARING, CRA

BME-11416-10-00

1

$17.18

In stock

5

PLANE BEARING, CRA

BME-11416-20-00

1

$17.18

In stock

5

PLANE BEARING, CRA

BME-11416-30-00

1

$17.18

In stock

5

PLANE BEARING, CRA

BME-11416-A0-00

1

$17.18

In stock

6

PISTON (STD)

B7N-11631-00-00

1

$66.55

In stock

7

PISTON RING SET (S

BME-11603-00-00

1

$15.97

In stock

8

PIN, PISTON

39P-11633-00-00

1

$23.05

In stock

9

CIRCLIP

93450-18157-00

—

$6.23

In stock

10

KEY, WOODRUFF (26H)

90280-05029-00

—

$9.23

In stock

11

BOLT, FLANGE

90105-12032-00

—

$33.29

In stock

12

WASHER, PLATE

90201-12008-00

—

$11.15

In stock

13

BALANCER ASSY

1RC-11500-01-00

—

$380.18

In stock

14

—

$16.97

In stock

14

—

$11.05

In stock

14

—

$11.85

In stock

14

—

$10.26

In stock

14

—

$9.46

In stock
