1980 Kawasaki LTD Ii Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 1980 Kawasaki LTD Ii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

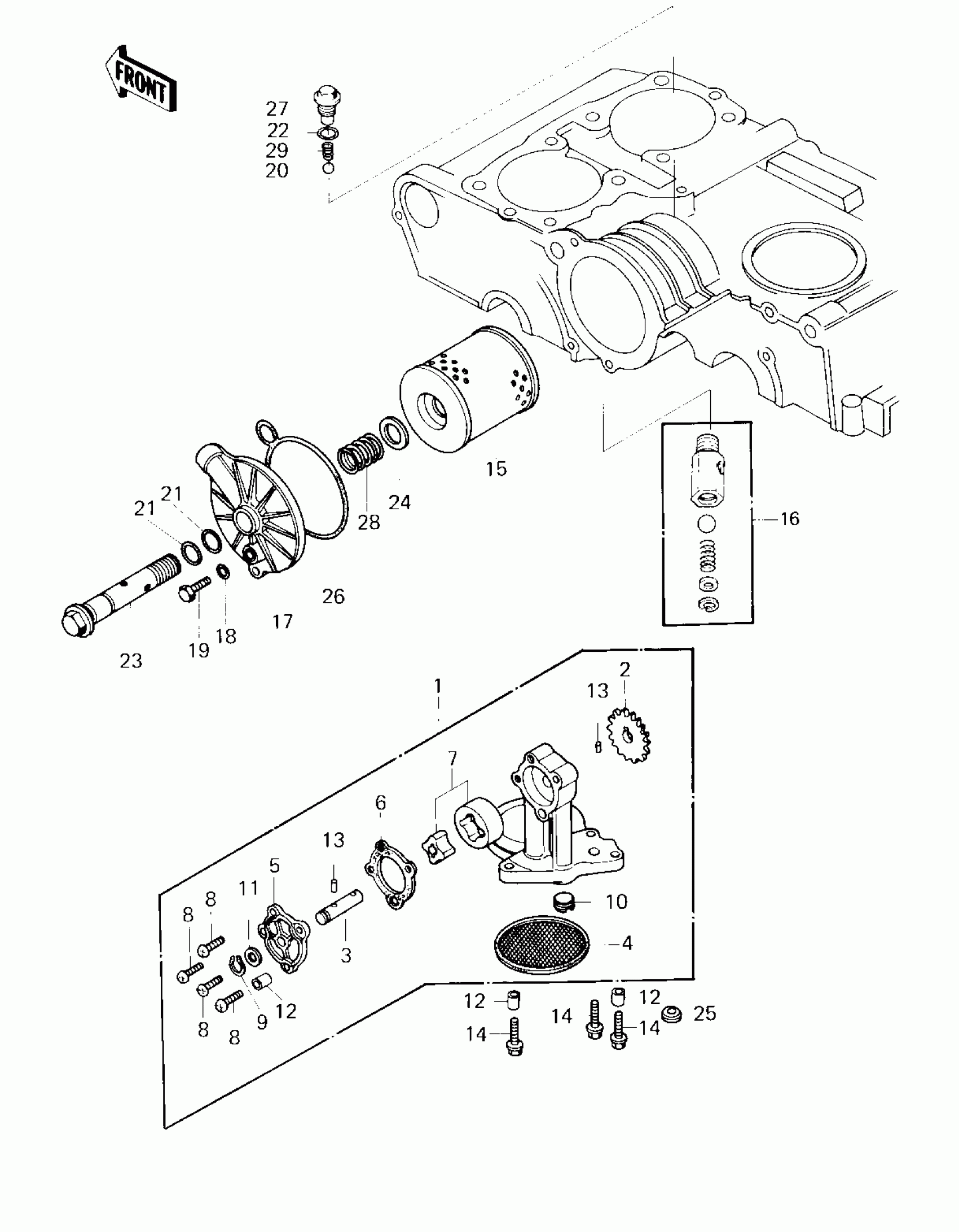

1980 Kawasaki LTD Ii Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

16082-062

1

$291.00

In stock

2

GEAR,OIL PUMP

16085-024

1

$55.32

In stock

3

SHAFT,OIL PUMP

16086-004

1
Out of stock

4

FILTER,OIL PUMP

16111-004

1

$45.22

In stock

5

COVER,OIL PUMP

16142-004

1

$32.12

In stock

6

GASKET,OIL PUMP

16145-003

1

$3.49

In stock

7

ROTOR-PUMP

16154-003

1

$89.99

In stock

8

SCREW PAN HEAD 6X22

220B0622

1
Out of stock

9

1

$0.99

In stock

10

SCREW,SLOTTED

92013-008

1
Out of stock

11

WASHER,11.2X15X1

92022-311

1
Out of stock

12

PIN,DOWEL,8X10

92043-1302

1

$0.97

In stock

13

PIN,DOWEL,4X12.8

92042-041

1

$5.71

In stock

14

BOLT,HEX HEAD,6X41

92003-109

1
Out of stock

15

ELEMENT-OIL FILTER

16099-002

1

$12.81

In stock

16

VALVE-ASSY-RELIEF

16130-1001

1

$41.95

In stock

17

COVER,OIL FILTER

16146-002

1
Out of stock

18

O RING,8MM

670B1508

1

$1.17

In stock

19

PLUG,OIL DRAIN

92066-024

1
Out of stock

20

BALL-STEEL,3/8"

600A1200

1

$1.32

In stock

21

O RING,16MM

670B2016

1

$1.20

In stock

22

O RING,18MM

670B2018

1

$1.25

In stock

23

BOLT,OIL FILTER

92003-189

1
Out of stock

24

WASHER,20.5X30X1

92022-1012

1

$3.46

In stock

25

RING-O,OD=18

92055-048

1

$3.81

In stock

26

"O" RING

92055-084

1
Out of stock

27

PLUG,FILTER COVER

92066-050

1
Out of stock

28

SPRING,OIL FILTER

92081-1018

1

$3.69

In stock

29

SPRING

92081-109

1

$10.85

In stock
